Description

Price

1

BUMPER, FRONT 1

82M-77511-00-00

Unavailable

2

SCREW, W/WASHER (4L0)

90159-06060-00

$8.49

3

BUMPER, REAR 2

87F-77542-00-00

Unavailable

4

SCREW, BIND

98903-08012-00

Unavailable

5

SCREW, BIND(J50)

98980-08020-00

$2.65

6

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

7

BOLT, HEXAGON

97013-08020-00

$1.16

8

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

9

WASHER, PLAIN

92990-08200-00

Unavailable

10

FLAP

8X9-77595-00-00

Unavailable

11

RIVET, BLIND (8R6)

90267-48086-00

$4.14

12

PROTECTOR 1

82M-77551-00-00

Unavailable

13

RIVET (8M6)

90269-04025-00

$8.49

14

PROTECTOR 4

82M-77554-01-00

Unavailable

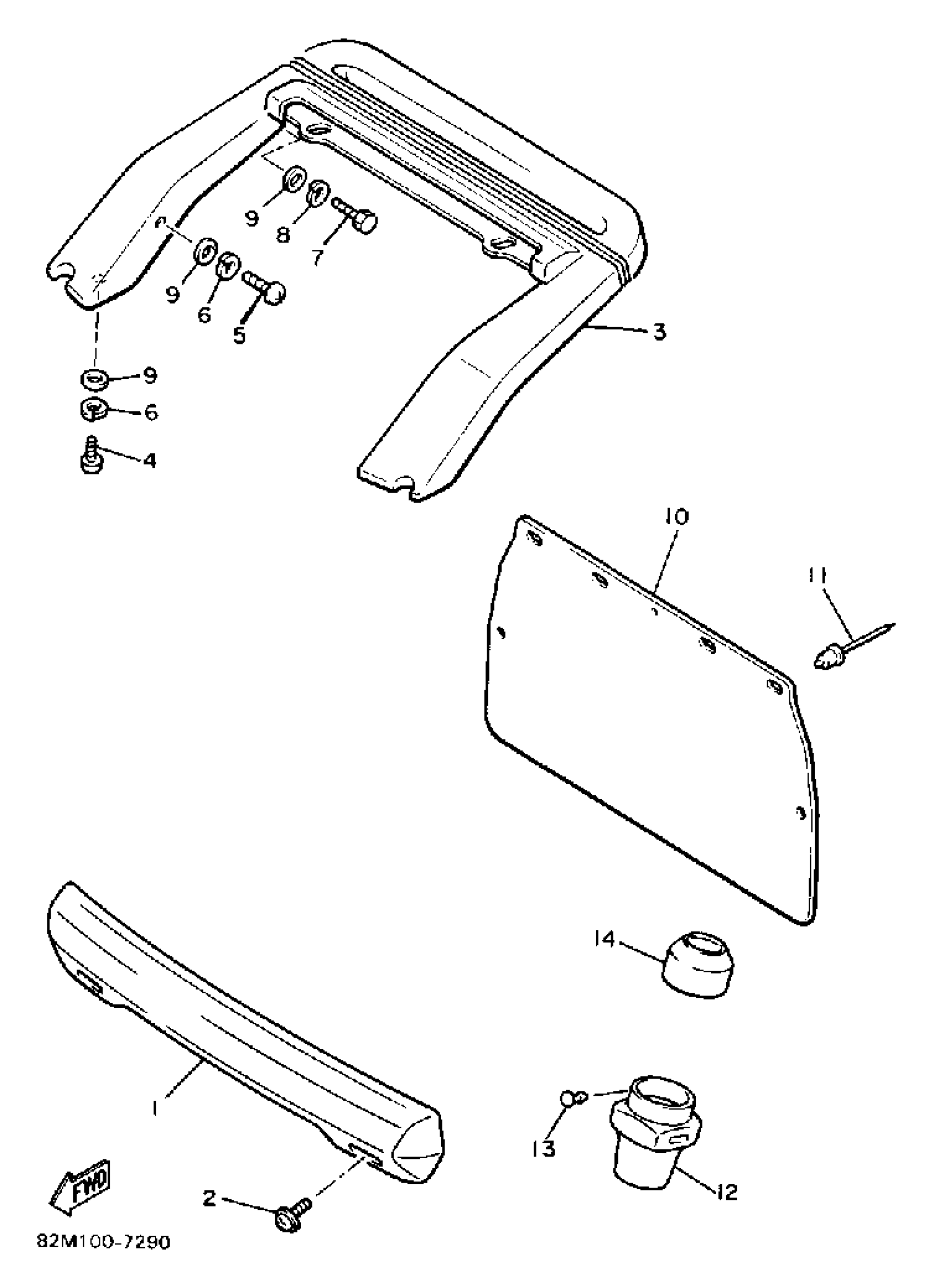

Yamaha EX570L (EXCITER) 1987 BUMPER Diagram

BUMPER, FRONT 1

SCREW, W/WASHER (4L0)

BUMPER, REAR 2

SCREW, BIND

SCREW, BIND(J50)

YBS67-8 WASHER, SPRING

BOLT, HEXAGON

YBS67-8 WASHER, SPRING

WASHER, PLAIN

FLAP

RIVET, BLIND (8R6)

PROTECTOR 1

RIVET (8M6)

PROTECTOR 4
