SECONDARY SHEAVE

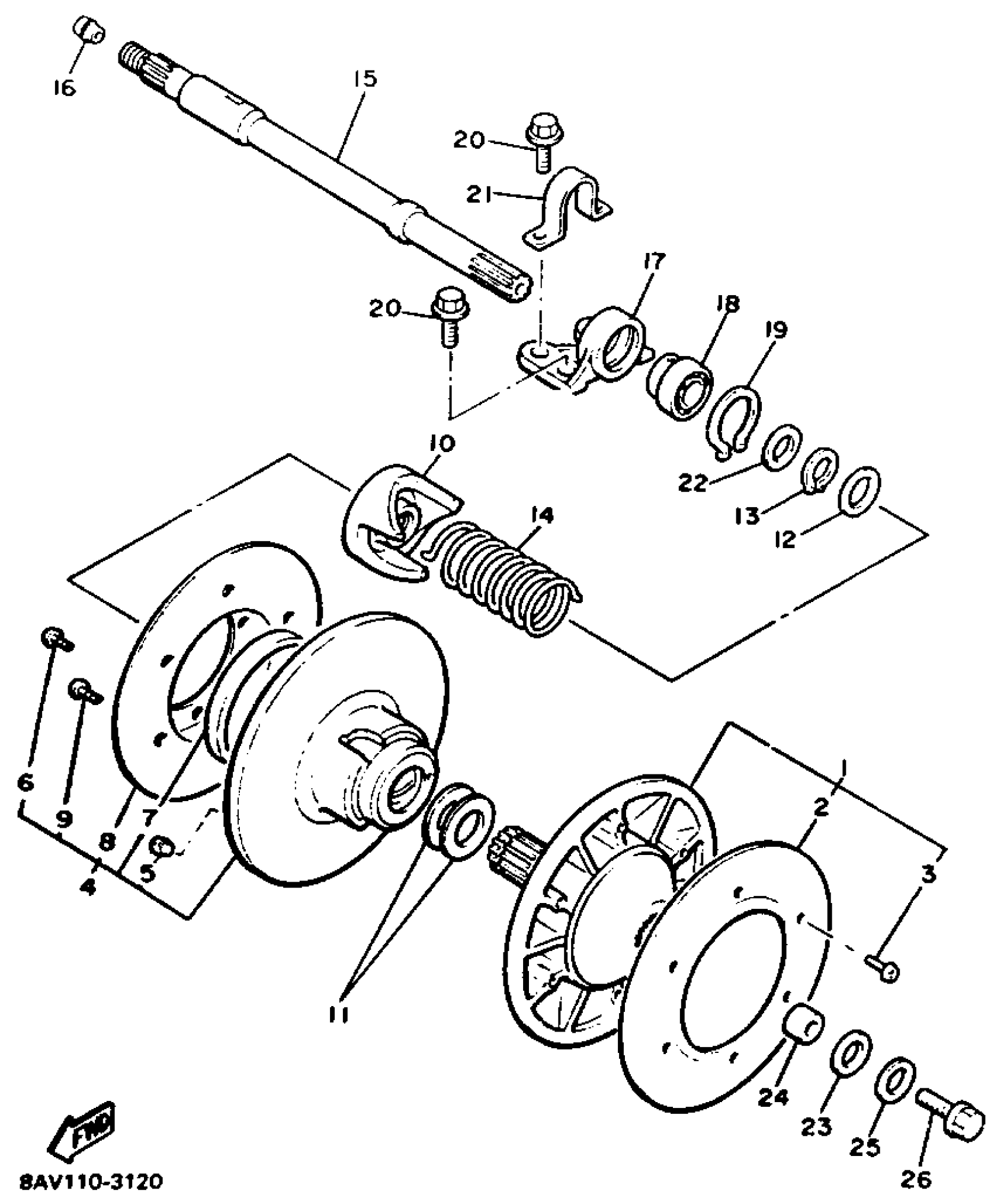

Yamaha EX570ET (EXCITER II LE (ELEC START)) 1993 SECONDARY SHEAVE Diagram
#
1
SECONDARY FIXED SHEAVE COMP.
88R-17660-12-00
Unavailable
2
PLATE 1
81H-17665-01-00
Unavailable
3
GASKET, EXHAUST
98507-05008-00
$3.55
4
SEC SLIDING SHEAVE
8AV-17670-12-00
Unavailable
5
SHOE RAMP
8X6-17688-00-00
$8.49
6
SCREW, BINDING
98907-06016-00
$9.49
7
BUSH, BIMETAL FORMED (90384-90081-00)
90380-90117-00
Unavailable
8
PLATE 2
81H-17675-01-00
Unavailable
9
GASKET, EXHAUST
98507-05008-00
$3.55
10
SEAT, SECONDARY SPRING
88R-17684-03-00
Unavailable
11
WASHER, PLATE (8U9)
90201-345G2-00
$12.49
12
WASHER, CLAW(88R)
90214-29060-00
$7.49
13
CIRCLIP(86F)
93440-34170-00
$8.49
14
SPRING, TORSION (8U7)
90508-50571-00
$11.49
15
SHAFT, SECONDARY
88F-17681-00-00
Unavailable
16
PLUG, OIL
82M-17699-00-00
Unavailable
17
HOUSING, BEARING
87X-47631-00-00
Unavailable
18
BEARING
888-17678-00-00
Unavailable
19
CIRCLIP(26H)
99009-52500-00
Unavailable
20
BOLT(2KF)
90109-085E3-00
Unavailable
21
PANEL 1
88R-1441L-00-00
Unavailable
22
WASHER, PLATE (8R6)
90201-252F1-00
Unavailable
22
WASHER, PLATE (888)
90201-25526-00
Unavailable
22
WASHER, PLATE (888)
90201-25527-00
Unavailable
23
WASHER, PLATE (T=0.5)
90201-222F0-00
Unavailable
23
WASHER, PLATE (8L8)
90201-225A4-00
Unavailable
24
COLLAR
90387-147A8-00
Unavailable
25
WASHER, PLATE
90201-140A6-00
Unavailable
26
BOLT, WASHER BASED
90105-14175-00
Unavailable
