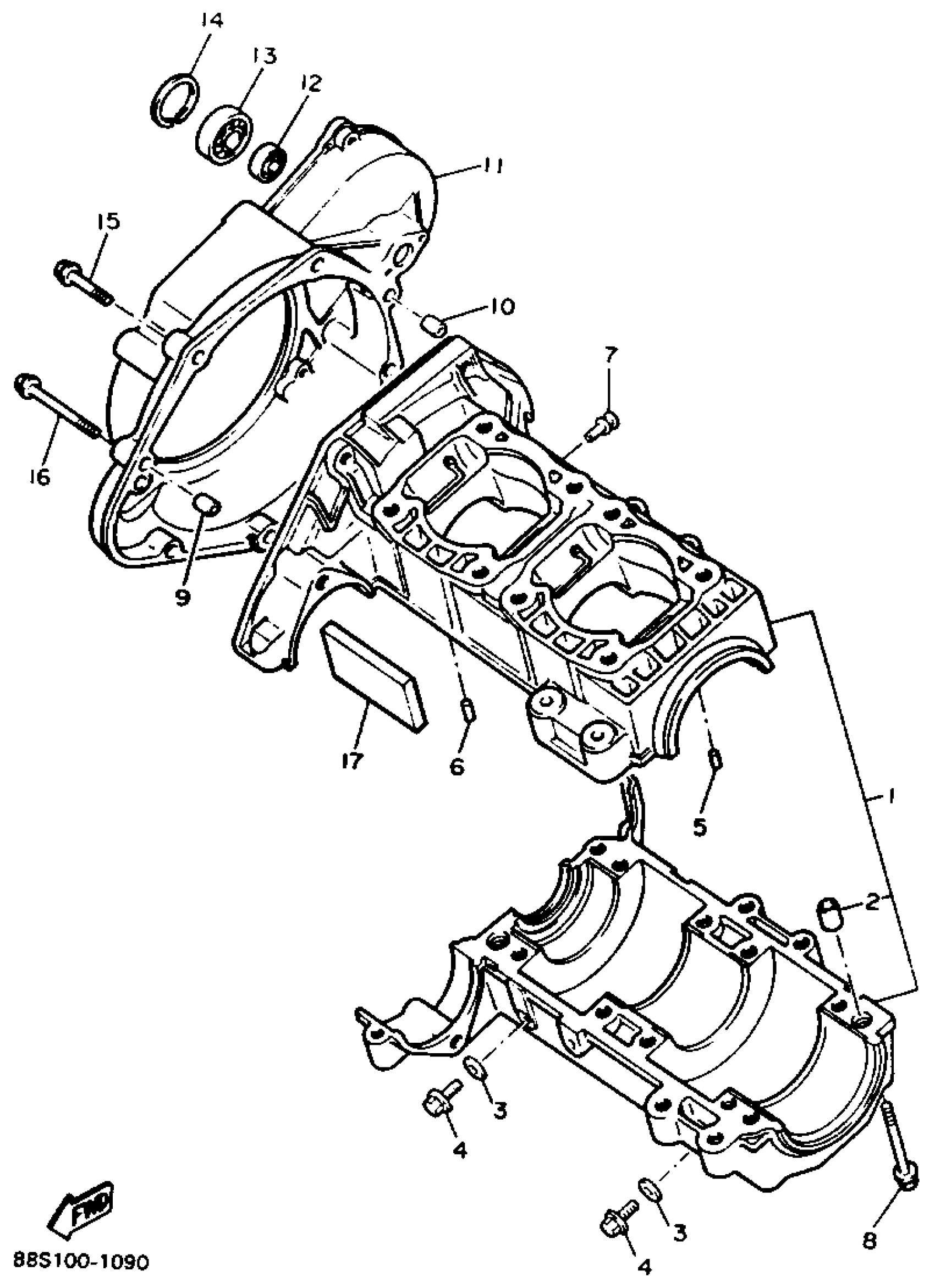

Yamaha EX570ET (EXCITER II LE (ELEC START)) 1993 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

8AV-15100-01-00

Unavailable

2

PIN, DOWEL

99530-12016-00

$4.89

3

WASHER, PLATE 3411117500

90201-08087-00

$3.71

4

BOLT, SMALL FLANGE

95027-08016-00

$8.49

5

PIN, DOWEL (8H1)

93604-07141-00

$2.17

6

PIN (2H7)

93603-10049-00

Unavailable

7

JOINT, BREATHER

J38-11116-00-00

$3.80

8

BOLT, FLANGE(8BN)

95817-08085-00

$4.08

9

PIN, DOWEL

99530-12016-00

$4.89

10

PIN, DOWEL(3XW)

91808-16023-00

$8.49

11

COVER, CRANKCASE 2

82M-15421-01-00

Unavailable

12

SEAL, OIL (30X)

93102-12321-00

$12.49

13

BEARING(82M)

93306-20117-00

$34.99

14

CIRCLIP(82M)

93450-34118-00

$0.60

15

BOLT, FLANGE

95817-08040-00

$7.49

16

BOLT, FLANGE(JF2)

95817-08080-00

Unavailable

17

DAMPER, ENGINE MOUNT 1

84N-15316-00-00

Unavailable
