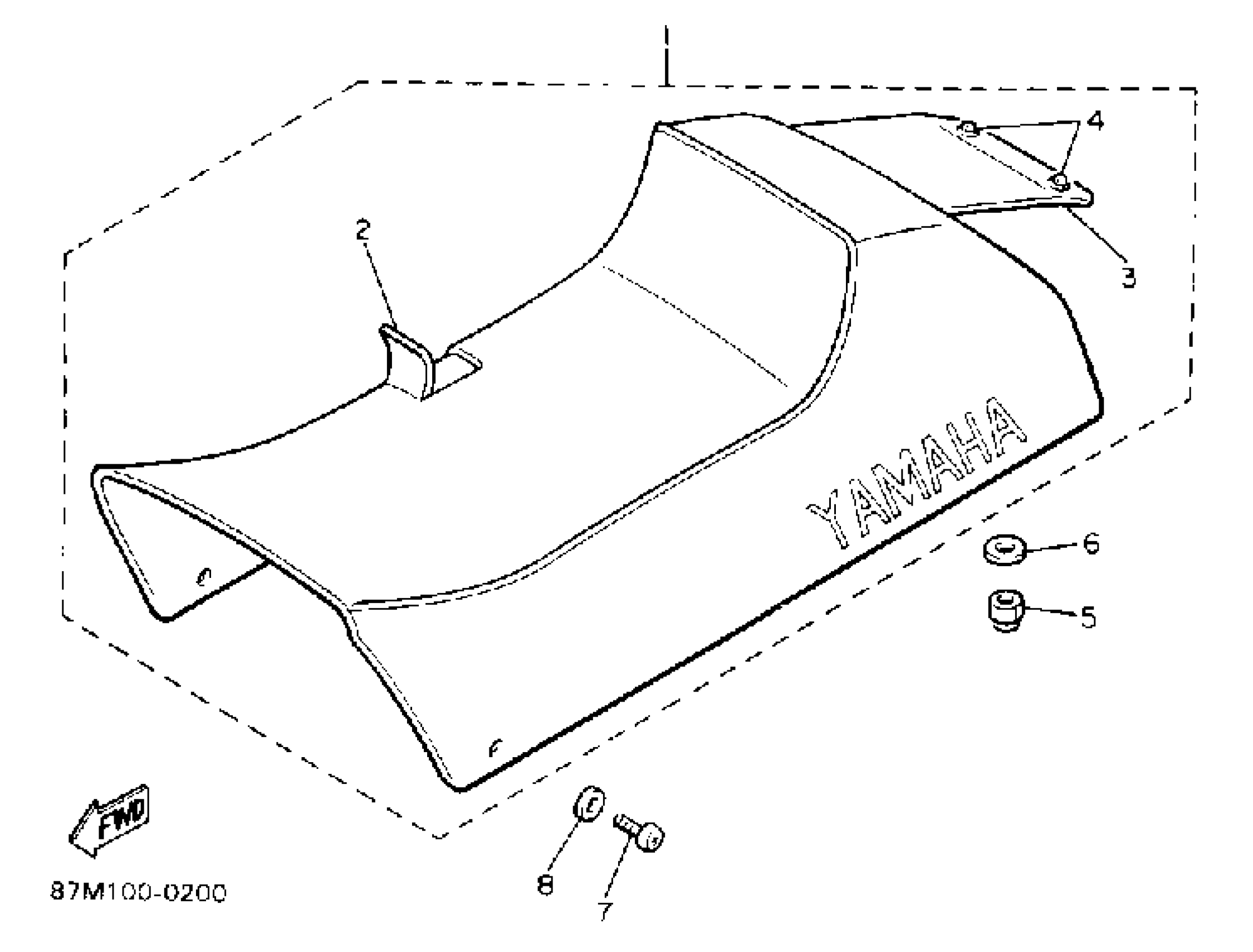

Yamaha EX570ES (EXCITER II LE (ELEC START)) 1992 SEAT Diagram

#

Description
Price

0

. COVER, SINGLE SEAT

89J-24711-00-00

Unavailable

1

SINGLE SEAT ASSEMBLY

89J-24710-00-00

Unavailable

1

SINGLE SEAT ASSEMBLY (BLUISH BLACK METALLIC 2)

89K-24710-00-00

Unavailable

2

COVER, SINGLE SEAT (RASPBERRY RED)

(89J-24711-01-00)

Unavailable

3

. COVER, LUGGAGE BOX 2

8U9-77377-01-00

Unavailable

4

HOOK, SEAT

87E-24754-00-00

$12.47

5

NUT, NYLON

95717-08300-00

$2.36

6

WASHER, PLATE (4W3)

90201-086A3-00

$5.98

7

SCREW, BINDING

98907-06016-00

$6.79

8

WASHER, PLATE(36Y)

90201-063J2-00

$4.24
