Description

Price

1

LEVER HOLDER ASSY (LEFT)

88R-W8291-00-00

$117.99

2

LEVER 1

8H8-83912-00-00

$20.99

3

SCREW, PAN HEAD(41N)

90157-05057-00

Unavailable

4

SCREW

8R4-82113-00-00

Unavailable

5

NUT, NYLON

95707-05300-00

$4.24

6

. LEVER LOCK ASSEMBLY (8K4-83930-00-00)

82A-83930-00-00

Unavailable

7

COLLAR, LEVER

802-83913-00-00

Unavailable

8

. SCREW, TAPPING

97780-30312-00

Unavailable

9

. WASHER, PLAIN

92990-05200-00

Unavailable

10

BEAM SWITCH ASSY

8H8-83950-01-00

$79.99

11

STOP SWITCH ASSY

88R-82530-00-00

$31.99

12

LEVER HOLDER ASSY, 2

89A-82720-03-00

Unavailable

13

. SWITCH, HANDLE 3 (RIGHT)

84M-83963-00-00

Unavailable

14

SCREW, ADJUSTING

84M-83928-00-00

$2.29

15

THUMB WARMER ASSY

89A-82970-03-00

Unavailable

16

SCREW, TAPPING(3NX)

97707-30514-00

Unavailable

17

CIRCLIP (EU0)

99080-04600-00

Unavailable

18

WASHER, SPECIAL

85G-83663-00-00

Unavailable

19

CAP 1

(85G-8395G-00-00)

Unavailable

20

SHAFT

8R6-8399F-00-00

Unavailable

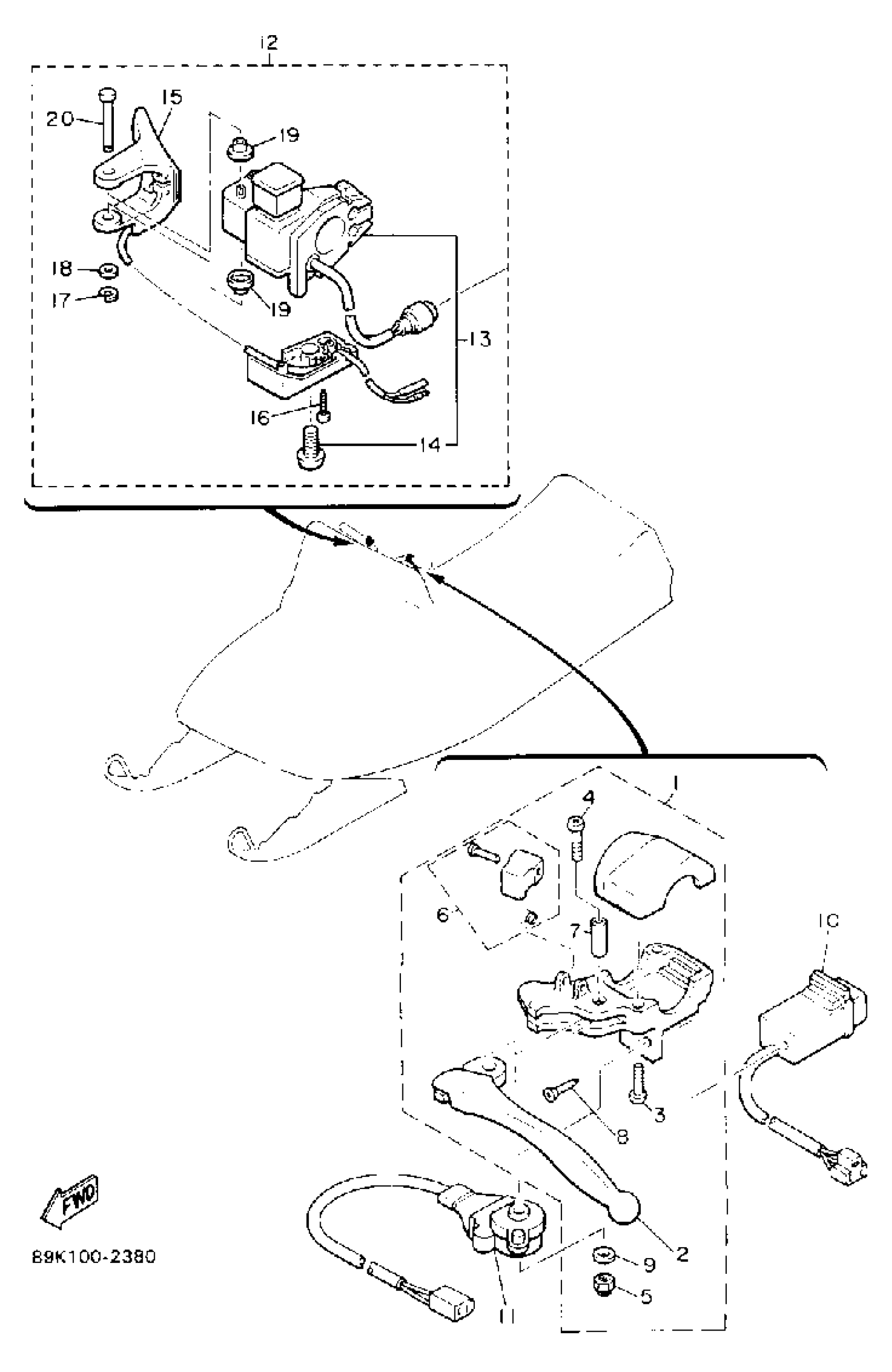

Yamaha EX570ES (EXCITER II LE (ELEC START)) 1992 ELECTRICAL 2 Diagram

LEVER HOLDER ASSY (LEFT)

LEVER 1

SCREW, PAN HEAD(41N)

SCREW

NUT, NYLON

. LEVER LOCK ASSEMBLY (8K4-83930-00-00)

COLLAR, LEVER

. SCREW, TAPPING

. WASHER, PLAIN

BEAM SWITCH ASSY

STOP SWITCH ASSY

LEVER HOLDER ASSY, 2

. SWITCH, HANDLE 3 (RIGHT)

SCREW, ADJUSTING

THUMB WARMER ASSY

SCREW, TAPPING(3NX)

CIRCLIP (EU0)

WASHER, SPECIAL

CAP 1

SHAFT
