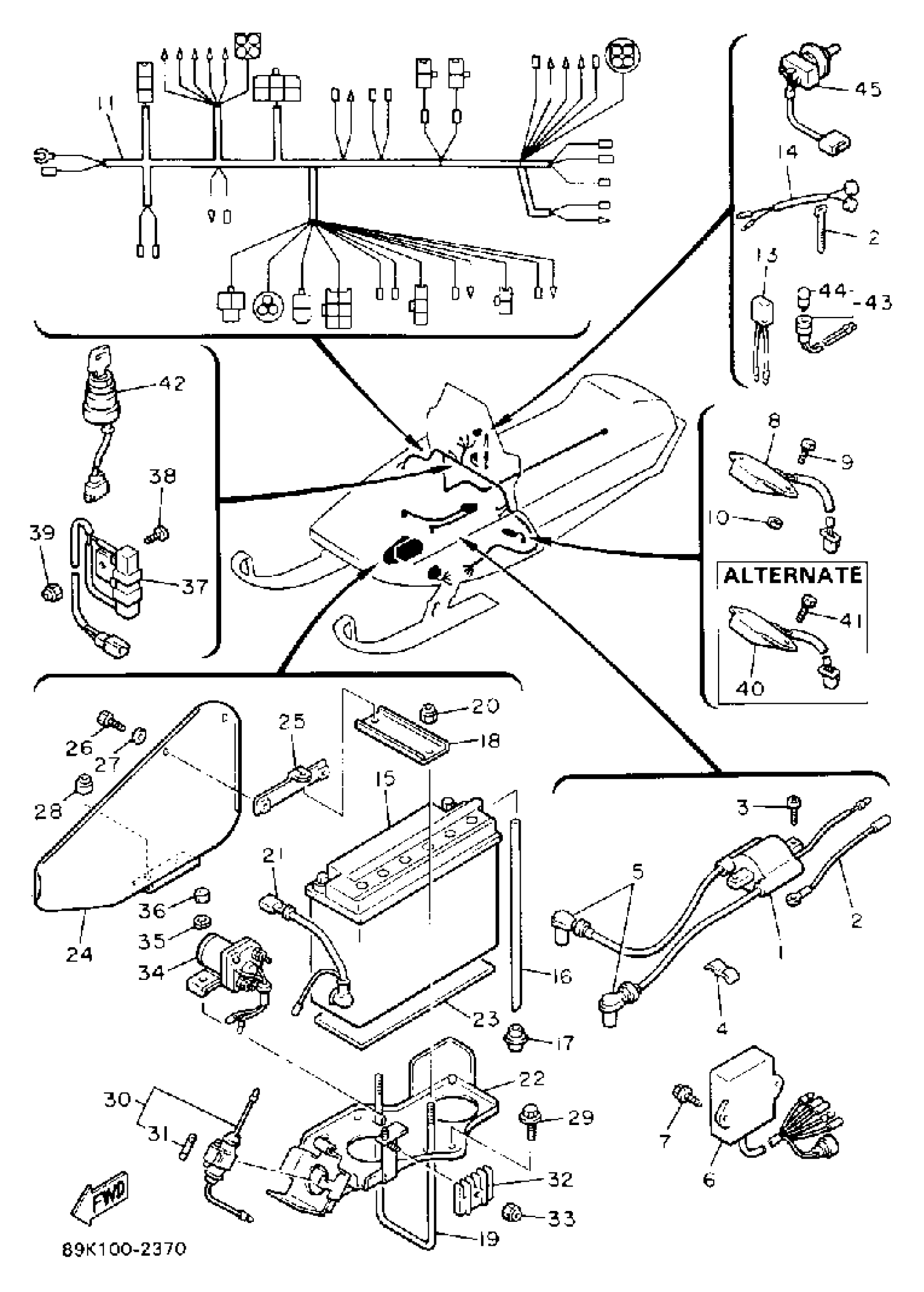

Yamaha EX570ES (EXCITER II LE (ELEC START)) 1992 ELECTRICAL 1 Diagram

#

Description
Price

1

IGNITION COIL ASSY

85T-82310-06-00

$65.57

2

WIRE, SUB-LEAD

87D-82318-00-00

Unavailable

3

SCREW, TAPPING

97707-60525-00

$6.59

4

CLAMP, CORD

861-82361-00-00

Unavailable

5

PLUG CAP ASSY

8DG-82370-00-00

$42.42

6

C.D.I. UNIT ASSEMBLY

88R-85540-00-00

Unavailable

7

BOLT, FLANGE

95817-06016-00

$1.49

8

VOLTAGE REGULATOR ASSY

82M-81910-A0-00

Unavailable

9

BOLT, HEXAGON DEEP RECESS

97D95-06014-00

$1.49

10

NUT, NYLON

95707-06300-00

$3.05

11

WIRE HARNESS ASSEMBLY

89K-82590-00-00

Unavailable

12

BAND, SWITCH CORD

25G-83936-01-00

$3.93

13

CHECKER, PILOT LAMP

38W-85774-00-00

Unavailable

14

WIRE, SUB-LEAD

80N-82319-00-00

Unavailable

15

YB16ALA2 YUASA BATTERY

YB1-6ALA2-00-00

$151.03

16

HOSE (L340)

90445-08684-00

Unavailable

17

GROMMET 152845180000

90480-12013-00

Unavailable

18

. PLATE, BATTERY FITTING

84N-82136-00-00

Unavailable

19

. SCREW, FITTING

84N-82133-00-00

Unavailable

20

NUT, NYLON

95707-06300-00

$3.05

21

WIRE PLUS LEAD

84N-82115-00-00

Unavailable

22

BRACKET, BATTERY

88S-2199G-00-00

Unavailable

23

SEAT, BATTERY

84N-82122-00-00

Unavailable

24

. SHIELD, HEAT

88S-2199H-01-00

Unavailable

25

. BRACKET, BATTERY

8V0-82128-00-00

Unavailable

26

BOLT (682)

97095-05010-00

Unavailable

27

WASHER, PLAIN (646)

92990-05600-00

Unavailable

28

NUT, U FLANGE

95604-06200-00

Unavailable

29

BOLT, FLANGE

95812-06010-00

Unavailable

30

FUSE HOLDER ASSY

1E6-82150-00-00

Unavailable

31

FUSE (10A)

1E6-82151-00-00

Unavailable

32

RECTIFIER ASSY (RXKING,RXS)

3HB-H1970-01-00

Unavailable

33

NUT, U FLANGE

95604-06200-00

Unavailable

34

. STARTER RELAY ASSY

8J9-81940-10-00

Unavailable

35

WASHER, SPRING

92995-06100-00

$2.83

36

NUT, HEXAGON

95380-06600-00

$4.01

37

RESISTOR ASSEMBLY

88T-85370-00-00

Unavailable

38

SCREW, BIND (705)

98980-06016-00

Unavailable

39

NUT, NYLON

95707-06300-00

$3.05

40

VOLTAGE REGULATOR ASSY

82M-81910-A0-00

Unavailable

41

BOLT, HEXAGON

97017-06030-00

Unavailable

42

MAIN SWITCH ASSY

8K1-82510-21-00

Unavailable

43

PILOT LIGHT ASSEMBLY 1

8V0-84301-00-00

Unavailable

44

. BULB (12V5W)

8V0-85353-00-00

Unavailable

45

SWITCH

88H-82917-00-00

Unavailable
