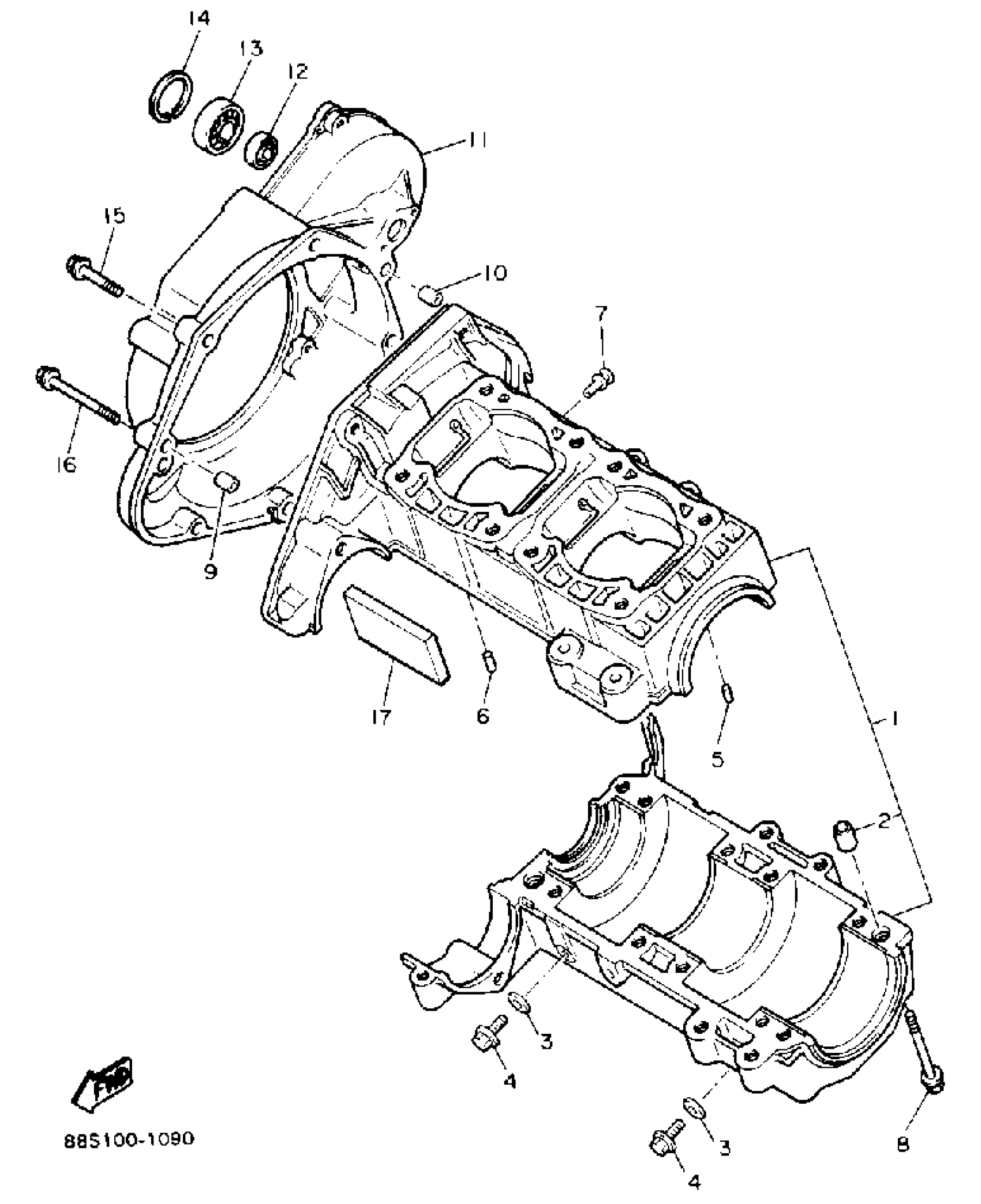

Yamaha EX570ES (EXCITER II LE (ELEC START)) 1992 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSEMBLY

84N-15100-04-00

Unavailable

2

PIN, DOWEL

99530-12016-00

$3.93

3

WASHER, PLATE 3411117500

90201-08087-00

$2.99

4

BOLT, SMALL FLANGE

95027-08016-00

$6.58

5

PIN, DOWEL (8H1)

93604-07141-00

$1.60

6

PIN (2H7)

93603-10049-00

Unavailable

7

JOINT, BREATHER

J38-11116-00-00

$2.73

8

BOLT, FLANGE(8BN)

95817-08085-00

$3.03

9

PIN, DOWEL

99530-12016-00

$3.93

10

PIN, DOWEL(3XW)

91808-16023-00

$5.37

11

COVER, CRANKCASE 2

82M-15421-01-00

Unavailable

12

SEAL, OIL (30X)

93102-12321-00

$9.98

13

BEARING(82M)

93306-20117-00

$28.48

14

CIRCLIP(82M)

93450-34118-00

$1.49

15

BOLT, FLANGE

95817-08040-00

$5.35

16

BOLT, FLANGE(JF2)

95817-08080-00

Unavailable

17

DAMPER, ENGINE MOUNT 1

84N-15316-00-00

Unavailable
