- EX570ER (EXCITER II LE (ELEC START)) 1991
TRACK SUSPENSION 2

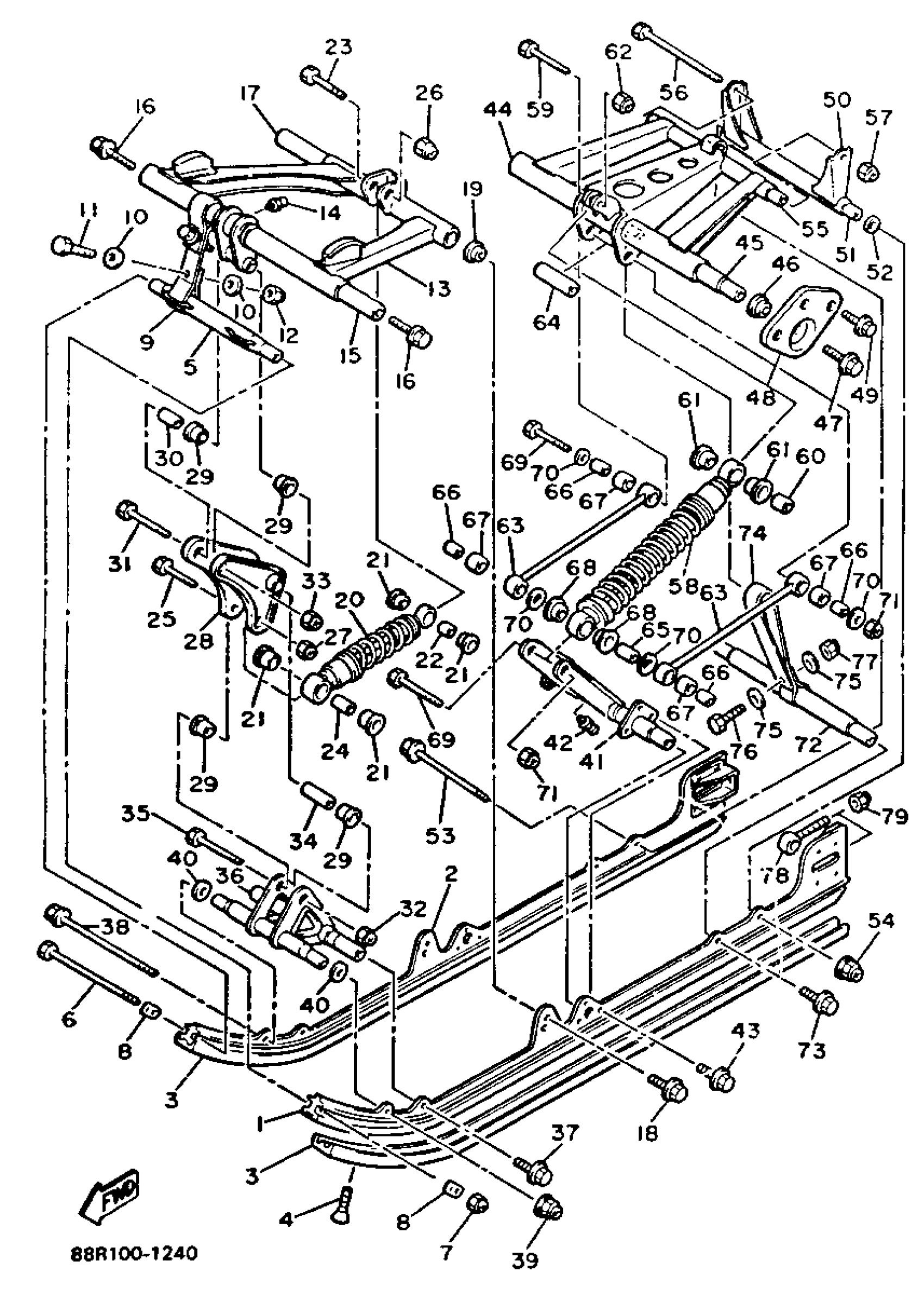

Yamaha EX570ER (EXCITER II LE (ELEC START)) 1991 TRACK SUSPENSION 2 Diagram
#
1
FRAME SLIDING 2
88R-W4741-00-00
Unavailable
2
FRAME SLIDING 2
88R-W4741-00-00
Unavailable
3
RUNNER, SLIDING
88R-47421-01-XX
Unavailable
4
SCREW, CROSSRECESS (8G6)
90151-06005-00
$9.49
5
BRACKET 1
8U7-47415-00-00
Unavailable
6
BOLT,HEXAGON
97027-08255-00
Unavailable
7
NUT, NYLON
95717-08300-00
$2.70
8
WASHER
8U7-47359-00-00
Unavailable
9
STOPPER 1
8U7-47495-00-00
Unavailable
10
WASHER, PLATE
90201-06747-00
$8.49
11
BOLT, HEXAGON
97017-06025-00
$4.24
12
NUT, NYLON
95707-06300-00
$3.50
13
ARM, PIVOT 1
8U7-47331-00-00
Unavailable
14
NIPPLE, GREASE
93700-06M03-00
Unavailable
15
SHAFT 1
885-47465-03-00
Unavailable
16
BOLT (8V0)
90109-10771-00
Unavailable
17
SHAFT 3
82M-47485-02-00
Unavailable
18
BOLT, FLANGE
95817-10030-00
Unavailable
19
COLLAR (8U7)
90387-105G6-00
Unavailable
20
SHOCK ABSORBER 2
88R-47481-00-00
Unavailable
21
COLLAR (8U7)
90387-123G4-00
Unavailable
22
COLLAR
90387-08775-00
Unavailable
23
. BOLT
90101-08557-00
Unavailable
24
COLLAR
90387-08478-00
Unavailable
25
BOLT
97021-08065-00
Unavailable
26
NUT, NYLON
95717-08300-00
$2.70
27
NUT, U
95617-08100-00
Unavailable
28
BRACKET 6
8U7-47464-00-00
Unavailable
29
COLLAR
90387-123G5-00
Unavailable
30
COLLAR
90387-08478-00
Unavailable
31
BOLT
97021-08065-00
Unavailable
32
NUT, NYLON
95717-08300-00
$2.70
33
NUT, U
95617-08100-00
Unavailable
34
COLLAR
90387-084G0-00
Unavailable
35
BOLT, HEXAGON
97027-08100-00
Unavailable
36
BRACKET 4
8U7-47418-00-00
Unavailable
37
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
38
BOLT, WASHER BASED(51X)
90105-08346-00
Unavailable
39
NUT, SELF-LOCKING
90185-08169-00
Unavailable
40
.. WASHER, PLATE
92990-08600-00
Unavailable
41
BRACKET 2
8AX-47416-01-00
Unavailable
42
NIPPLE, GREASE
93700-06M03-00
Unavailable
43
BOLT, FLANGE
95817-06020-00
Unavailable
44
ARM, PIVOT 2
8AV-47332-01-00
Unavailable
44
WASHER, PLATE(8AT)
90201-081R9-00
Unavailable
44
NUT, NYLON
95717-08300-00
$2.70
44
ARM, PIVOT 2 (8U7-47332-00-00)
99999-02178-00
Unavailable
45
SHAFT 2
99999-02273-00
Unavailable
46
COLLAR
88R-47319-00-00
Unavailable
47
BOLT (8V0)
90109-10771-00
Unavailable
48
BRACKET,REAR 2
8AB-47425-00-00
Unavailable
49
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
50
BRACKET 3
8U7-47417-00-00
Unavailable
51
COLLAR
90387-08632-00
Unavailable
52
WASHER (1T1)
90201-08649-00
Unavailable
53
BOLT, WASHER BASED(51X)
90105-08346-00
Unavailable
54
NUT, SELF-LOCKING
90185-08169-00
Unavailable
55
COLLAR (8U7)
90387-083G6-00
Unavailable
56
BOLT (83L)
97027-08220-00
Unavailable
57
NUT, NYLON
95717-08300-00
$2.70
58
SHOCK ABSORBER
8AV-47480-00-00
Unavailable
59
BOLT(88R)
90101-10738-00
Unavailable
60
COLLAR (8U7)
90387-105G5-00
Unavailable
61
COLLAR (8U7)
90387-145G7-00
Unavailable
62
NUT, U
95617-10100-00
Unavailable
63
ROD, RELAY
8U7-47494-02-00
Unavailable
64
COLLAR
90387-103G9-00
Unavailable
65
COLLAR
90387-104G1-00
Unavailable
66
COLLAR(87A)
90387-100X3-00
Unavailable
67
COLLAR (8U7)
90387-143G7-00
Unavailable
68
COLLAR (8U7)
90387-144G2-00
Unavailable
69
BOLT
90101-10560-00
Unavailable
70
WASHER, PLATE (17K)
90201-106F2-00
Unavailable
71
NUT, NYLON
95707-10300-00
Unavailable
72
SHAFT 4
8V0-47486-00-00
Unavailable
73
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
74
STOPPER 2
8U7-47496-00-00
Unavailable
75
WASHER, PLATE
90201-06747-00
$8.49
76
BOLT(3RV)
97014-06035-00
Unavailable
77
NUT, NYLON
95707-06300-00
$3.50
78
COLLAR 3
8K2-47479-01-00
Unavailable
79
NUT, NYLON
95707-10300-00
Unavailable
