Yamaha EX570ER (EXCITER II LE (ELEC START)) 1991 SHROUD Diagram
#
1

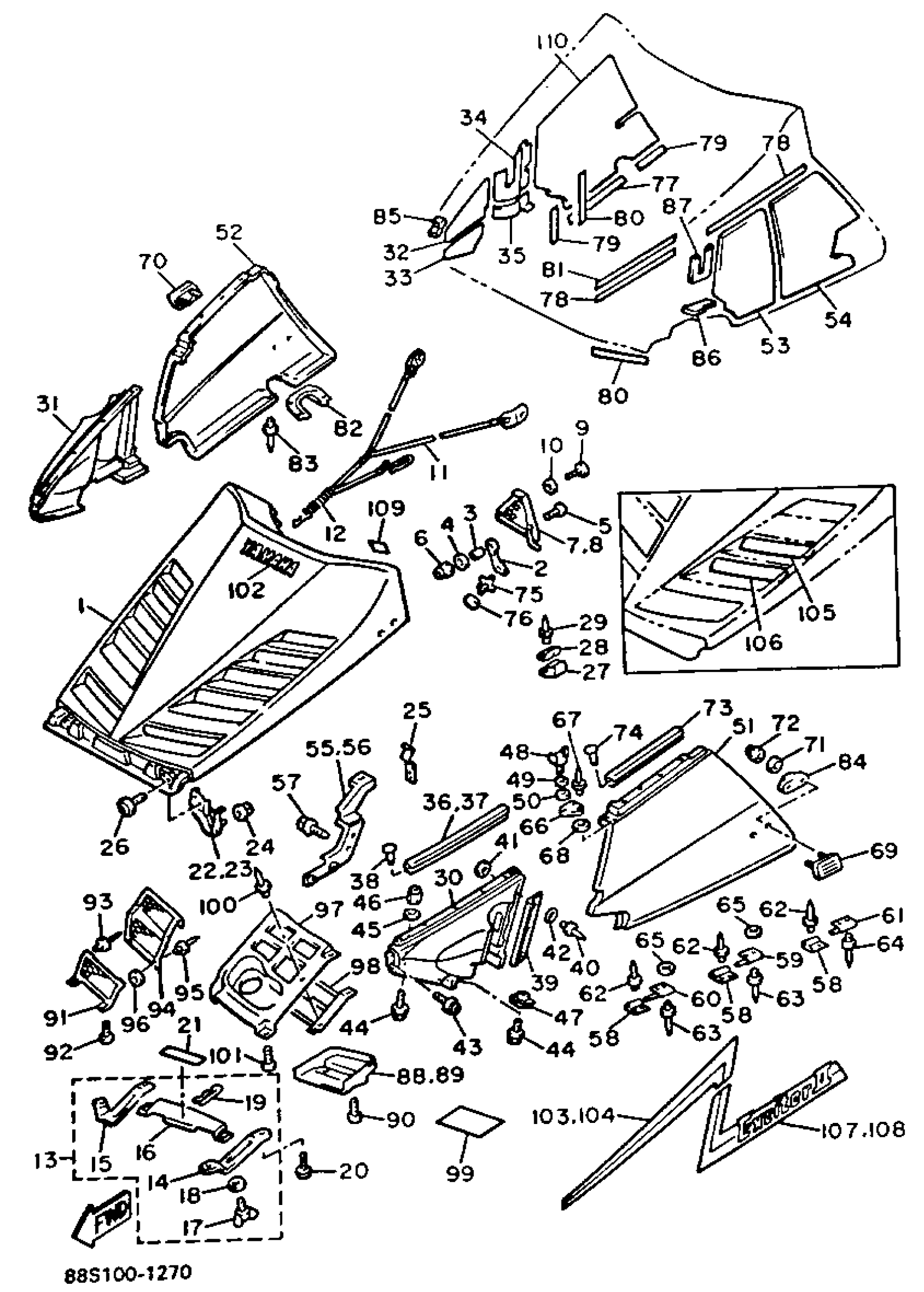

SHROUD ASSEMBLY
88R-W7711-00-00
Unavailable
1
SHROUD ASSEMBLY (BLUISH BLACK METALLIC 2)
88S-W7711-00-00
Unavailable
2
BODY, LATCH 1
8V0-77171-00-00
$21.99
3
COLLAR (420)
90387-06241-00
$8.49
4
WASHER, PLATE 8221447500
90201-06057-00
$5.60
5
SCREW, BINDING
98907-06030-00
$8.49
6
NUT, FLANGE(7NB)
95780-06500-00
$2.60
7
PROTECTOR 5
88R-77555-00-00
Unavailable
8
PROTECTOR 6
88R-77556-00-00
Unavailable
9
SCREW, BINDING
98907-06014-00
$7.99
10
WASHER PLATE 626441880000
90202-06007-00
$4.15
11
STOPPER, SHROUD
88R-77118-00-00
Unavailable
12
CLAMP, ROD
80L-77159-00-00
Unavailable
13
LOUVER COMP.
88R-77130-00-00
Unavailable
14
. STAY 1
88R-77125-00-00
Unavailable
15
. STAY 2
88R-77126-00-00
Unavailable
16
. LOUVER 1
88R-77131-00-00
Unavailable
17
BOLT, WING(8W1)
90122-05022-00
Unavailable
18
. WASHER, PLAIN
92990-05200-00
Unavailable
19
. CLIP
90468-10005-00
Unavailable
20
SCREW, TRUSS TAP.
97707-50014-00
Unavailable
21
LABEL,WARNING 2
8BE-77762-00-00
Unavailable
22
HINGE ASY
88R-77140-01-00
Unavailable
23
HINGE ASY 2
88R-7714A-01-00
Unavailable
24
NUT, FLANGE(7NB)
95780-06500-00
$2.60
25
BRACKET, TL BX FTNG
88S-21945-00-00
Unavailable
26
SCREW, W/WASHER (4L0)
90159-06060-00
Unavailable
27
STOPPER
8V0-77188-00-00
Unavailable
28
WASHER, SPECIAL
8V0-77116-01-00
Unavailable
29
RIVET, BLIND
90267-40029-00
Unavailable
30
HOOD 1
87M-21982-00-00
Unavailable
31
HOOD 2
87M-21983-00-00
Unavailable
32
LINING, SHROUD 2
82M-77262-00-00
Unavailable
33
LINING, SHROUD 3
82M-77263-01-00
Unavailable
34
LINING, SHROUD 4
82M-77264-00-00
Unavailable
35
LINING, SHROUD 5
82M-77265-00-00
Unavailable
36
BUSH, RUBBER 1
82M-77515-00-00
Unavailable
37
BUSH, RUBBER 1
8V0-77515-01-00
Unavailable
38
RIVET(81E)
90269-05055-00
Unavailable
39
TRIM 1
82M-2196T-00-00
Unavailable
40
RIVET, BLIND (8K1)
90267-40076-00
Unavailable
41
WASHER, PLATE(26H)
90201-044H9-00
Unavailable
42
WASHER, PLATE (8M6)
90201-047A2-00
Unavailable
43
SCREW, WITH WASHER
90159-05137-00
Unavailable
44
BOLT, WITH WASHER
90119-06226-00
Unavailable
45
WASHER(6TA)
92907-06200-00
Unavailable
46
NUT, NYLON
95707-06300-00
Unavailable
47
NUT
83R-77144-00-00
Unavailable
48
BOLT, WING (36F)
90122-06020-00
Unavailable
49
WASHER, PLATE
90201-06020-00
Unavailable
50
WASHER, PLATE 1412342700
90202-06008-00
Unavailable
51
HOOD 3
88R-2197H-00-00
Unavailable
52
HOOD 4
88R-2198H-00-00
Unavailable
53
DAMPER, NOISE 14
82M-77274-01-00
Unavailable
54
DAMPER, NOISE 15
82M-77275-00-00
Unavailable
55
BRACKET 3
88R-2196F-00-00
Unavailable
56
BRACKET 4
82M-2196G-00-00
Unavailable
57
BOLT, FLANGE
95812-06010-00
Unavailable
58
BRACKET, 1
88F-2194X-00-00
Unavailable
59
BRACKET 2
88R-2195X-00-00
Unavailable
60
BRACKET 2
88R-2195X-00-00
Unavailable
61
BRACKET 3
88F-2196F-00-00
Unavailable
62
RIVET, BLIND (8L0)
90267-48059-00
Unavailable
63
RIVET, BLIND
90267-48081-00
Unavailable
64
RIVET, BLIND (8J5)
90267-48057-00
Unavailable
65
WASHER, PLATE
90201-04027-00
Unavailable
66
STAY 3
82M-77127-00-00
Unavailable
67
RIVET, BLIND (8H4)
90267-48053-00
Unavailable
68
WASHER, PLATE
90201-04027-00
Unavailable
69
PROTECTOR 1
8V0-77551-00-00
Unavailable
70
PROTECTOR 2
8V0-77552-00-00
Unavailable
71
WASHER, PLATE 8067717800
90201-05029-00
Unavailable
72
NUT, NYLON
95707-05300-00
Unavailable
73
BUSH, RUBBER 2
82M-77516-00-00
Unavailable
74
RIVET(81E)
90269-05055-00
Unavailable
75
HOLDER, LATCH
8V0-77175-00-00
Unavailable
76
PLATE
4U5-2176E-00-00
Unavailable
77
TAPE 1
82M-7717E-00-00
Unavailable
78
TAPE 2
82M-7717F-01-00
Unavailable
79
TAPE 3
82M-7717G-01-00
Unavailable
80
TAPE 3
8V0-7717G-00-00
Unavailable
81
TAPE 1
8V0-7717E-01-00
Unavailable
82
PATCH 10
82M-21997-00-00
Unavailable
83
RIVET, BLIND
90267-48101-00
Unavailable
84
DAMPER 1
82M-77198-01-00
Unavailable
85
TAPE 4
84M-7717H-00-00
Unavailable
86
TAPE, 5
84M-7717J-00-00
Unavailable
87
DAMPER, NOISE 18
84M-77278-00-00
Unavailable
88
PLATE 1
88R-77185-00-00
Unavailable
89
PLATE 2
88R-77186-00-00
Unavailable
90
SCREW, TRUSS TAP.
97707-50014-00
Unavailable
91
SHIELD 1
88R-77731-00-00
Unavailable
92
SCREW, TRUSS TAP.
97707-50014-00
Unavailable
93
RIVET, BLIND
90267-48018-00
Unavailable
94
PROTECTOR 7
88R-77557-00-00
Unavailable
95
RIVET (856)
90267-48014-00
Unavailable
96
WASHER, PLATE (34L)
90201-043H7-00
Unavailable
97
DUCT
88R-77194-00-00
Unavailable
98
STAY 3
88R-77127-00-00
Unavailable
99
ELEMENT, AIR CLEANER
88R-14451-00-00
Unavailable
100
RIVET, BLIND
90267-48018-00
Unavailable
101
SCREW, TRUSS TAP.
97707-50014-00
Unavailable
102
EMBLEM, YAMAHA
99246-00160-00
Unavailable
103
ORNAMENT 1
88R-77163-00-00
Unavailable
103
ORNAMENT 1 (BLUISH BLACK METALLIC 2)
88S-77163-00-00
Unavailable
104
ORNAMENT 2
88R-77164-00-00
Unavailable
104
ORNAMENT 2 (BLUISH BLACK METALLIC 2)
88S-77164-00-00
Unavailable
105
TAPE 1
88R-7717E-00-00
Unavailable
106
TAPE 2
88R-7717F-00-00
Unavailable
107
ORNAMENT 4
88R-77113-00-00
Unavailable
107
ORNAMENT 4 (BLUISH BLACK METALLIC 2)
88S-77113-00-00
Unavailable
108
ORNAMENT 5
88R-77114-00-00
Unavailable
108
ORNAMENT 5 (BLUISH BLACK METALLIC 2)
88S-77114-00-00
Unavailable
109
INDICATOR, COCK
86M-24153-00-00
Unavailable
110
LINING, SHROUD 6
82M-77266-00-00
Unavailable
