Description

Price

1

SECONDARY FIXED SHEAVE COMP.

88R-17660-12-00

Unavailable

2

SEC SLIDING SHEAVE

8AV-17670-12-00

Unavailable

3

SHOE RAMP

8X6-17688-00-00

$8.49

4

SCREW, BINDING

98907-06012-00

$9.49

5

BUSH, BIMETAL FORMED (90384-90081-00)

90380-90117-00

Unavailable

6

SEAT, SECONDARY SPRING

88R-17684-03-00

Unavailable

7

WASHER, PLATE (8U9)

90201-345G2-00

$12.49

8

WASHER, PLATE

90201-34684-00

Unavailable

9

CIRCLIP(86F)

93440-34170-00

$8.49

10

SPRING, TORSION (8U7)

90508-50571-00

$11.49

11

SHAFT, SECONDARY

88F-17681-00-00

Unavailable

12

PLUG, OIL

82M-17699-00-00

$14.49

13

HOUSING, BEARING

87X-47631-00-00

Unavailable

14

BEARING

888-17678-00-00

Unavailable

15

CIRCLIP(26H)

99009-52500-00

$12.49

16

BOLT,SOCKET

91314-08020-00

Unavailable

17

.. WASHER, PLATE

92990-08600-00

Unavailable

18

PANEL 1

88R-1441L-00-00

Unavailable

19

WASHER, PLATE (8R6)

90201-252F1-00

Unavailable

19

WASHER, PLATE (888)

90201-25526-00

Unavailable

19

WASHER, PLATE (888)

90201-25527-00

Unavailable

20

WASHER, PLATE (T=0.5)

90201-222F0-00

Unavailable

20

WASHER, PLATE (8L8)

90201-225A4-00

Unavailable

21

COLLAR

90387-147A8-00

Unavailable

22

WASHER, PLATE

90201-140A6-00

Unavailable

23

BOLT, WASHER BASED

90105-14175-00

Unavailable

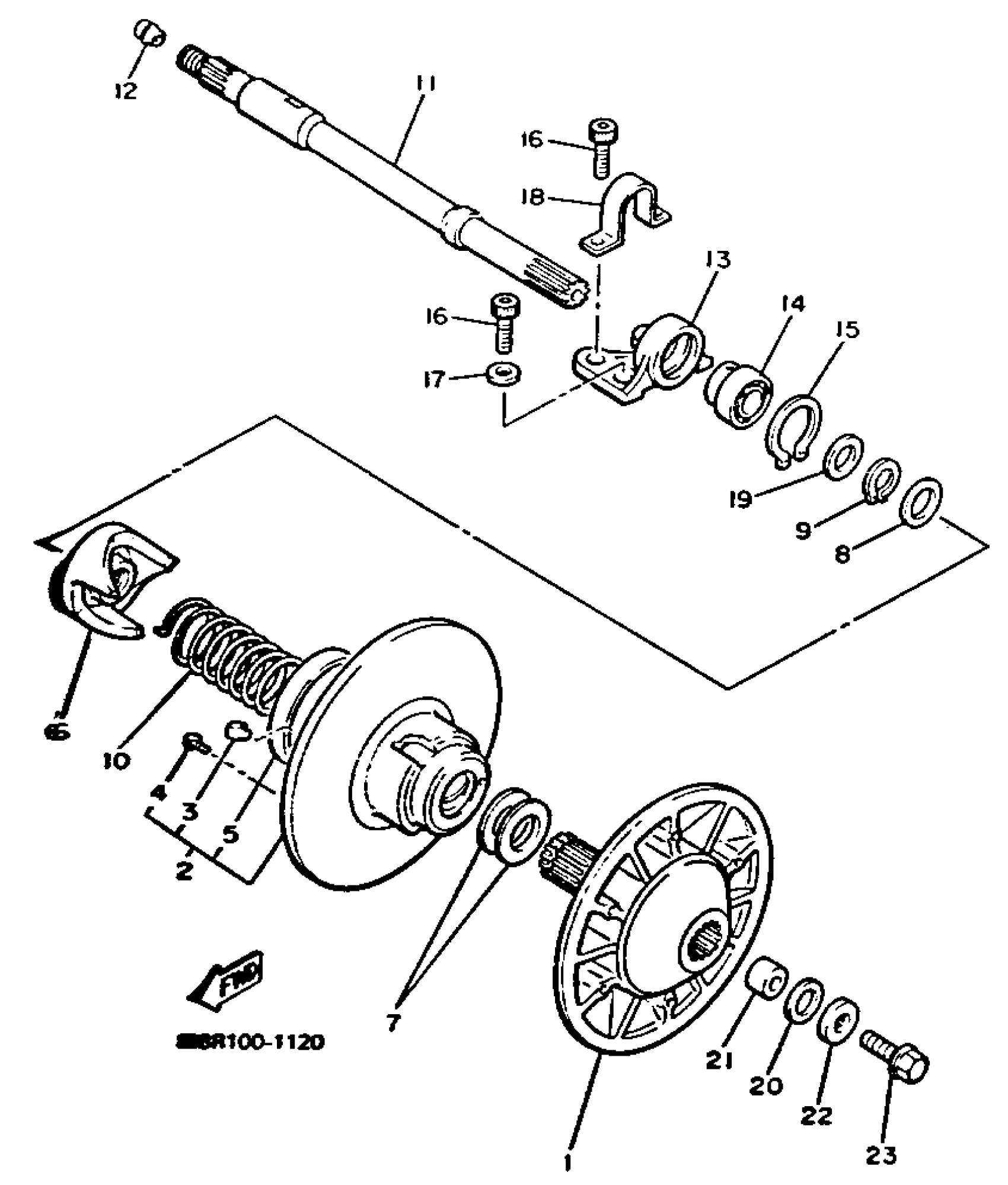

Yamaha EX570ER (EXCITER II LE (ELEC START)) 1991 SECONDARY SHEAVE Diagram

SECONDARY FIXED SHEAVE COMP.

SEC SLIDING SHEAVE

SHOE RAMP

SCREW, BINDING

BUSH, BIMETAL FORMED (90384-90081-00)

SEAT, SECONDARY SPRING

WASHER, PLATE (8U9)

WASHER, PLATE

CIRCLIP(86F)

SPRING, TORSION (8U7)

SHAFT, SECONDARY

PLUG, OIL

HOUSING, BEARING

BEARING

CIRCLIP(26H)

BOLT,SOCKET

.. WASHER, PLATE

PANEL 1

WASHER, PLATE (8R6)

WASHER, PLATE (888)

WASHER, PLATE (888)

WASHER, PLATE (T=0.5)

WASHER, PLATE (8L8)

COLLAR

WASHER, PLATE

BOLT, WASHER BASED
