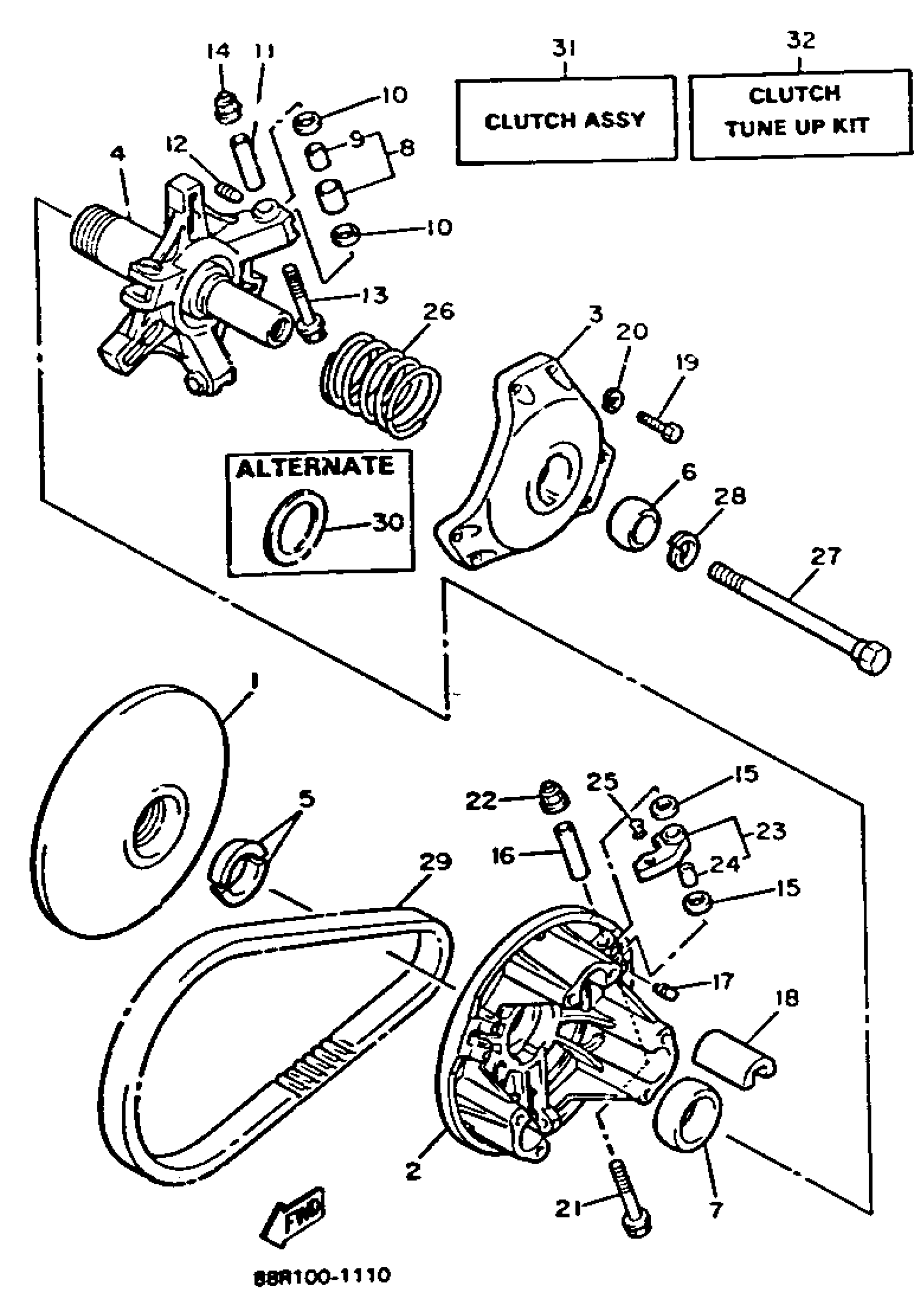

Yamaha EX570ER (EXCITER II LE (ELEC START)) 1991 PRIMARY SHEAVE Diagram

#

Description
Price

1

SHEAVE, PRIMARY FIXED

88R-17611-02-00

$113.99

2

SHEAVE, PRIMARY SLIDING

88R-17621-01-00

Unavailable

3

CAP

88R-17631-01-00

Unavailable

4

SPIDER COMPLETE

8BW-17640-11-00

Unavailable

5

STOPPER

8V0-17639-00-00

$14.99

6

BUSH(83R)

90389-28032-00

$61.99

7

BUSH(88R)

90389-41031-00

$78.99

8

ROLLER, COMP

8BH-17624-20-00

$65.99

9

. BUSH, SOLID

90380-08244-00

Unavailable

10

WASHER, PLATE(88R)

90202-08204-00

$9.49

11

COLLAR

90387-0514T-00

$16.99

12

SCREW SET

92A08-05310-00

Unavailable

13

BOLT, WASHER BASED(88R)

90105-05644-00

$2.39

14

NUT, S/L FLANGE

95607-05200-00

$9.49

15

WASHER, PLATE(88R)

90202-08204-00

$9.49

16

COLLAR

90387-0514T-00

$16.99

17

BOLT, SET

90113-05041-00

Unavailable

18

SLIDER

88R-17653-01-00

Unavailable

19

BOLT, HEXAGON

97017-06030-00

Unavailable

20

WASHER, SPRING

92995-06100-00

Unavailable

21

BOLT, WASHER BASED(88R)

90105-05644-00

$2.39

22

NUT, S/L FLANGE

95607-05200-00

$9.49

23

WEIGHT COMP

88R-17605-00-00

Unavailable

24

. BUSH, SOLID

90380-08244-00

Unavailable

25

RIVET, COUNTER SUNK (8G8)

90261-06017-00

Unavailable

25

RIVET, COUNTERSUNK HEAD(88R)

90261-06028-00

Unavailable

26

SPRING, COMPRESSION(88R)

90501-553G6-00

Unavailable

27

. BOLT (L=1653MM)

88R-17647-00-00

Unavailable

28

WASHER(JN5)

92907-16100-00

Unavailable

29

V-BELT

89L-17641-02-00

Unavailable

30

CLUCH TUNE-UP KIT (R)

88R-00000-51-00

Unavailable

30

CLUTCH ASY

89L-17601-09-00

Unavailable

30

WASHER, PLATE(88S)

90201-483P9-00

Unavailable
