Description

Price

1

PISTON (STD)

88R-11631-00-92

Unavailable

2

PISTON RING SET (STD)

8R6-11601-00-00

$70.99

3

PIN, PISTON

8H8-11633-00-00

$36.99

4

CIRCLIP (8H0)

93450-21053-00

$3.85

5

BRG,CYL-CAL ROLLER 25G KY

93310-320G0-00

$47.99

6

CRANKSHAFT ASSY (8AY)

99999-02922-00

Unavailable

7

CRANK 1

99999-02923-00

Unavailable

8

. CRANK 2

82M-11422-00-00

Unavailable

9

. CRANK 3

82M-11432-00-00

Unavailable

10

. CRANK 4

82M-11442-00-00

Unavailable

11

. ROD, CONNECTING

82M-11651-00-00

Unavailable

12

. PIN, CRANK 1

82M-11681-00-00

Unavailable

13

BEARING,CYL.(8AB)

93310-525S1-00

Unavailable

14

WASHER(8AY)

90209-25325-00

$19.99

15

WASHER, CRANK PIN

8AY-11685-00-00

Unavailable

16

BEARING

93306-30718-00

Unavailable

17

BEARING

93306-30718-00

Unavailable

18

WASHER, PLATE (8R9)

90201-357E4-00

Unavailable

19

BEARING (8U9)

93306-20712-00

Unavailable

20

SEAL, LABYRINTH 1

82M-11515-00-00

Unavailable

21

BEARING(8AB)

93305-30601-00

Unavailable

22

CIRCLIP (834)

93440-80023-00

Unavailable

23

OIL SEAL(8AV)

93103-35176-00

Unavailable

24

OIL SEAL(82M)

93103-32153-00

Unavailable

25

KEY, WOODRUFF (8R9)

90280-05033-00

Unavailable

26

NUT

90170-16425-00

Unavailable

27

WASHER(JN5)

92907-16100-00

Unavailable

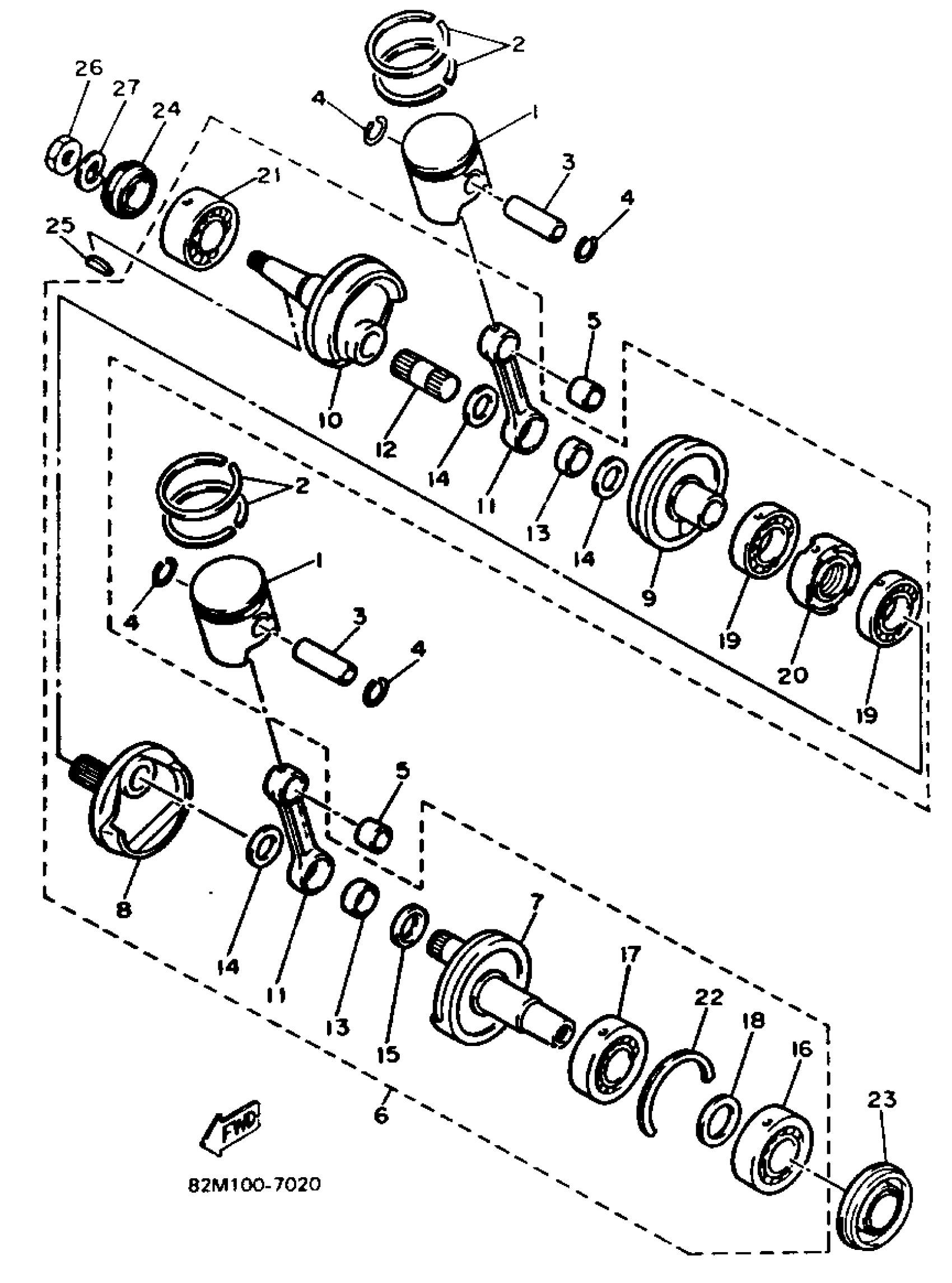

Yamaha EX570ER (EXCITER II LE (ELEC START)) 1991 CRANKSHAFT - PISTON Diagram

PISTON (STD)

PISTON RING SET (STD)

PIN, PISTON

CIRCLIP (8H0)

BRG,CYL-CAL ROLLER 25G KY

CRANKSHAFT ASSY (8AY)

CRANK 1

. CRANK 2

. CRANK 3

. CRANK 4

. ROD, CONNECTING

. PIN, CRANK 1

BEARING,CYL.(8AB)

WASHER(8AY)

WASHER, CRANK PIN

BEARING

BEARING

WASHER, PLATE (8R9)

BEARING (8U9)

SEAL, LABYRINTH 1

BEARING(8AB)

CIRCLIP (834)

OIL SEAL(8AV)

OIL SEAL(82M)

KEY, WOODRUFF (8R9)

NUT

WASHER(JN5)
