Description

Price

1

FAIRING 1

86F-77231-00-00

Unavailable

1

FAIRING 1

87N-77231-00-00

Unavailable

2

SCREW, BINDING

98907-06010-00

$1.65

3

STAY, FAIRING

82M-77241-00-00

Unavailable

4

BOLT, HEXAGON

97017-06030-00

$3.61

5

WASHER, SPRING

92907-06100-00

$4.25

6

WINDSHIELD

8BH-77210-00-XX

Unavailable

7

TRIM,UPPER

87K-77213-00-00

Unavailable

8

WASHER 1

82M-77218-00-00

Unavailable

9

SCREW, PAN HEAD

98502-05006-00

$0.54

10

BRACKET, METER

82M-83519-01-00

Unavailable

11

SCREW, BINDING

98907-06010-00

$1.65

12

COVER, HEADLIGHT

82M-77251-00-00

Unavailable

13

SCREW, BINDING

98907-05016-00

$8.49

14

REFLECTOR ASSEMBLY

81E-85110-00-00

Unavailable

15

BASE, REFLECTOR

82M-85115-00-00

Unavailable

16

BASE, REFLECTOR

82M-85115-50-00

Unavailable

17

WASHER, PLAIN (646)

92990-05600-00

Unavailable

18

NUT, NYLON

95707-05300-00

Unavailable

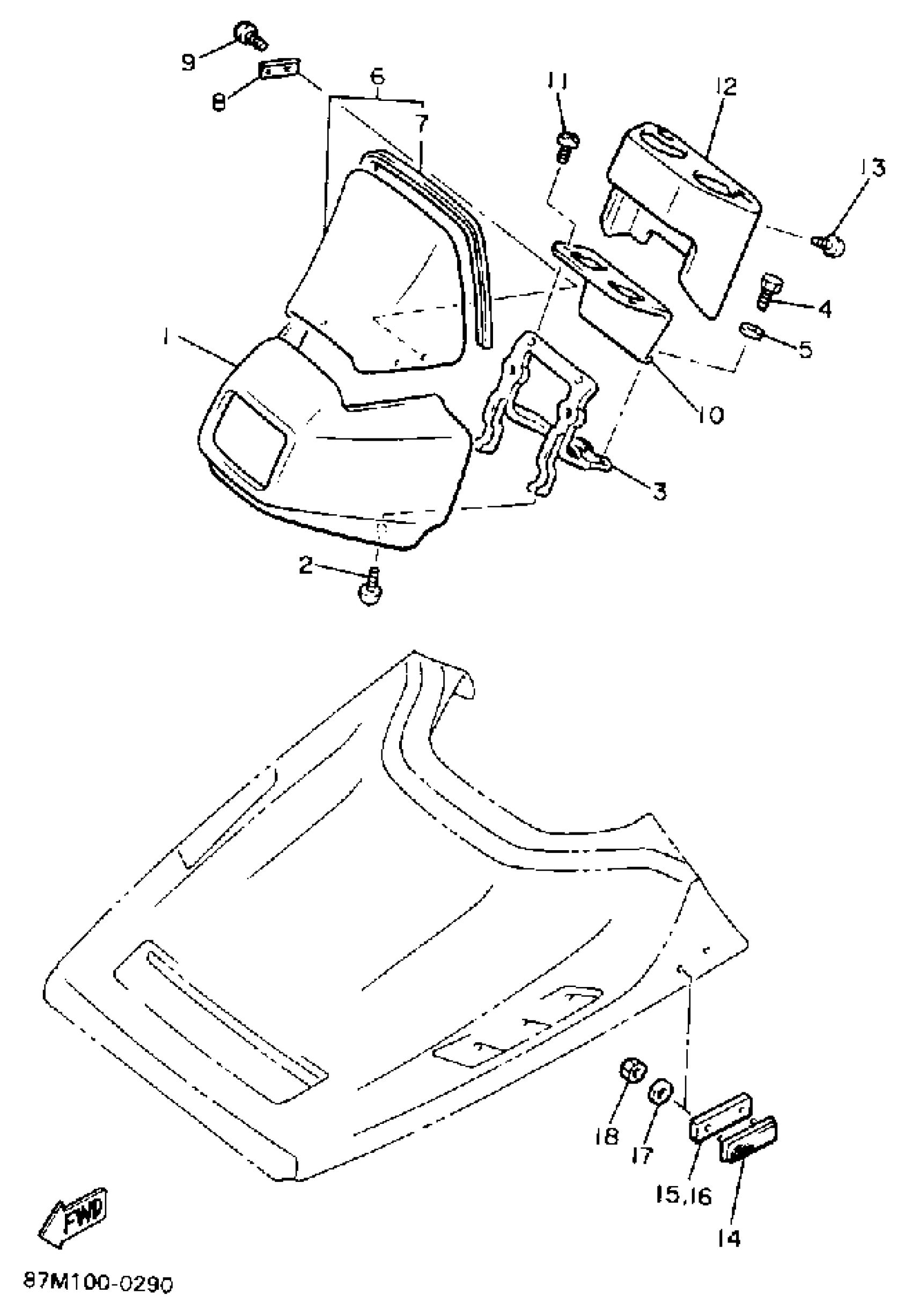

Yamaha EX570EP (EXCITER LE (ELEC START)) 1990 WINDSHIELD Diagram

FAIRING 1

FAIRING 1

SCREW, BINDING

STAY, FAIRING

BOLT, HEXAGON

WASHER, SPRING

WINDSHIELD

TRIM,UPPER

WASHER 1

SCREW, PAN HEAD

BRACKET, METER

SCREW, BINDING

COVER, HEADLIGHT

SCREW, BINDING

REFLECTOR ASSEMBLY

BASE, REFLECTOR

BASE, REFLECTOR

WASHER, PLAIN (646)

NUT, NYLON
