Description

Price

1

TRACK ASSEMBLY

82M-47110-00-00

Unavailable

2

PLATE, REINFORCEMENT

89A-47113-00-00

$5.49

3

METAL, SLIDE

8A5-47115-00-00

Unavailable

4

SHAFT 5

82M-47487-00-00

Unavailable

5

SUSPENTION WHEEL COMP

87M-47320-00-00

$84.99

6

BEARING(8AB)

93306-00444-00

$41.99

7

CIRCLIP(5U8)

99009-42500-00

$8.49

8

NUT, SELF-LOCKING (8BF)

95607-14200-00

$12.49

9

PIN, COTTER

91490-30030-00

$8.49

10

SUSPENSION WHEEL COMP

885-47320-01-00

$72.99

11

BEARING(8AB)

93306-00444-00

$41.99

12

CIRCLIP(5U8)

99009-42500-00

$8.49

13

CIRCLIP(1AR)

99009-20400-00

$8.49

14

BOLT (8K2)

90109-08559-00

$8.49

15

WASHER (8G1)

90201-08681-00

$7.49

16

CIRCLIP(1EY)

99009-22400-00

Unavailable

17

NIPPLE, GREASE

93700-06M03-00

Unavailable

18

SUSPENTION WHEEL COMP

87M-47320-00-00

$84.99

19

BEARING(8AB)

93306-00444-00

$41.99

20

CIRCLIP(5U8)

99009-42500-00

$8.49

21

CIRCLIP(1AR)

99009-20400-00

$8.49

22

REAR AXLE COMP.

8L8-47520-02-00

Unavailable

23

COLLAR

90387-20023-00

Unavailable

24

COLLAR

90387-20022-00

Unavailable

25

GUIDE WHEEL COMP.

8K2-47530-00-00

Unavailable

26

BRG,R-B 62042RS 47MM 110G KY

93306-20417-00

Unavailable

27

CIRCLIP(48Y)

99009-47500-00

Unavailable

28

NUT, SELF-LOCKING (8BF)

95607-14200-00

$12.49

29

PIN, COTTER

91490-30030-00

$8.49

30

COLLAR

90387-204R3-00

Unavailable

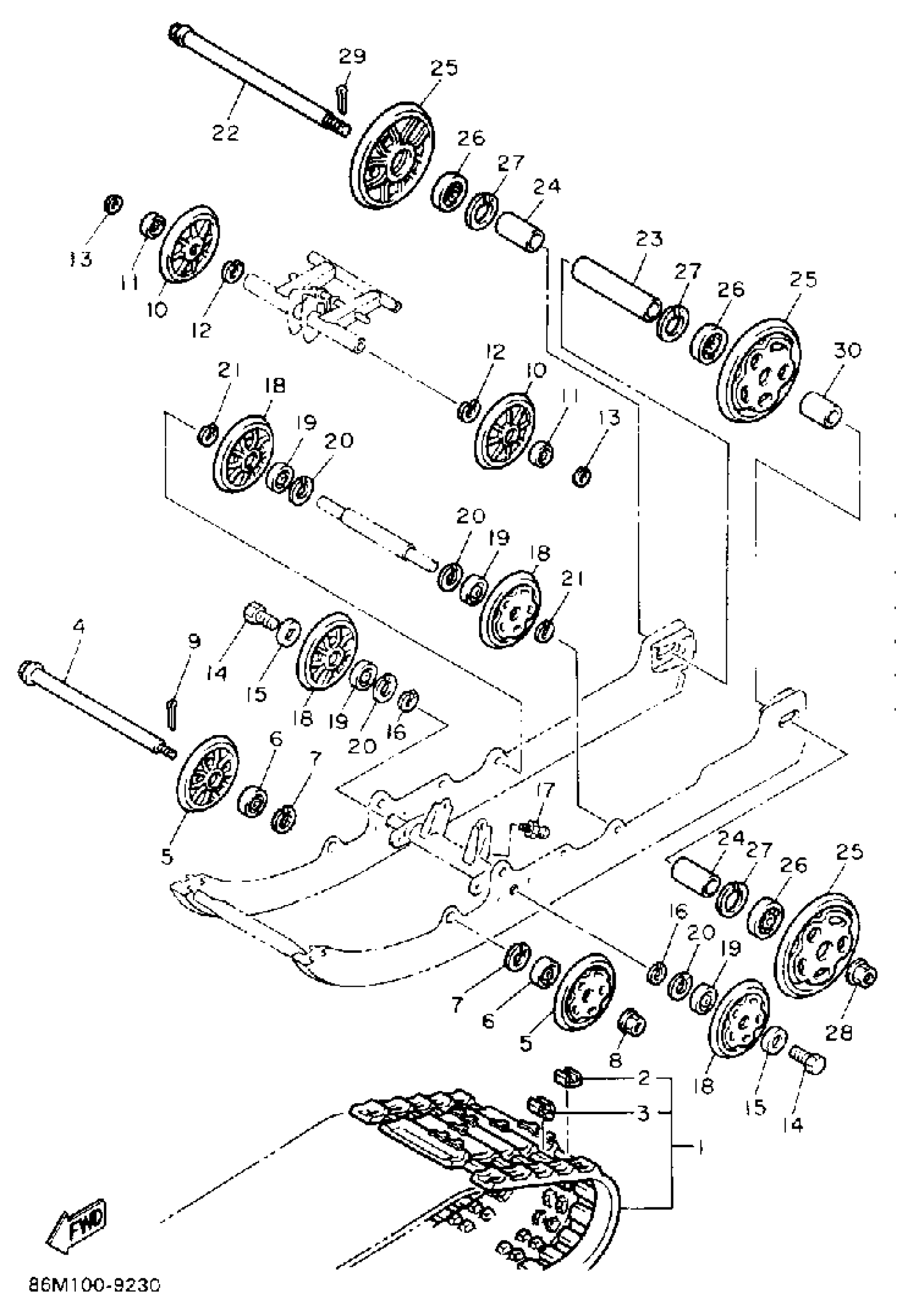

Yamaha EX570EP (EXCITER LE (ELEC START)) 1990 TRACK SUSPENSION 1 Diagram

TRACK ASSEMBLY

PLATE, REINFORCEMENT

METAL, SLIDE

SHAFT 5

SUSPENTION WHEEL COMP

BEARING(8AB)

CIRCLIP(5U8)

NUT, SELF-LOCKING (8BF)

PIN, COTTER

SUSPENSION WHEEL COMP

BEARING(8AB)

CIRCLIP(5U8)

CIRCLIP(1AR)

BOLT (8K2)

WASHER (8G1)

CIRCLIP(1EY)

NIPPLE, GREASE

SUSPENTION WHEEL COMP

BEARING(8AB)

CIRCLIP(5U8)

CIRCLIP(1AR)

REAR AXLE COMP.

COLLAR

COLLAR

GUIDE WHEEL COMP.

BRG,R-B 62042RS 47MM 110G KY

CIRCLIP(48Y)

NUT, SELF-LOCKING (8BF)

PIN, COTTER

COLLAR
