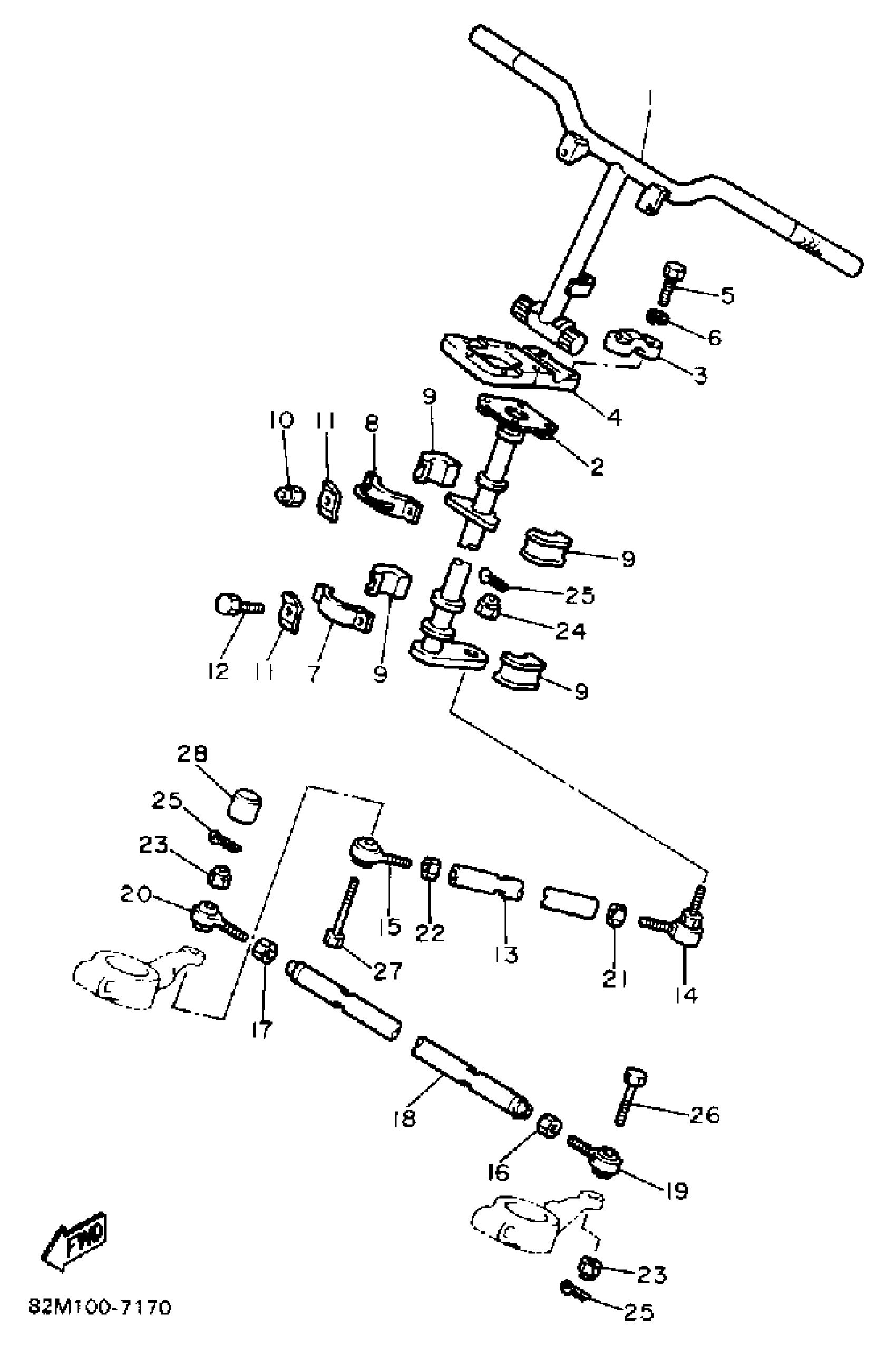

Yamaha EX570EP (EXCITER LE (ELEC START)) 1990 STEERING Diagram

#

Description
Price

1

COLUMN, STEERING

82M-23811-01-00

Unavailable

2

COLUMN, STEERING 2

8AY-23813-00-00

Unavailable

3

HOLDER, HANDLE UPPER

1E6-23441-00-00

$27.99

4

HOLDER, HANDLE UPPER

8V0-23814-01-00

Unavailable

5

BOLT, HEXAGON

97017-08055-00

$9.49

6

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

7

BRACKET, STEERING LOWER

84M-23868-00-00

Unavailable

8

HOLDER, BEARING

84M-23872-00-00

Unavailable

9

BEARING, STEERING

8F3-23812-00-00

Unavailable

10

NUT, NYLON

95717-08300-00

$2.70

11

WASHER, LOCK 1

8AC-23894-01-00

$4.78

12

BOLT, HEXAGON

97017-08020-00

$9.49

13

ROD, STEERING RELAY

82M-23821-00-00

Unavailable

14

JOINT, UNIVERSAL 1

86X-23841-00-00

$59.99

15

JOINT, UNIVERSAL 3

87S-23847-01-00

$50.99

16

NUT (682)

95380-10700-00

Unavailable

17

NUT, HEXAGON (8A5)

90170-10186-00

Unavailable

18

ROD,TIE

89X-23831-00-00

Unavailable

19

JOINT, UNIVERSAL 2

87S-23845-01-00

Unavailable

20

JOINT, UNIVERSAL 3

87S-23847-01-00

$50.99

21

NUT (682)

95380-10700-00

Unavailable

22

NUT, HEXAGON (8A5)

90170-10186-00

Unavailable

23

NUT, NYLON

95707-10300-00

Unavailable

24

NUT, SELF-LOCKING (8J8)

90185-10085-00

Unavailable

25

PIN, COTTER

91490-25020-00

Unavailable

26

BOLT, WITH HOLE

90102-10031-00

Unavailable

27

BOLT

90109-10767-00

Unavailable

28

SPACER

82M-23858-00-00

Unavailable
