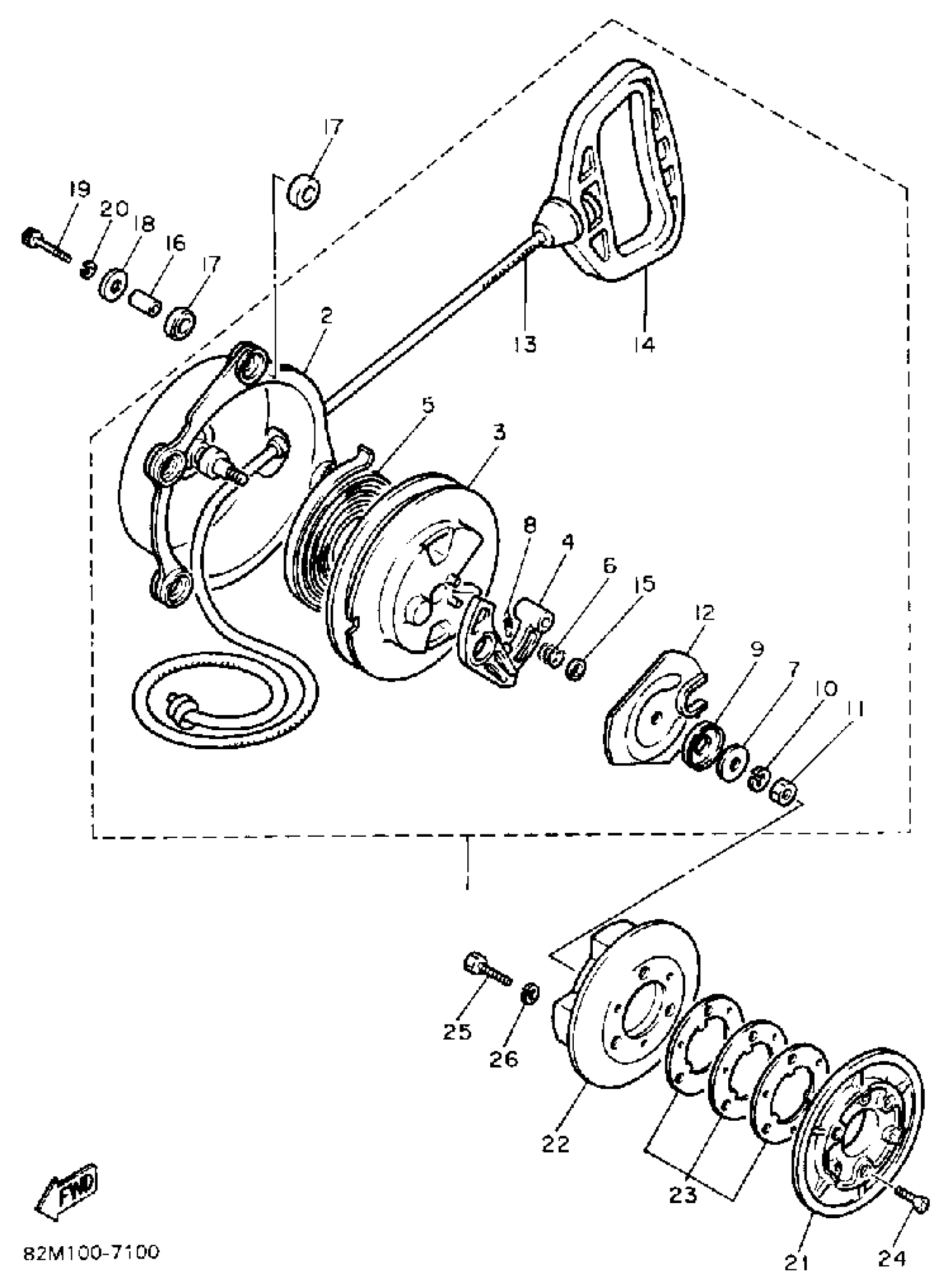

Yamaha EX570EP (EXCITER LE (ELEC START)) 1990 STARTER Diagram

#

Description
Price

1

STARTER ASSEMBLY

99999-02035-00

Unavailable

2

. CASE, STARTER

82M-15711-00-00

Unavailable

3

DRUM, SEAVE

8F3-15714-01-00

$48.99

4

PAWL, DRIVE

8F3-15741-01-00

$28.99

5

SPRING, STARTER

8F3-15713-01-00

$48.99

6

SPRING, DRIVE PLATE

8F3-15715-00-00

$9.99

7

WASHER, THRUST

8F3-15739-01-00

$11.99

8

SPRING, RETURN

8F3-15734-00-00

$5.49

9

. PLATE, DRIVE

82M-15716-00-00

Unavailable

10

WASHER, SPRING

92995-06100-00

Unavailable

11

NUT(650)

95380-06700-00

$8.49

12

WASHER, THRUST

8G5-15739-00-00

$9.49

13

WIRE, STARTER (BRAIDED)

89A-15751-00-00

$33.99

14

HANDLE, STARTER

8F3-15755-00-00

$29.99

15

COLLOR

82M-15779-00-00

$8.99

16

COLLAR

90387-061F8-00

Unavailable

17

BUSH (8M6)

90385-12036-00

Unavailable

18

WASHER, PLATE

90201-06380-00

Unavailable

19

BOLT(3RV)

97014-06035-00

Unavailable

20

WASHER, SPRING

92995-06100-00

Unavailable

21

PULLEY 1

82M-12618-01-00

Unavailable

22

PULLEY, STARTER

82M-15723-00-00

Unavailable

23

SHIM

8CA-15721-00-00

Unavailable

23

SHIM

8CA-15721-00-00

Unavailable

24

SCREW, FLAT

98707-06020-00

Unavailable

25

BOLT, HEXAGON

97017-08030-00

Unavailable

26

.. WASHER, PLATE

92990-08600-00

Unavailable
