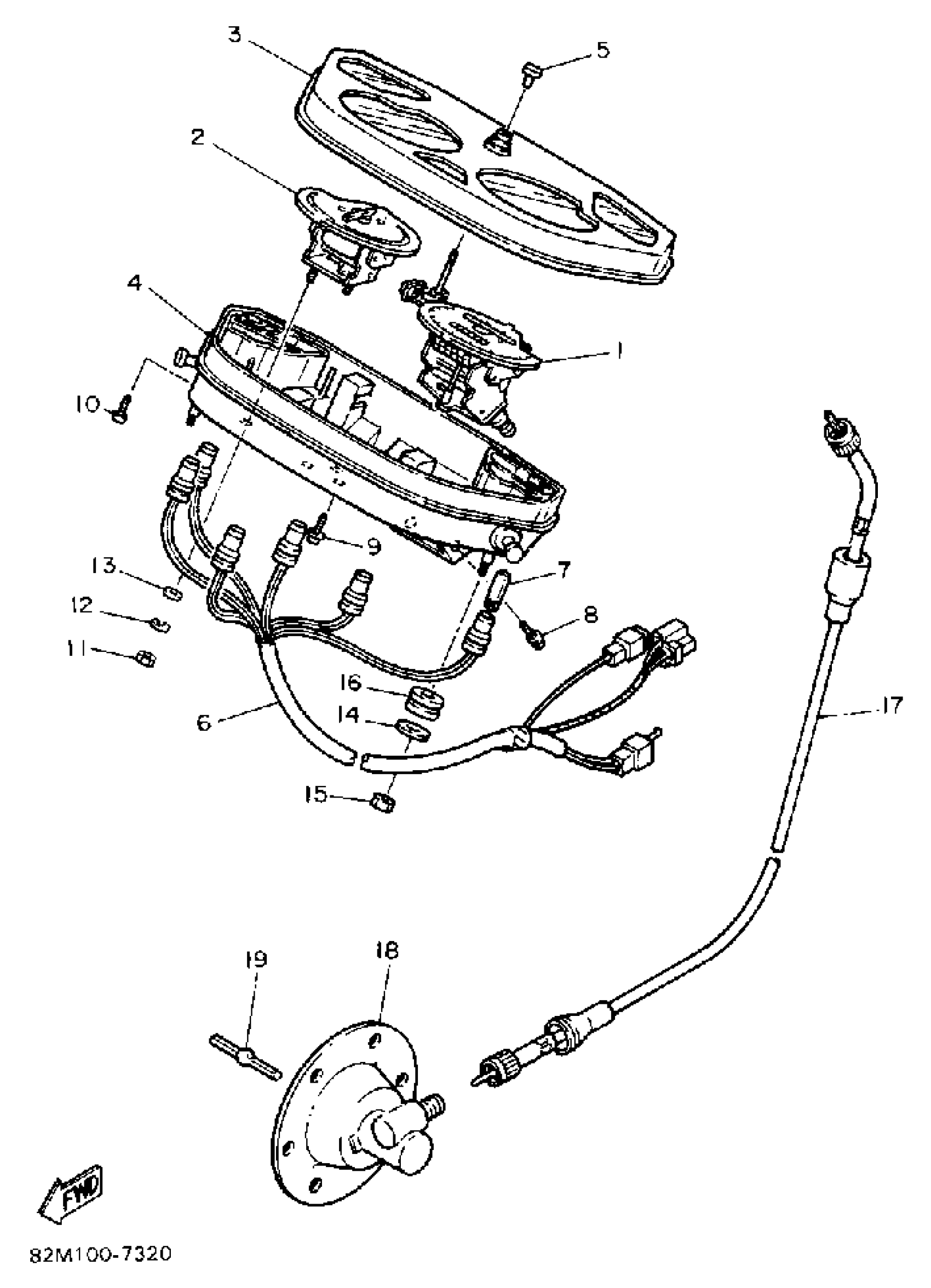

Yamaha EX570EP (EXCITER LE (ELEC START)) 1990 METER Diagram

#

Description
Price

1

SPEEDOMETER ASSY

8CR-83580-40-00

Unavailable

2

TACHOMETER ASSEMBLY

88R-83540-20-00

Unavailable

3

COVER,METER

88R-83559-20-00

Unavailable

4

CASE, INNER

82M-8353H-01-00

Unavailable

5

KNOB, TRIP METER

29L-83578-00-00

Unavailable

6

SOCKET CORD ASSY

88R-83509-20-00

Unavailable

7

BULB, MTR.12V3.4W

4G1-84744-00-XX

Unavailable

8

SCREW, PAN HEAD (31A)

90167-04021-00

Unavailable

9

SCREW, TAPPING (10M)

90164-04009-00

$7.49

10

NUT(6TA)

95307-04600-00

$8.49

11

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

12

YBS66-4 WASHER, PLAIN

92990-04200-00

$1.86

13

WASHER, PLATE

90201-06380-00

$0.60

14

NUT, HEXAGON

95380-06600-00

Unavailable

15

DAMPER

5J0-83513-00-00

$15.49

16

SPEEDOMETER CABLE ASSEMBLY

82M-83550-00-00

Unavailable

17

METER GEAR HOUSING COMP.

8L9-47700-00-00

Unavailable

18

JOINT

8K4-47715-00-00

Unavailable
