Description

Price

1

FAIRING 1

84N-77231-00-00

Unavailable

2

SCREW, BINDING

98907-06010-00

$1.65

3

STAY, FAIRING

82M-77241-00-00

Unavailable

4

BOLT, HEXAGON

97017-06030-00

$3.61

5

WASHER, SPRING

92907-06100-00

$4.25

6

WINDSHIELD

8BH-77210-00-XX

Unavailable

7

TRIM,UPPER

87K-77213-00-00

Unavailable

8

. FASTENER

80V-77223-00-00

Unavailable

9

WASHER 1

82M-77218-00-00

Unavailable

10

SCREW, PAN HEAD

98502-05006-00

$0.54

11

BRACKET, METER

82M-83519-01-00

Unavailable

12

SCREW, BINDING

98907-06010-00

$1.65

13

COVER, HEADLIGHT

82M-77251-00-00

Unavailable

14

SCREW, BINDING

98907-05016-00

$8.49

15

REFLECTOR ASSEMBLY

81E-85110-00-00

Unavailable

16

BASE, REFLECTOR

82M-85115-00-00

Unavailable

17

BASE, REFLECTOR

82M-85115-50-00

Unavailable

18

WASHER, PLAIN (646)

92990-05600-00

Unavailable

19

NUT, NYLON

95707-05300-00

Unavailable

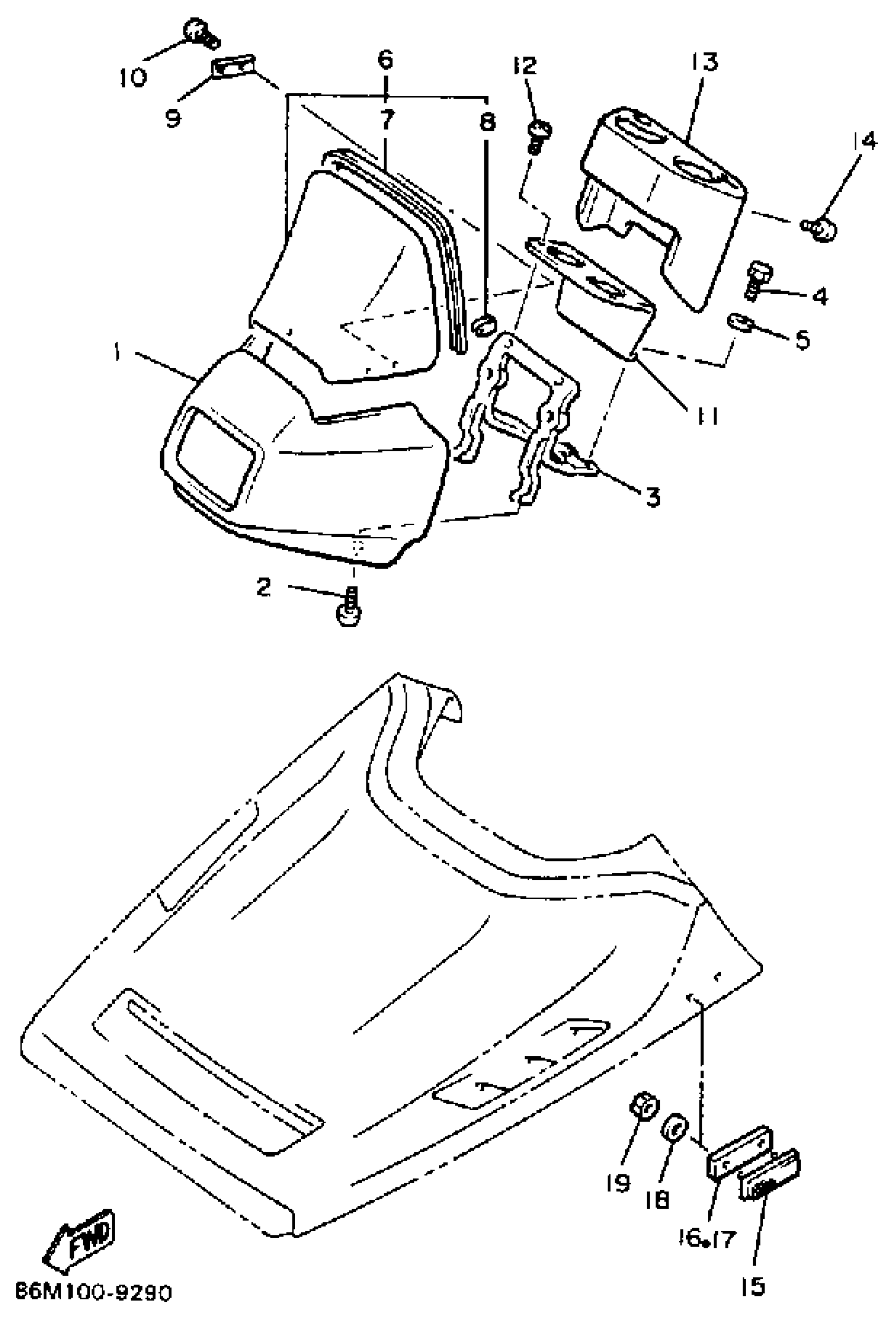

Yamaha EX570EN (EXCITER DELUXE (ELEC START)) 1989 WINDSHIELD Diagram

FAIRING 1

SCREW, BINDING

STAY, FAIRING

BOLT, HEXAGON

WASHER, SPRING

WINDSHIELD

TRIM,UPPER

. FASTENER

WASHER 1

SCREW, PAN HEAD

BRACKET, METER

SCREW, BINDING

COVER, HEADLIGHT

SCREW, BINDING

REFLECTOR ASSEMBLY

BASE, REFLECTOR

BASE, REFLECTOR

WASHER, PLAIN (646)

NUT, NYLON
