- EX570EN (EXCITER DELUXE (ELEC START)) 1989
TRACK SUSPENSION 2

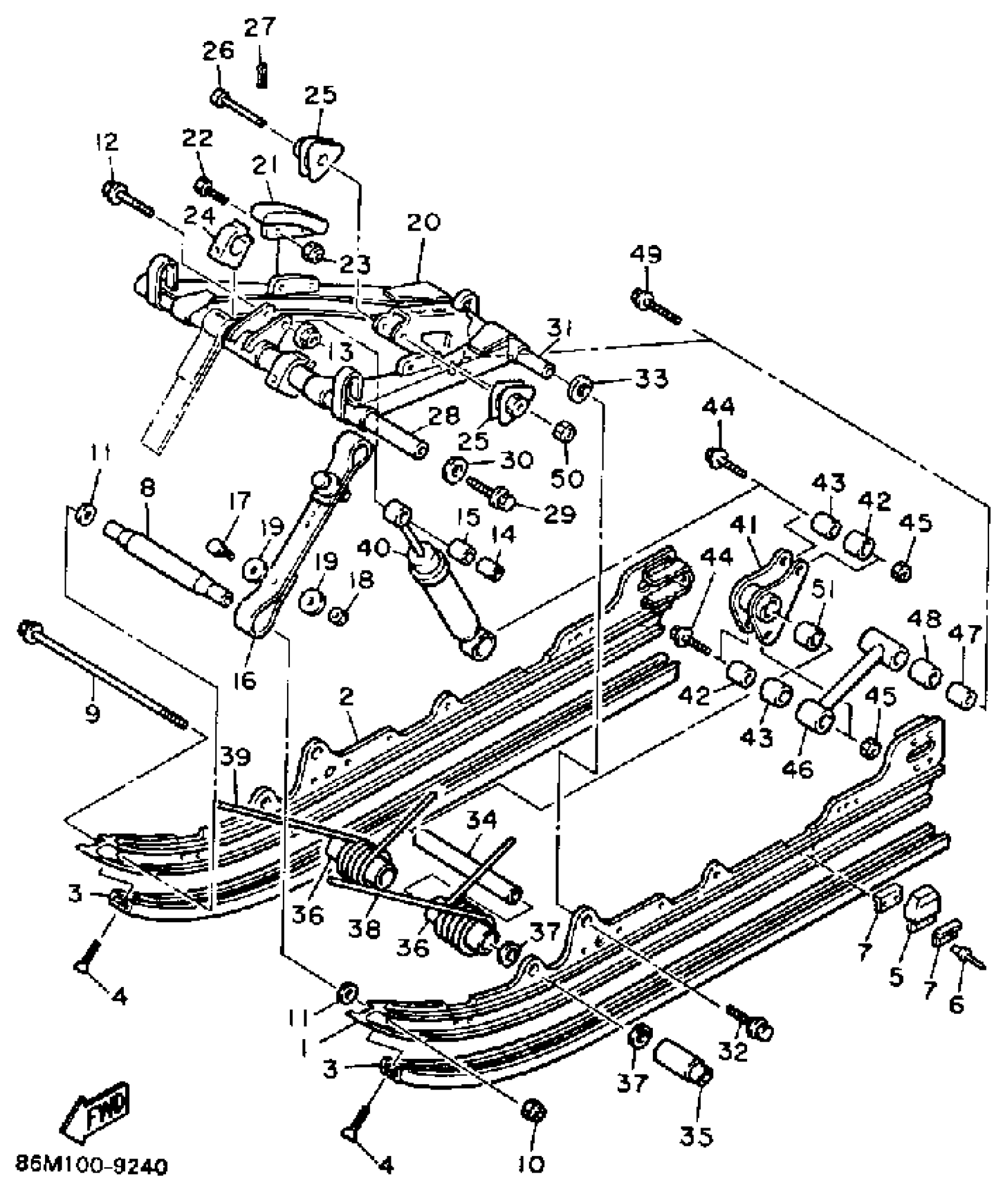

Yamaha EX570EN (EXCITER DELUXE (ELEC START)) 1989 TRACK SUSPENSION 2 Diagram
#
1
FRAME, SLIDING 1
86M-W4741-00-00
Unavailable
2
FRAME, SLIDING 1
86M-W4741-00-00
Unavailable
3
SLIDING RUNNER (82M-47421-00)
82M-47421-01-XX
Unavailable
4
SCREW, CROSSRECESS (8G6)
90151-06005-00
$9.49
5
DAMPER 1
83R-47456-00-00
Unavailable
6
RIVET, BLIND (8K4)
90267-48062-00
$3.66
7
PLATE, DAMPER
8K2-47458-01-00
$4.77
8
BRACKET, 1
86M-47415-00-00
Unavailable
9
BOLT, WASHER BASED(51X)
90105-08346-00
$11.49
10
NUT, SELF-LOCKING
90185-08169-00
$8.49
11
.. WASHER, PLATE
92990-08600-00
Unavailable
12
BOLT, FLANGE
95814-08045-00
$4.29
13
NUT, NYLON
95717-08300-00
$2.70
14
COLLAR
90387-081U4-00
Unavailable
15
BUSH, SOLID
90380-12169-00
Unavailable
16
STOPPER 1
86M-47495-00-00
Unavailable
17
BOLT, HEXAGON
97017-06025-00
Unavailable
18
NUT, NYLON
95707-06300-00
Unavailable
19
WASHER, PLATE
90201-06747-00
Unavailable
20
ARM, PIVOT 1
86M-47331-00-00
Unavailable
21
RUNNER, SLIDING 2
8F3-47422-01-00
Unavailable
22
BOLT, HEXAGON
97017-06025-00
Unavailable
23
NUT, NYLON
95707-06300-00
Unavailable
24
HOOK 2
8V0-47447-01-00
Unavailable
25
HOOK 3
8V0-47448-00-00
Unavailable
26
PIN, CLEVIS (90240-12107-00)
90240-12136-00
Unavailable
27
PIN, COTTER
91490-30030-00
Unavailable
28
SHAFT 1
8A5-47465-02-00
Unavailable
29
BOLT (8V0)
90109-10771-00
Unavailable
30
WASHER, PLATE (2H7)
90201-10669-00
Unavailable
31
SHAFT 3
82M-47485-02-00
Unavailable
32
BOLT, FLANGE
95817-10030-00
Unavailable
33
COLLAR (8U7)
90387-105G6-00
Unavailable
34
COLLAR
90387-160M7-00
Unavailable
35
COLLAR
90387-166M8-00
Unavailable
36
COLLAR
86M-47319-00-00
Unavailable
37
WASHER, PLATE
90201-161E5-00
Unavailable
38
SPRING, FRONT .1
86M-47471-00-00
Unavailable
39
SPRING, FRONT .2
86M-47472-00-00
Unavailable
40
SHOCK ABSORBER 2
86M-47481-00-00
Unavailable
41
BRACKET 4
86M-47418-00-00
Unavailable
42
COLLAR(82M)
90387-084R5-00
Unavailable
43
BUSH, SOLID
90380-12161-00
Unavailable
44
BOLT, FLANGE
95817-08035-00
Unavailable
45
NUT, SELF-LOCKING (3Y2)
90185-08089-00
Unavailable
46
JOINT
86M-47493-00-00
Unavailable
47
COLLAR (878)
90387-08262-00
Unavailable
48
BUSH
90386-12167-00
Unavailable
49
BOLT, FLANGE
95817-08055-00
Unavailable
50
NUT, NYLON
95717-08300-00
$2.70
51
BUSH, PIVOT
86M-47371-00-00
Unavailable
