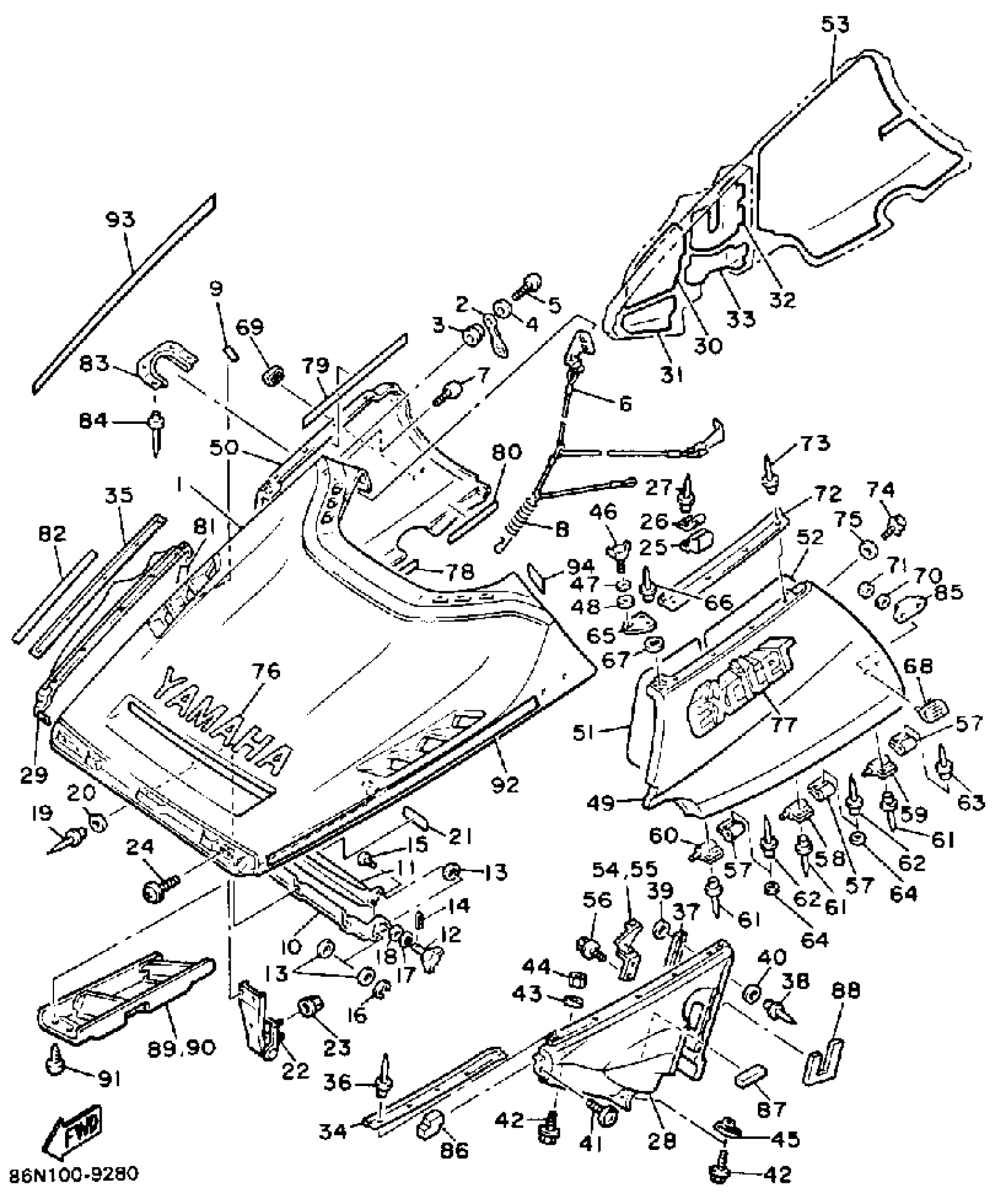

Yamaha EX570EN (EXCITER DELUXE (ELEC START)) 1989 SHROUD Diagram
#
1
SHROUD ASSEMBLY
84N-W7711-02-00
Unavailable
2
BODY, LATCH 1
8V0-77171-00-00
$21.99
3
COLLAR (420)
90387-06241-00
$8.49
4
WASHER, PLATE 8221447500
90201-06057-00
$5.60
5
SCREW, BINDING
98907-06030-00
$8.49
6
STOPPER, SHROUD
82M-77118-00-00
Unavailable
7
SCREW, BINDING
98907-06016-00
$9.49
8
CLAMP, ROD
80L-77159-00-00
Unavailable
9
TAPE 4
84M-7717H-00-00
Unavailable
10
STAY 1
82M-77125-00-00
Unavailable
11
STAY 2
82M-77126-00-00
Unavailable
12
BOLT, WING(8W1)
90122-05022-00
$7.49
13
. WASHER, PLATE
90202-05088-00
Unavailable
14
PIN, HAIR 6474123500
90468-10003-00
$1.96
15
PIN
90249-05136-00
Unavailable
16
CIRCLIP (EU0)
99080-04600-00
Unavailable
17
WASHER(3SX)
92907-05100-00
Unavailable
18
WASHER, PLAIN LARGE
92907-05200-00
Unavailable
19
RIVET (856)
90267-48014-00
Unavailable
20
WASHER, PLATE (34L)
90201-043H7-00
Unavailable
21
LABEL,WARNING 2
8BE-77762-00-00
Unavailable
22
HINGE ASSEMBLY
82M-77140-00-00
Unavailable
23
NUT, FLANGE(7NB)
95780-06500-00
Unavailable
24
SCREW, W/WASHER (4L0)
90159-06060-00
Unavailable
25
STOPPER
8V0-77188-00-00
Unavailable
26
WASHER, SPECIAL
8V0-77116-01-00
Unavailable
27
RIVET, BLIND
90267-40029-00
Unavailable
28
HOOD 1
84N-21982-00-00
Unavailable
29
HOOD 2
84N-21983-00-00
Unavailable
30
LINING, SHROUD 2
82M-77262-00-00
Unavailable
31
LINING, SHROUD 3
82M-77263-01-00
Unavailable
32
LINING, SHROUD 4
82M-77264-00-00
Unavailable
33
LINING, SHROUD 5
82M-77265-00-00
Unavailable
34
BUSH, RUBBER 1
82M-77515-00-00
Unavailable
35
BUSH, RUBBER 1
8V0-77515-01-00
Unavailable
36
RIVET(81E)
90269-05055-00
Unavailable
37
TRIM 1
82M-2196T-00-00
Unavailable
38
RIVET, BLIND (8K1)
90267-40076-00
Unavailable
39
WASHER, PLATE(26H)
90201-044H9-00
Unavailable
40
WASHER, PLATE (8M6)
90201-047A2-00
Unavailable
41
SCREW, WITH WASHER
90159-05137-00
Unavailable
42
BOLT, WITH WASHER
90119-06226-00
Unavailable
43
WASHER(6TA)
92907-06200-00
Unavailable
44
NUT, NYLON
95707-06300-00
Unavailable
45
NUT
83R-77144-00-00
Unavailable
46
BOLT, WING (36F)
90122-06020-00
Unavailable
47
WASHER, PLATE
90201-06020-00
Unavailable
48
WASHER, PLATE 1412342700
90202-06008-00
Unavailable
49
HOOD 3
84N-2197H-00-00
Unavailable
50
HOOD 4
84N-2198H-00-00
Unavailable
51
DAMPER, NOISE 14
82M-77274-01-00
Unavailable
52
DAMPER, NOISE 15
82M-77275-00-00
Unavailable
53
LINING, SHROUD 6
82M-77266-00-00
Unavailable
54
BRACKET 3
82M-2196F-00-00
Unavailable
55
BRACKET 4
82M-2196G-00-00
Unavailable
56
BOLT, FLANGE
95812-06010-00
Unavailable
57
BRACKET, 1
8V0-2194X-00-00
Unavailable
58
BRACKET 2
88R-2195X-00-00
Unavailable
59
BRACKET 2
88R-2195X-00-00
Unavailable
60
BRACKET 2
82M-2195X-00-00
Unavailable
61
RIVET, BLIND (8L0)
90267-48059-00
Unavailable
62
RIVET, BLIND
90267-48081-00
Unavailable
63
RIVET, BLIND (8J5)
90267-48057-00
Unavailable
64
WASHER, PLATE
90201-04027-00
Unavailable
65
STAY 3
82M-77127-00-00
Unavailable
66
RIVET, BLIND (8H4)
90267-48053-00
Unavailable
67
WASHER, PLATE
90201-04027-00
Unavailable
68
PROTECTOR 1
8V0-77551-00-00
Unavailable
69
PROTECTOR 2
8V0-77552-00-00
Unavailable
70
WASHER, PLATE 8067717800
90201-05029-00
Unavailable
71
NUT, NYLON
95707-05300-00
Unavailable
72
BUSH, RUBBER 2
82M-77516-00-00
Unavailable
73
RIVET(81E)
90269-05055-00
Unavailable
74
HOLDER, LATCH
8V0-77175-00-00
Unavailable
75
PLATE
4U5-2176E-00-00
Unavailable
76
ORNAMENT 1
82M-77163-00-00
Unavailable
77
ORNAMENT 2
86N-77164-00-00
Unavailable
78
TAPE 1
82M-7717E-00-00
Unavailable
79
TAPE 2
82M-7717F-01-00
Unavailable
80
TAPE 3
82M-7717G-01-00
Unavailable
81
TAPE 3
8V0-7717G-00-00
Unavailable
82
TAPE 1
8V0-7717E-01-00
Unavailable
83
PATCH 10
82M-21997-00-00
Unavailable
84
RIVET, BLIND
90267-48101-00
Unavailable
85
DAMPER 1
82M-77198-01-00
Unavailable
86
TAPE 4
84M-7717H-00-00
Unavailable
87
TAPE, 5
84M-7717J-00-00
Unavailable
88
DAMPER, NOISE 18
84M-77278-00-00
Unavailable
89
PLATE 1
84M-77185-00-00
Unavailable
90
PLATE 2
84M-77186-00-00
Unavailable
91
SCREW, TRUSS TAP.
97707-50012-00
Unavailable
92
EMBLEM 3
86N-77353-00-00
Unavailable
93
EMBLEM 4
86N-77354-00-00
Unavailable
94
INDICATOR, COCK
86M-24153-00-00
Unavailable
