PRIMARY SHEAVE

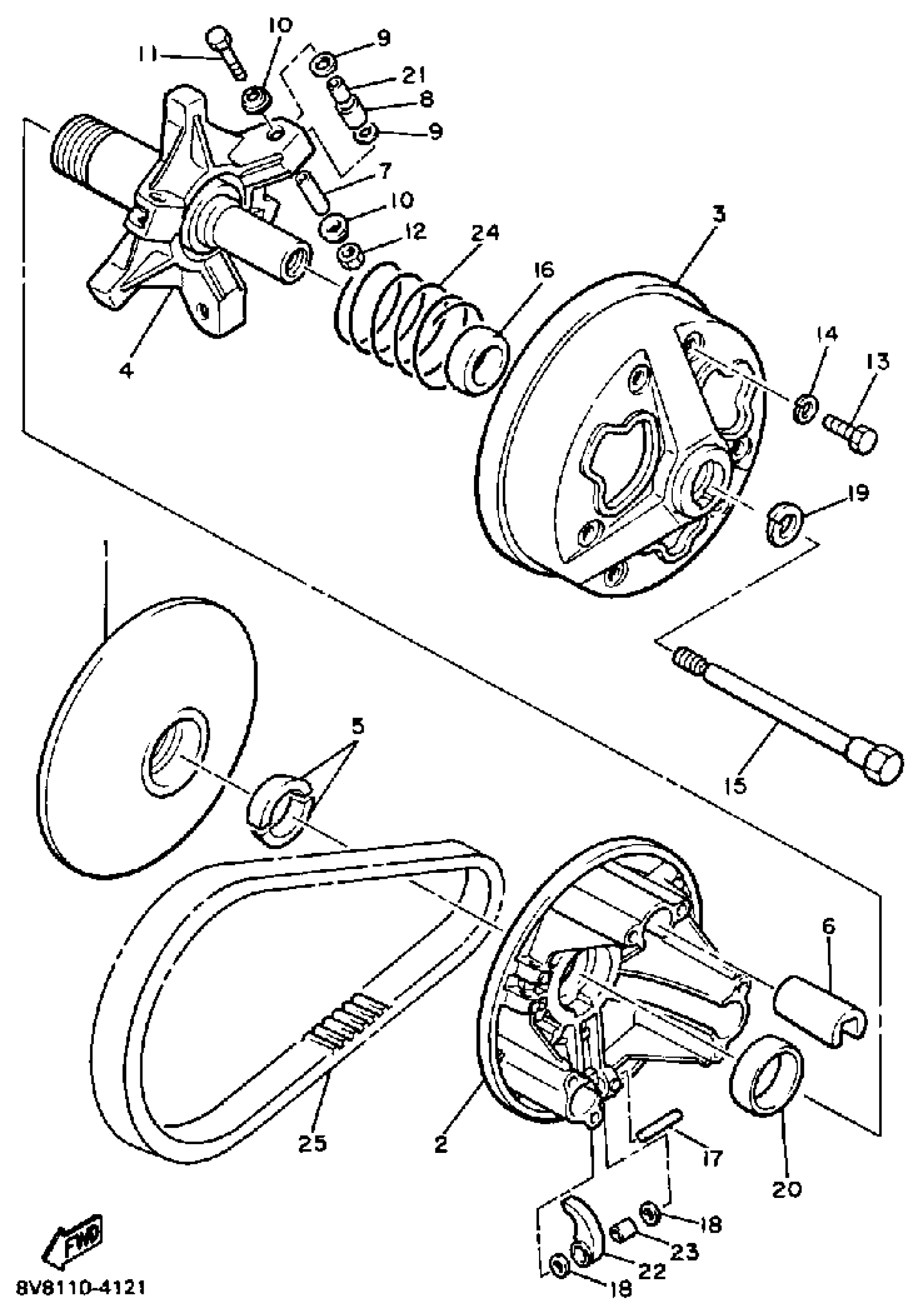

Yamaha EX570EN (EXCITER DELUXE (ELEC START)) 1989 PRIMARY SHEAVE Diagram
#
1
SHEAVE, PRI FIXEDFIXED
82M-17611-00-00
Unavailable
2
. SHEAVE, PRIMARY SLIDING
8V0-17621-01-00
Unavailable
3
CAP
8V0-17631-00-00
Unavailable
4
SPIDER COMPLETE
82M-17640-02-00
Unavailable
5
STOPPER
8V0-17639-00-00
$14.99
6
SLIDER
88X-17653-00-00
$14.49
7
COLLAR(83R)
90387-057W5-00
$14.99
8
ROLLER, WITH BUSH
87M-W176B-10-00
$46.99
9
WASHER, PLATE(87G)
90202-08205-00
$8.49
10
WASHER, CONICAL SPRING (8V8)
90208-05036-00
$9.49
11
BOLT, HEXAGON
97027-05035-00
Unavailable
12
NUT, U
95617-05100-00
$9.49
13
CLUTCH TUNE-UP KIT
82M-00000-51-00
Unavailable
13
PRIMARY SHEAVE ASY
82M-17601-19-00
Unavailable
13
BOLT, HEXAGON
97017-06030-00
$3.61
14
WASHER, SPRING
92995-06100-00
Unavailable
15
BOLT (L=156.5MM)
8V0-17647-10-00
Unavailable
16
BUSH(83R)
90389-28032-00
Unavailable
17
PIN, DOWEL (8V8)
93607-44190-00
Unavailable
18
WASHER, PLATE (8V8)
90201-077F5-00
Unavailable
19
WASHER(JN5)
92907-16100-00
Unavailable
20
BUSH (81H)
90389-40029-00
Unavailable
21
BUSH(83R)
90386-08166-00
Unavailable
22
WEIGHT, WITH BUSH
82M-W176A-90-00
Unavailable
22
WEIGHT, WITH BUSH
87M-W176A-00-00
Unavailable
23
BUSH(83V)
90386-07152-00
Unavailable
24
SPRING, COMPRESSION
90501-500F5-00
Unavailable
24
SPRING, COMPRESSION
90501-55456-00
Unavailable
25
CLUTCH TUNE-UP KIT
82M-00000-51-00
Unavailable
25
PRIMARY SHEAVE ASY
82M-17601-19-00
Unavailable
25
V-BELT
89X-17641-01-00
Unavailable
