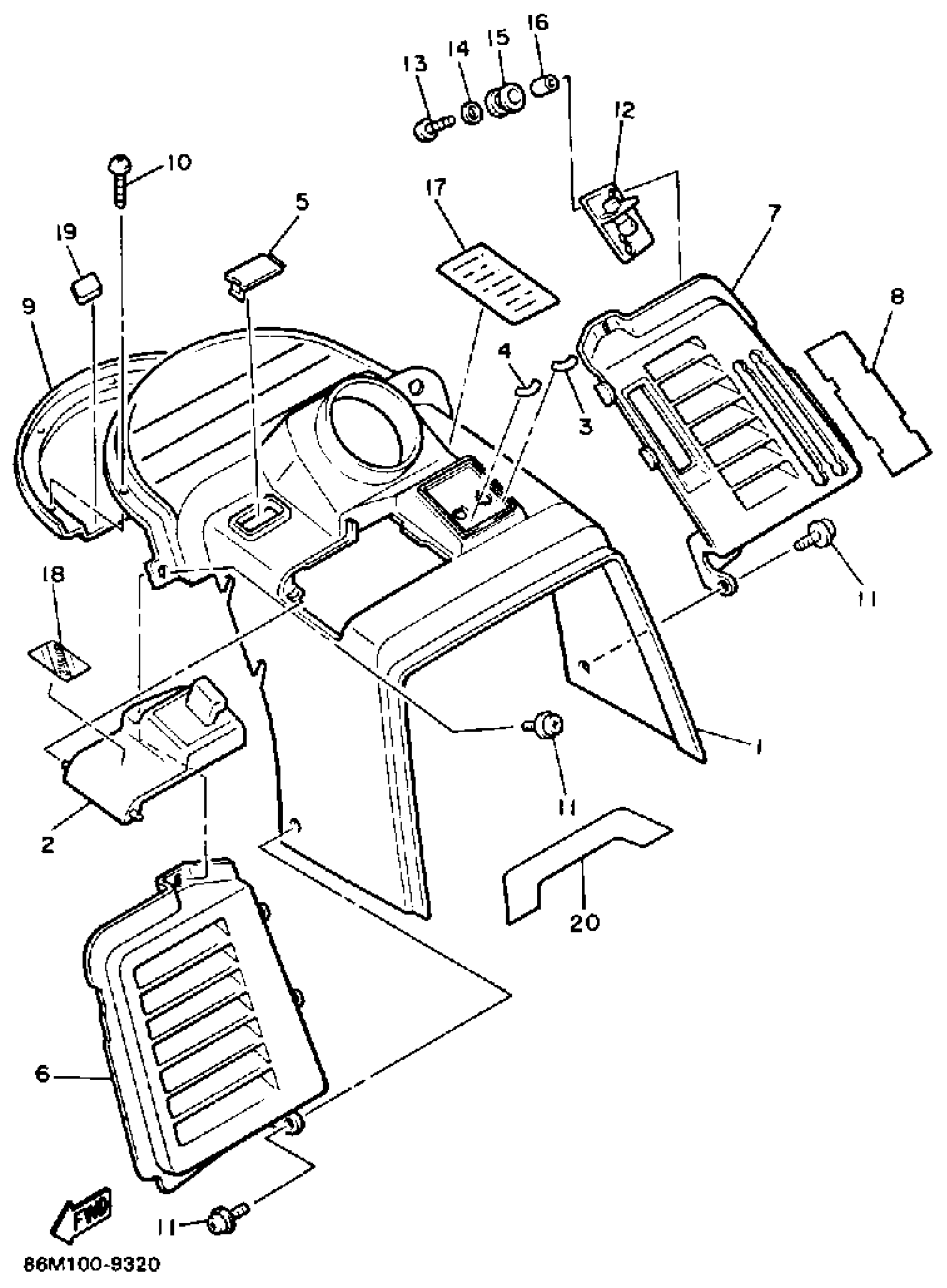

Yamaha EX570EN (EXCITER DELUXE (ELEC START)) 1989 INSTRUMENT PANEL Diagram

#

Description
Price

1

PANEL, INSTRUMENT

86M-77711-01-00

Unavailable

2

PANEL, INSTRUMENT

8X9-77712-01-00

Unavailable

3

INDICAT0R 1

8V0-77741-20-00

Unavailable

4

INDICATOR 2

8U9-77742-00-00

Unavailable

5

GROMMET, INSTRUMENT PANEL

8X9-77740-00-00

Unavailable

6

LOUVER 1

8X9-77131-00-00

Unavailable

7

LOUVER 2

8X9-77132-00-00

Unavailable

8

REFLECTOR 1

8V0-7716E-00-00

Unavailable

9

SHIELD 1

8V0-77731-00-00

Unavailable

10

SCREW, BINDING

98907-05012-00

$8.49

11

SCREW, WITH WASHER

90159-05137-00

Unavailable

12

BRACKET 1

80L-77721-00-00

Unavailable

13

SCREW, PAN TAP.2 SLIT

97707-50620-00

$8.49

14

WASHER PLATE 829771780000

90201-05033-00

$10.49

15

GROMMET

90480-13014-00

$8.49

16

COLLAR(82M)

90387-050T5-00

Unavailable

17

LABEL, WARNING 3

80L-77763-00-00

Unavailable

18

ORMNT, INSTR PNL 1INSTRUMENT PANEL 1

86N-77715-00-00

Unavailable

19

SHIELD 1

81H-77731-00-00

Unavailable

20

DAMPER, NOISE 16

82M-77276-00-00

Unavailable
