SHROUD-WINDSHIELD

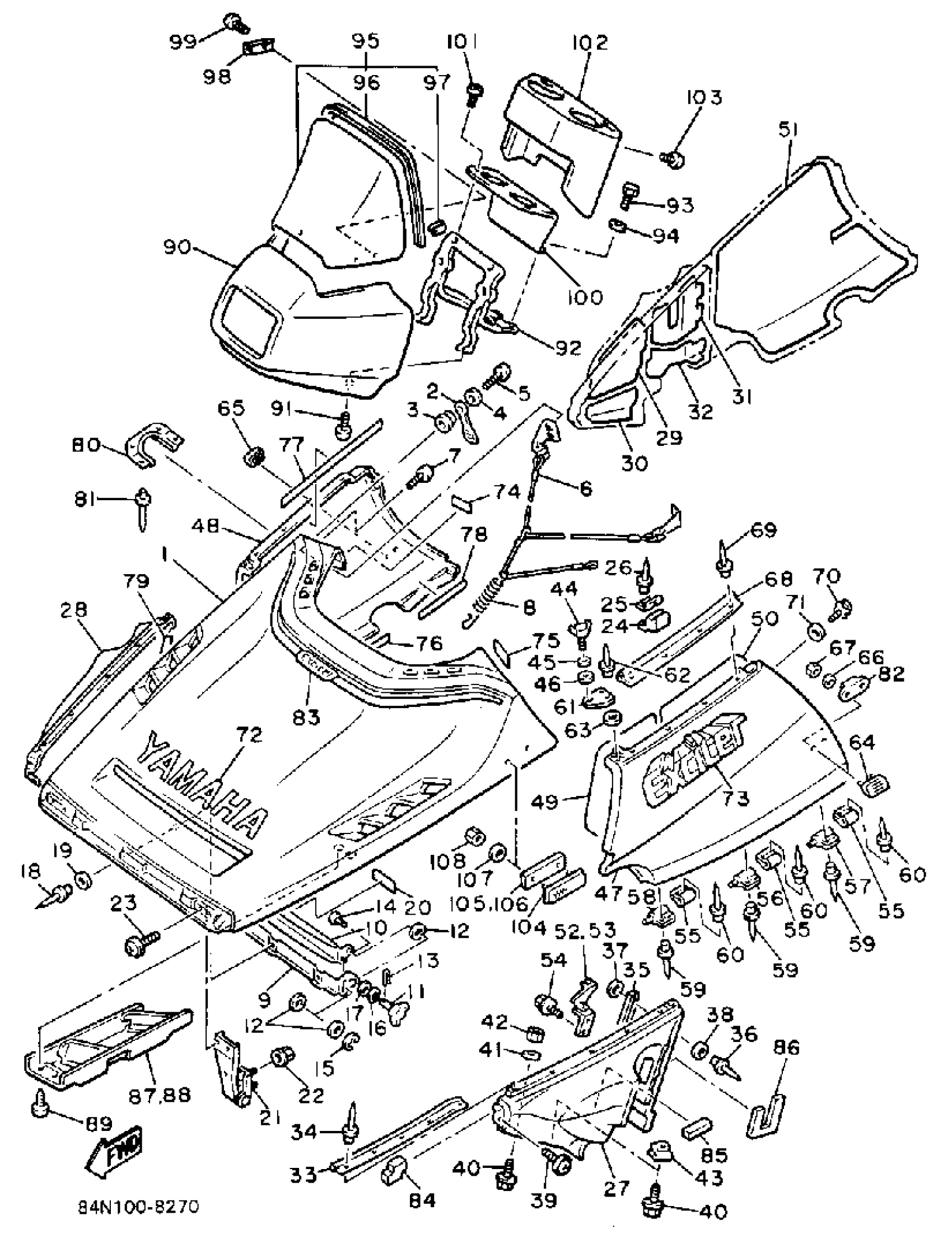

Yamaha EX570EM (EXCITER DELUXE (ELEC START)) 1988 SHROUD-WINDSHIELD Diagram
#
1
SHROUD ASSEMBLY
84N-W7711-02-00
Unavailable
2
BODY, LATCH 1
8V0-77171-00-00
$21.99
3
COLLAR (420)
90387-06241-00
$8.49
4
WASHER, PLATE 8221447500
90201-06057-00
$5.60
5
SCREW, BINDING
98907-06030-00
$8.49
6
STOPPER, SHROUD
82M-77118-00-00
Unavailable
7
SCREW, BINDING
98907-06016-00
$9.49
8
CLAMP, ROD
80L-77159-00-00
Unavailable
9
STAY 1
82M-77125-00-00
Unavailable
10
STAY 2
82M-77126-00-00
Unavailable
11
BOLT, WING(8W1)
90122-05022-00
$7.49
12
. WASHER, PLATE
90202-05088-00
Unavailable
13
PIN, HAIR 6474123500
90468-10003-00
$1.96
14
PIN
90249-05136-00
Unavailable
15
CIRCLIP (EU0)
99080-04600-00
Unavailable
16
WASHER(3SX)
92907-05100-00
Unavailable
17
WASHER, PLAIN LARGE
92907-05200-00
Unavailable
18
RIVET (856)
90267-48014-00
Unavailable
19
WASHER, PLATE (34L)
90201-043H7-00
Unavailable
20
LABEL,WARNING 2
8BE-77762-00-00
Unavailable
21
HINGE ASSEMBLY
82M-77140-00-00
Unavailable
22
NUT, FLANGE(7NB)
95780-06500-00
Unavailable
23
SCREW, W/WASHER (4L0)
90159-06060-00
Unavailable
24
STOPPER
8V0-77188-00-00
Unavailable
25
WASHER, SPECIAL
8V0-77116-01-00
Unavailable
26
RIVET, BLIND
90267-40029-00
Unavailable
27
HOOD 1
84N-21982-00-00
Unavailable
28
HOOD 2
84N-21983-00-00
Unavailable
29
LINING, SHROUD 2
82M-77262-00-00
Unavailable
30
LINING, SHROUD 3
82M-77263-01-00
Unavailable
31
LINING, SHROUD 4
82M-77264-00-00
Unavailable
32
LINING, SHROUD 5
82M-77265-00-00
Unavailable
33
BUSH, RUBBER 1
82M-77515-00-00
Unavailable
34
RIVET(81E)
90269-05055-00
Unavailable
35
TRIM 1
82M-2196T-00-00
Unavailable
36
RIVET, BLIND (8K1)
90267-40076-00
Unavailable
37
WASHER, PLATE(26H)
90201-044H9-00
Unavailable
38
WASHER, PLATE (8M6)
90201-047A2-00
Unavailable
39
SCREW, WITH WASHER
90159-05137-00
Unavailable
40
BOLT, WITH WASHER(81H)
90119-06118-00
Unavailable
41
WASHER(6TA)
92907-06200-00
Unavailable
42
NUT, NYLON
95707-06300-00
Unavailable
43
CLAMP 1
84N-77135-00-00
Unavailable
44
BOLT, WING (36F)
90122-06020-00
Unavailable
45
WASHER, PLATE
90201-06020-00
Unavailable
46
WASHER, PLATE 1412342700
90202-06008-00
Unavailable
47
HOOD 3
84N-2197H-00-00
Unavailable
48
HOOD 4
84N-2198H-00-00
Unavailable
49
DAMPER, NOISE 14
82M-77274-01-00
Unavailable
50
DAMPER, NOISE 15
82M-77275-00-00
Unavailable
51
LINING, SHROUD 6
82M-77266-00-00
Unavailable
52
BRACKET 3
82M-2196F-00-00
Unavailable
53
BRACKET 4
82M-2196G-00-00
Unavailable
54
BOLT, FLANGE
95812-06010-00
Unavailable
55
BRACKET, 1
8V0-2194X-00-00
Unavailable
56
BRACKET 2
88R-2195X-00-00
Unavailable
57
BRACKET 2
88R-2195X-00-00
Unavailable
58
BRACKET 2
82M-2195X-00-00
Unavailable
59
RIVET, BLIND (8L0)
90267-48059-00
Unavailable
60
RIVET, BLIND (8J5)
90267-48057-00
Unavailable
61
STAY 3
82M-77127-00-00
Unavailable
62
RIVET, BLIND (8H4)
90267-48053-00
Unavailable
63
WASHER, PLATE
90201-04027-00
Unavailable
64
PROTECTOR 1
8V0-77551-00-00
Unavailable
65
PROTECTOR 2
8V0-77552-00-00
Unavailable
66
WASHER, PLATE 8067717800
90201-05029-00
Unavailable
67
NUT, NYLON
95707-05300-00
Unavailable
68
BUSH, RUBBER 2
82M-77516-00-00
Unavailable
69
RIVET(81E)
90269-05055-00
Unavailable
70
HOLDER, LATCH
8V0-77175-00-00
Unavailable
71
PLATE
4U5-2176E-00-00
Unavailable
72
ORNAMENT 1
82M-77163-00-00
Unavailable
73
ORNAMENT 2
84M-77164-00-00
Unavailable
74
INDICATOR 2
82M-77742-00-00
Unavailable
75
INDICATOR, COCK
84M-24153-00-00
Unavailable
76
TAPE 1
82M-7717E-00-00
Unavailable
77
TAPE 2
82M-7717F-01-00
Unavailable
78
TAPE 3
82M-7717G-01-00
Unavailable
79
TAPE 3
8V0-7717G-00-00
Unavailable
80
PATCH 10
82M-21997-00-00
Unavailable
81
RIVET, BLIND
90267-48101-00
Unavailable
82
DAMPER 1
82M-77198-01-00
Unavailable
83
STRIPE 1
84M-77281-00-00
Unavailable
84
TAPE 4
84M-7717H-00-00
Unavailable
85
TAPE, 5
84M-7717J-00-00
Unavailable
86
DAMPER, NOISE 18
84M-77278-00-00
Unavailable
87
PLATE 1
84M-77185-00-00
Unavailable
88
PLATE 2
84M-77186-00-00
Unavailable
89
SCREW, TRUSS TAP.
97707-50012-00
Unavailable
90
FAIRING 1
84N-77231-00-00
Unavailable
91
SCREW, BINDING
98907-06010-00
Unavailable
92
STAY, FAIRING
82M-77241-00-00
Unavailable
93
BOLT, HEXAGON
97017-06030-00
Unavailable
94
WASHER, SPRING
92907-06100-00
Unavailable
95
WINDSHIELD
8BH-77210-00-XX
Unavailable
96
TRIM,UPPER
87K-77213-00-00
Unavailable
97
. FASTENER
80V-77223-00-00
Unavailable
98
WASHER 1
82M-77218-00-00
Unavailable
99
SCREW, PAN HEAD
98502-05006-00
Unavailable
100
BRACKET, METER
82M-83519-01-00
Unavailable
101
SCREW, BINDING
98907-06010-00
Unavailable
102
COVER, HEADLIGHT
82M-77251-00-00
Unavailable
103
SCREW, BINDING
98907-05016-00
Unavailable
104
REFLECTOR ASSEMBLY
81E-85110-00-00
Unavailable
105
BASE, REFLECTOR
82M-85115-00-00
Unavailable
106
BASE, REFLECTOR
82M-85115-50-00
Unavailable
107
WASHER, PLAIN (646)
92990-05600-00
Unavailable
108
NUT, NYLON
95707-05300-00
Unavailable
