- EX570EM (EXCITER DELUXE (ELEC START)) 1988
CYLINDER HEAD-CYLINDER

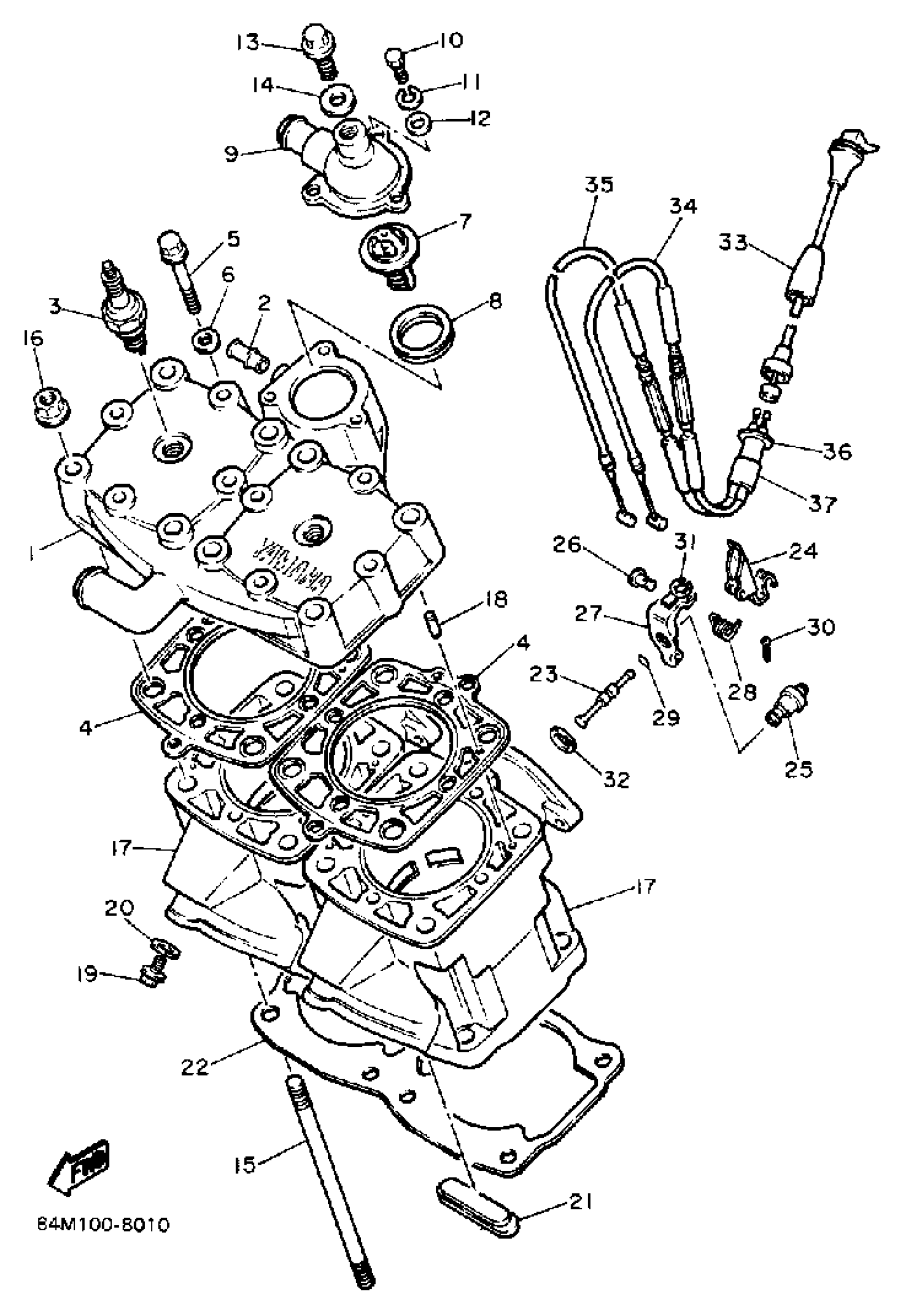

Yamaha EX570EM (EXCITER DELUXE (ELEC START)) 1988 CYLINDER HEAD-CYLINDER Diagram
#
1
HEAD, CYLINDER 1
82M-11111-00-00
Unavailable
2
JOINT
8A7-12499-00-00
Unavailable
3
BR9ES NGK SCREW TOP PLUG 4PK
BR9-ES000-00-00
Unavailable
4
GASKET, CYLINDER HEAD 1
82M-11181-01-00
Unavailable
5
BOLT, FLANGE
95817-08060-00
$3.76
6
WASHER, PLATE
90201-080L7-00
$4.82
7
THERMOSTAT
82M-12411-00-00
$75.99
8
SEAL, THERMOSTAT
8A7-12412-01-00
$16.49
9
COVER, THERMOSTAT
82M-12413-00-00
Unavailable
10
BOLT, HEXAGON
97017-06025-00
$4.24
11
WASHER, SPRING
92995-06100-00
Unavailable
12
WASHER, PLAIN (646)
92990-06600-00
$2.80
13
BOLT, FLANGE
95817-06012-00
$1.43
14
GASKET (4V2)
90430-06166-00
$3.76
15
BOLT, CYLINDER HOLDING 1
8M6-11361-00-00
Unavailable
16
NUT, FLANGE(3BM)
95704-10500-00
Unavailable
17
CYLINDER 1
82M-11311-00-00
Unavailable
18
PIN,DOWEL (168)
93604-12037-00
Unavailable
19
BOLT, FLANGE
95026-10016-00
Unavailable
20
WASHER PLATE 341839090000
90201-10128-00
Unavailable
21
SEAL, CYLINDER 1
47X-11355-00-00
Unavailable
22
GASKET, CYLINDER
87M-11351-02-00
Unavailable
23
VALVE, DCOMP
84M-12281-00-00
Unavailable
24
LEVER, DCOMP
84M-12282-00-00
Unavailable
25
BRACKET, DCOMP
84M-12283-00-00
Unavailable
26
PIN, CLEVIS
90240-03002-00
Unavailable
27
HOLDER, CABLE
84M-12273-00-00
Unavailable
28
SPRING, TORSION
90508-10740-00
Unavailable
29
O-RING (210)
93210-04092-00
Unavailable
30
PIN, COTTER
91490-16020-00
Unavailable
31
CIRCLIP(6L5)
99080-03600-00
Unavailable
32
GASKET
812-11198-00-00
Unavailable
33
CABLE, DCOMP
82M-12292-01-00
Unavailable
34
WIRE, DECOMP 1
82M-2632A-00-00
Unavailable
35
WIRE, DECOMP 2
82M-2632E-00-00
Unavailable
36
CONNECTER, CABLE
4U1-26261-00-00
Unavailable
37
CAP
5L6-26272-00-00
Unavailable
