Description

Price

14024X

COVER,SEAT,L.P.BLUE

14024-5214-M4

Unavailable

14024Y

COVER,SEAT,P.T.GREEN

14024-5215-SM

Unavailable

21083

ARM,SEAT LOCK

21083-1063

$9.45

23036

BRACKET-TAIL LAMP

23036-1111

$19.30

27012

HOOK,SEAT LOCK

27012-1363

$52.38

27012A

HOOK,SEAT,LH

27012-1377

$11.07

27012B

HOOK,SEAT,RH

27012-1378

$11.07

32085

STOPPER,SEAT LOCK SPRING

32085-1270

$18.41

53001A

SEAT-ASSY,DUAL,BLACK

53001-1519-MA

$444.45

53003

LEATHER,SEAT,BLACK

53003-1179-MA

$157.70

56008

BAG,HAND BOOK

56008-1066

$52.38

59071

JOINT

59071-1103

$8.68

92002

BOLT,6X14

92002-1351

$4.31

92002A

BOLT,UPSET-WP,6X12

92002-1884

$4.11

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92015A

NUT,6MM

92015-1671

$7.61

92075

DAMPER,10X24X12

92075-1690

$5.00

92075A

DAMPER,SIDE COVER

92075-1962

Unavailable

92081

SPRING

92081-1982

$6.87

130

BOLT-FLANGED,6X14

130D0614

Unavailable

130A

BOLT-FLANGED,6X25

130J0625

$2.62

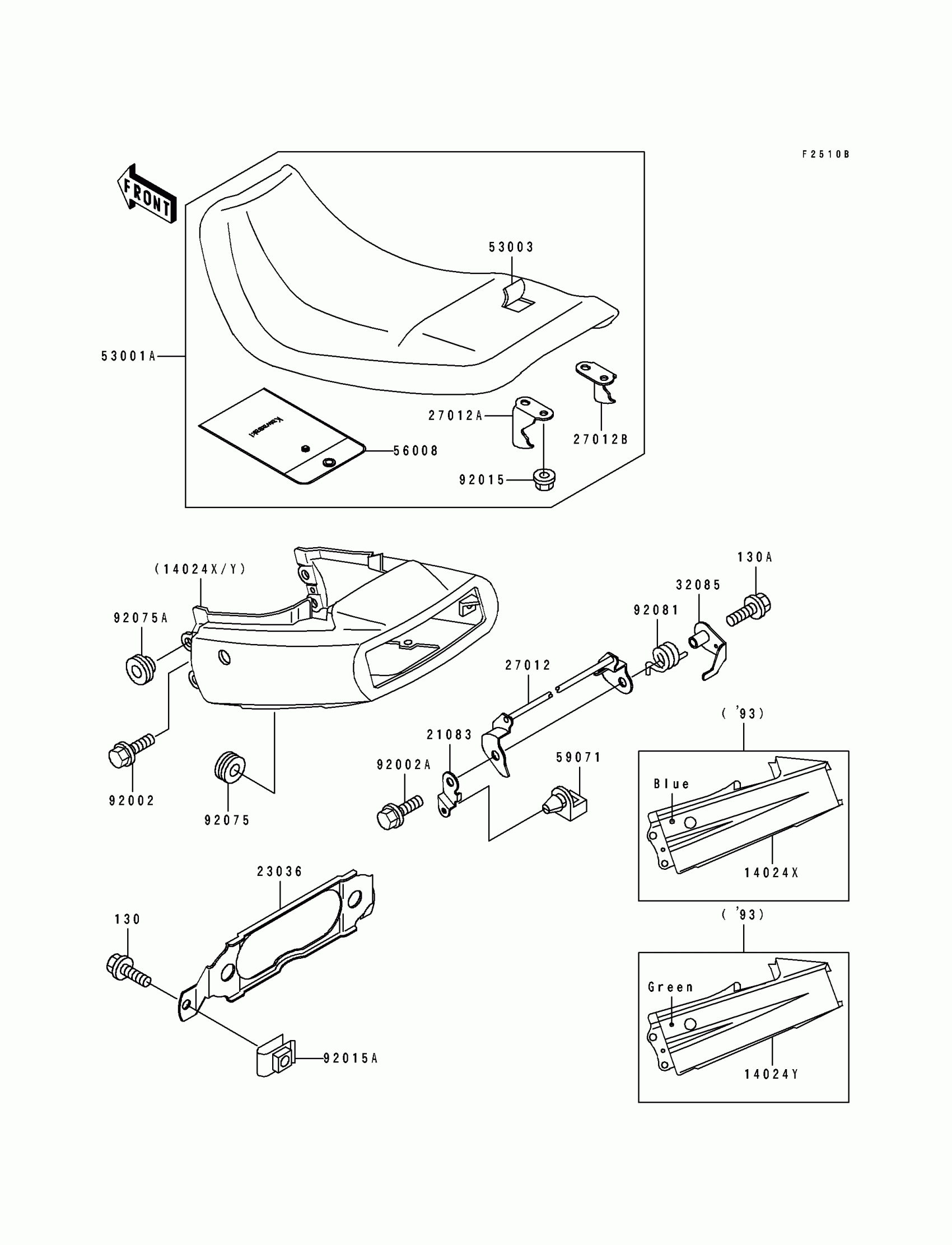

Kawasaki EX500 Seat(EX500-A7) Diagram

COVER,SEAT,L.P.BLUE

COVER,SEAT,P.T.GREEN

ARM,SEAT LOCK

BRACKET-TAIL LAMP

HOOK,SEAT LOCK

HOOK,SEAT,LH

HOOK,SEAT,RH

STOPPER,SEAT LOCK SPRING

SEAT-ASSY,DUAL,BLACK

LEATHER,SEAT,BLACK

BAG,HAND BOOK

JOINT

BOLT,6X14

BOLT,UPSET-WP,6X12

NUT,FLANGED,6MM

NUT,6MM

DAMPER,10X24X12

DAMPER,SIDE COVER

SPRING

BOLT-FLANGED,6X14

BOLT-FLANGED,6X25
