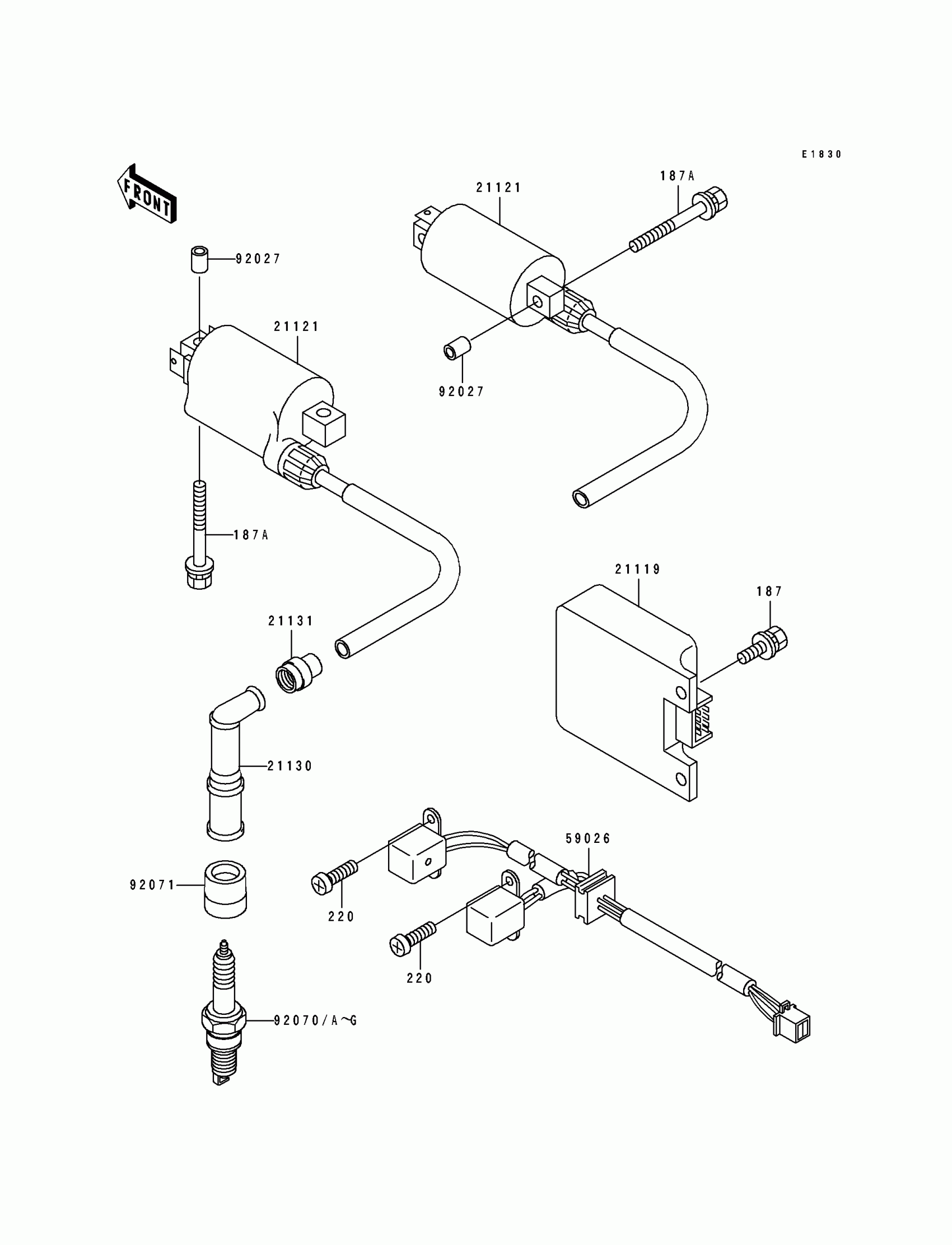

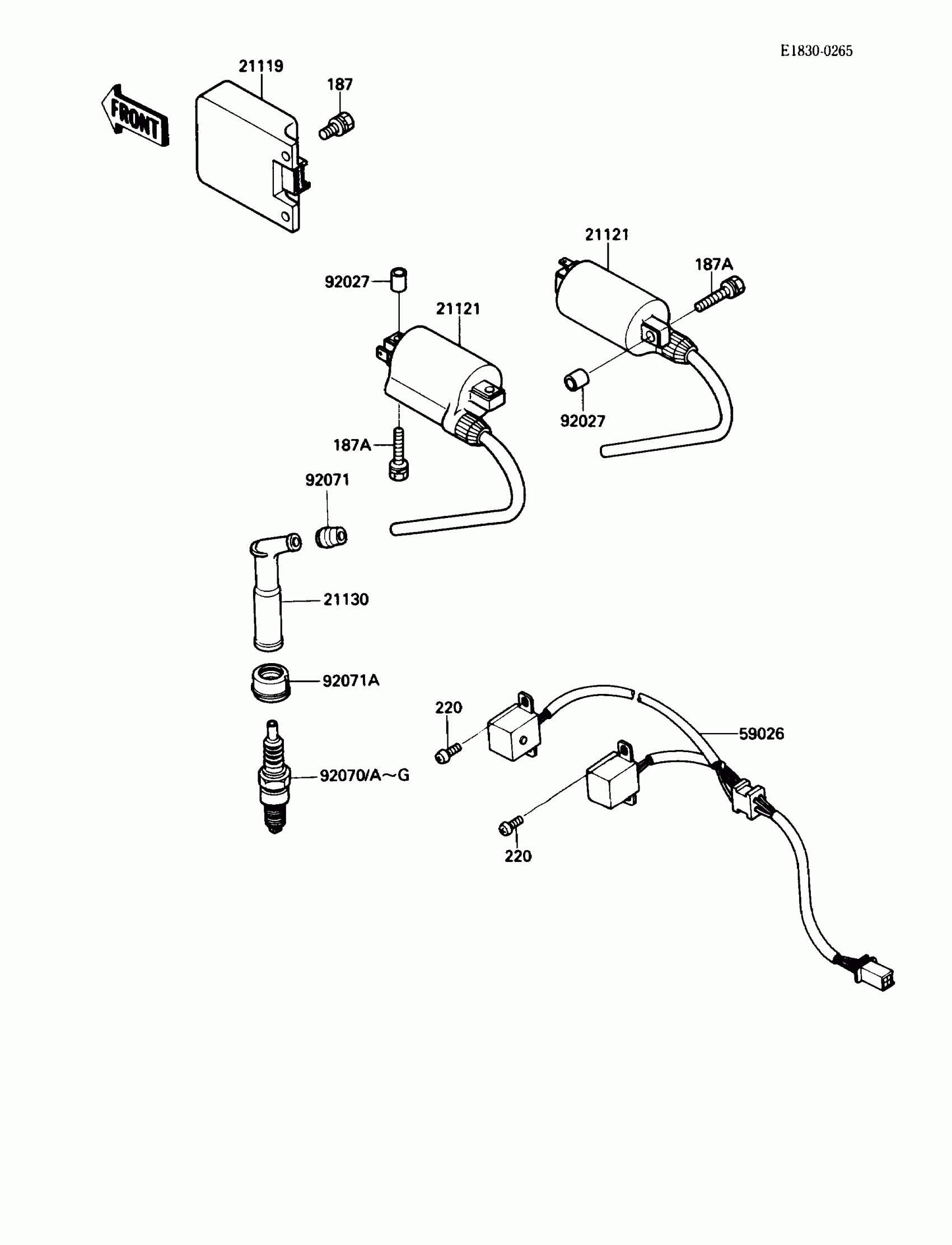

Kawasaki EX500 Ignition System Diagram

IGNITER

21119-1219

Unavailable

COIL-IGNITION

21121-1153

$135.48

CAP-SPARK PLUG

21130-1002

$51.68

COIL-PULSING

59026-1066

$178.09

COLLAR

92027-103

$3.58

Not Available As Spare Part - Friction Washer

Unavailable

PLUG-SPARK,D8EA(NGK)

92070-1011

$3.46

PLUG-SPARK,DR8ES(NGK)

92070-1019

$9.44

Not Available As Spare Part - Friction Washer

Unavailable

PLUG-SPARK,D9EA(NGK)

92070-1034

$3.62

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

PLUG-SPARK,DR8ES-L(NGK)

92070-1116

$3.62

GROMMET,HIGH TENSION

21131-005

$6.16

GROMMET,PLUG CAP

92071-1146

$10.53

BOLT-UPSET-WSP

187B0618

Unavailable

BOLT-UPSET-WSP,6X25

187G0625

Unavailable

SCREW PAN HEAD 5X10

220B0510

$0.69
