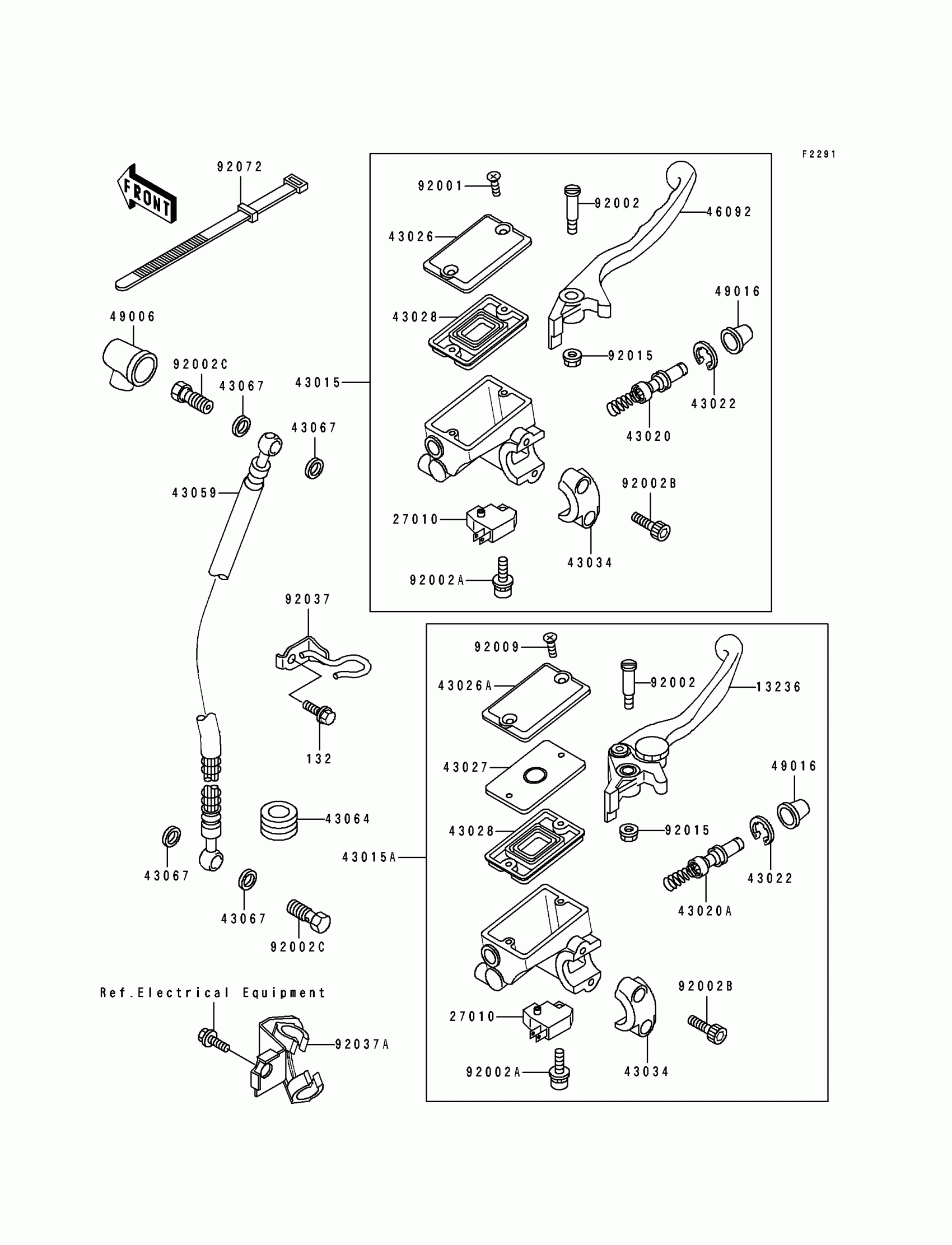

Kawasaki EX500 Front Master Cylinder Diagram
#
Description
Price
13236
LEVER-COMP,FRONT BRAKE
13236-1185
$63.66
27010
SWITCH,BRAKE
27010-1170
$35.04
43015A
CYLINDER-ASSY-MASTER,FR
43015-1478
$390.40
43020A
PISTON-COMP-BRAKE
43020-1098
$51.24
43022
STOPPER-BRAKE,PISTON
43022-1010
$4.65
43026A
CAP-BRAKE
43026-1076
$42.62
43027
PLATE-DIAPHRAGM
43027-1055
$7.81
43028
DIAPHRAGM,MASTER CYLINDER
43028-1058
$22.90
43034
HOLDER-BRAKE,MASTER CYLINDER
43034-1053
$35.87
43059
HOSE-BRAKE,FR
43059-1627
$99.76
43064
GROMMET,HOSE CLAMP
43064-007
$5.52
43067
WASHER,10.5X15X1.5
43067-001
$2.15
49006
BOOT,DUST
49006-1040
$11.49
49016
COVER-SEAL,MASTER CYLINDER
49016-1044
$8.68
92002
BOLT,LEVER SET,BLACK
92002-1322
$11.71
92002A
BOLT,SCREW,4X12
92002-1323
$3.92
92002B
BOLT,SOCKET,6X20,BLACK
92002-1324
$7.65
92002C
BOLT,OIL,L=23
92002-1907
$5.48
92009
SCREW,4MM
92009-1458
$3.21
92015
NUT,FLANGED,6MM,BLACK
92015-1233
$5.52
92037
CLAMP,BRAKE HOSE,RH
92037-1217
$13.79
92037A
CLAMP,HOSE
92037-1852
$16.13
92072
BAND,L=186
92072-056
$5.00
132
BOLT-FLANGED-SMALL,6X10
132J0610
$2.33
