Description

Price

41080

DISC,FR

41080-1181

$511.76

43020

PISTON-COMP-BRAKE

43020-1068

$72.80

43020A

PISTON-COMP-BRAKE

43020-1069

$72.80

43041

CALIPER-ASSY,FR,LH,BLACK

43041-1375-DJ

$581.34

43044

HOLDER-COMP-CALIPER

43044-1067

$158.69

43049

PACKING,PISTON SEAL

43049-1054

$12.42

43049A

PACKING,PISTON

43049-1055

$11.29

43049B

PACKING,PISTON SEAL

43049-1056

$13.10

43049C

PACKING,PISTON

43049-1057

$12.65

43056

BREATHER-BRAKE

43056-1054

$24.57

43057

CAP-BREATHER

43057-003

$2.45

43082

PAD-ASSY-BRAKE

43082-1074

$47.39

49006

BOOT,CALIPER

49006-1094

$12.23

49006A

BOOT,CALIPER

49006-1095

$7.27

92001

BOLT,DISC PLATE,8X30

92001-1951

$4.69

92002

BOLT,FLANGED,10X41

92002-1468

$8.86

92081

SPRING,PAD STOPPER

92081-1661

$11.80

92144

SPRING,PAD

92144-1070

$29.85

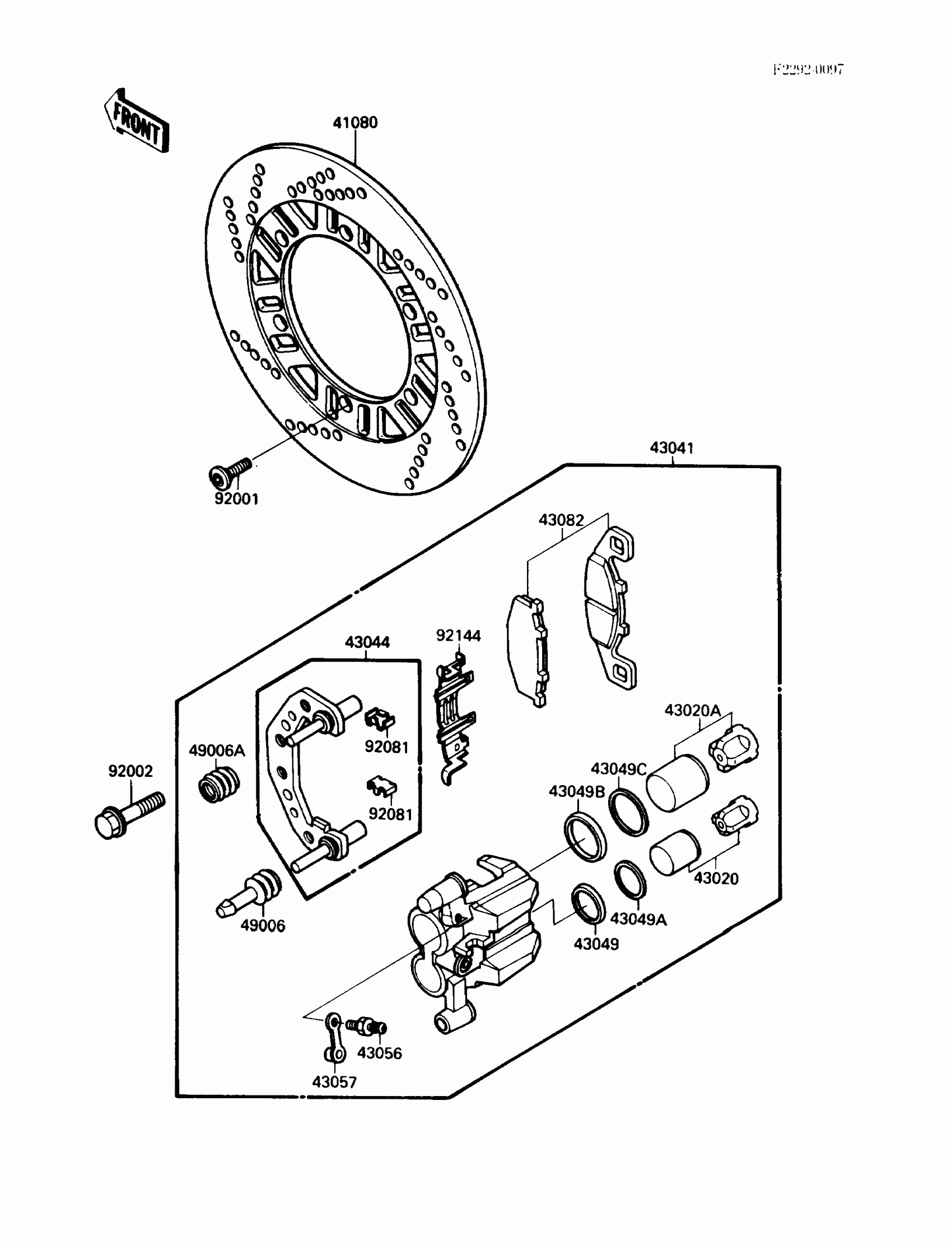

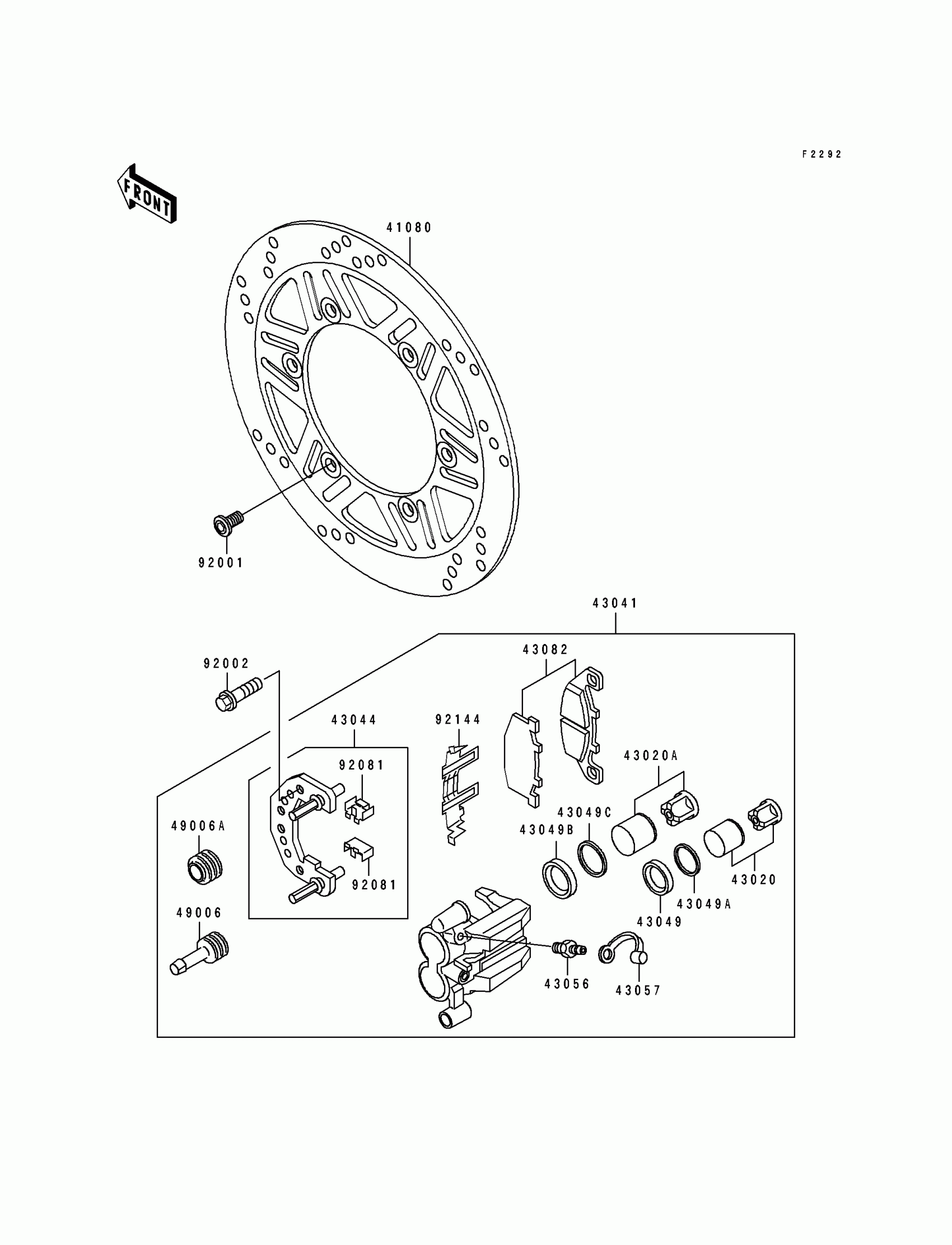

Kawasaki EX500 Front Brake Diagram

DISC,FR

PISTON-COMP-BRAKE

PISTON-COMP-BRAKE

CALIPER-ASSY,FR,LH,BLACK

HOLDER-COMP-CALIPER

PACKING,PISTON SEAL

PACKING,PISTON

PACKING,PISTON SEAL

PACKING,PISTON

BREATHER-BRAKE

CAP-BREATHER

PAD-ASSY-BRAKE

BOOT,CALIPER

BOOT,CALIPER

BOLT,DISC PLATE,8X30

BOLT,FLANGED,10X41

SPRING,PAD STOPPER

SPRING,PAD
