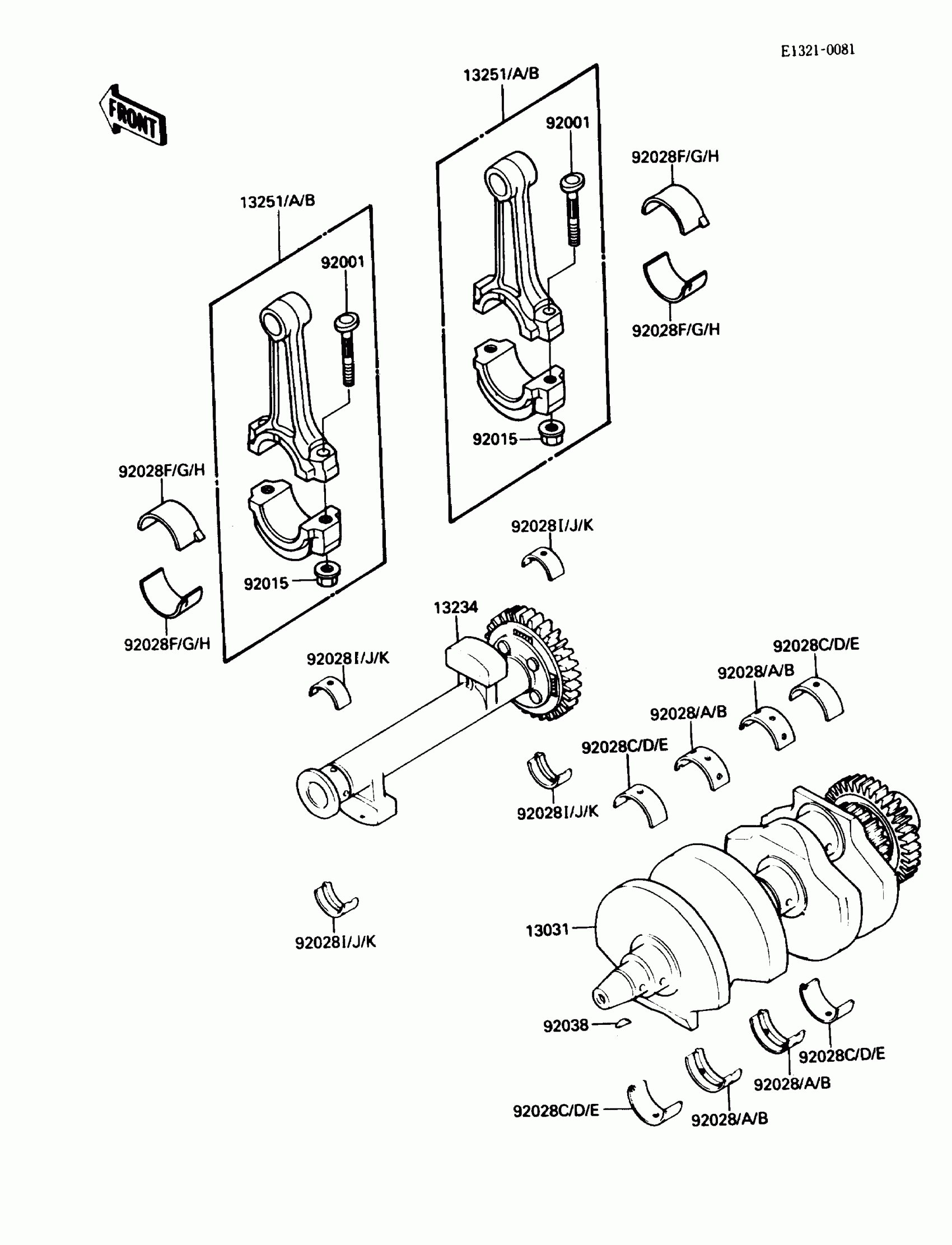

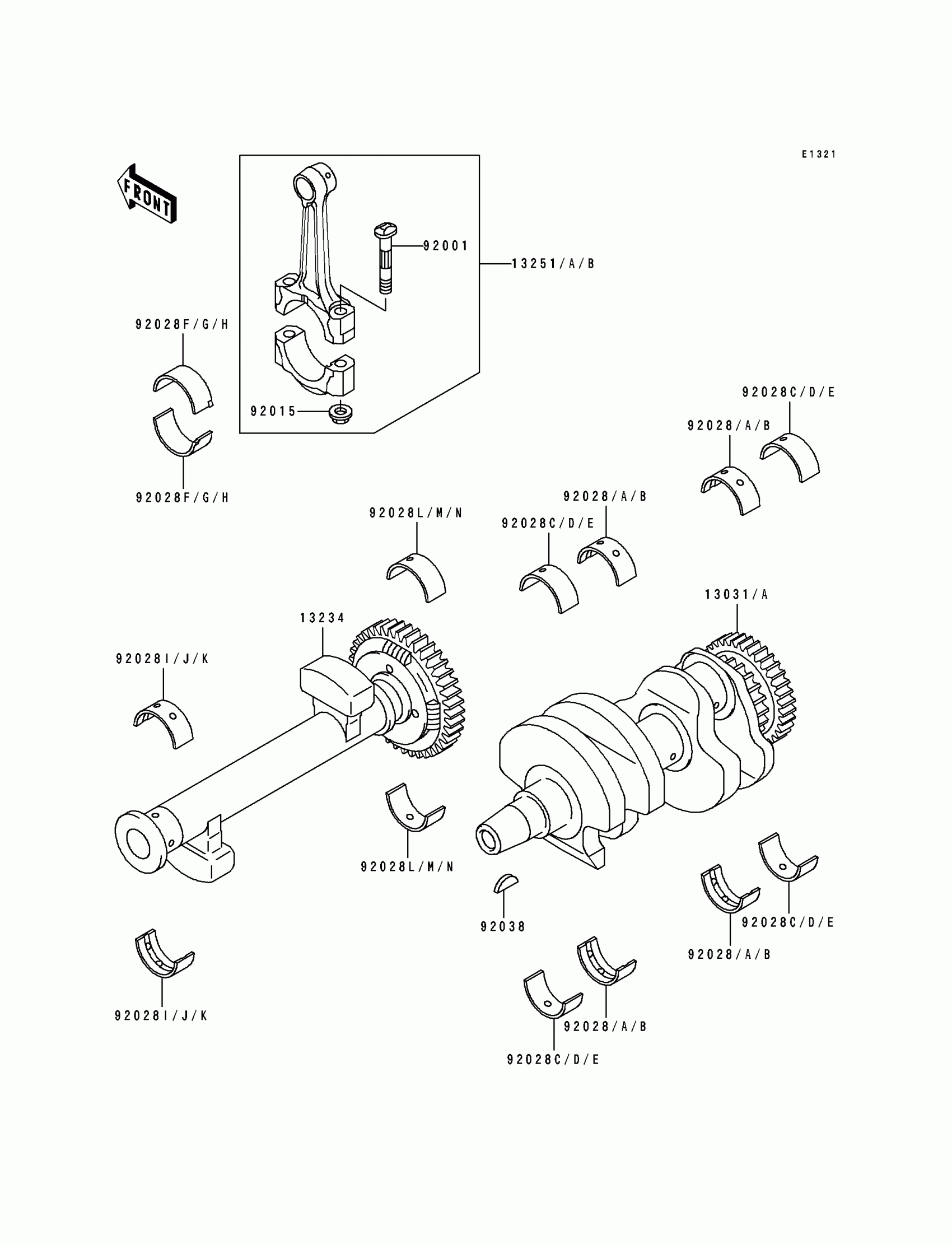

Kawasaki EX500 Crankshaft Diagram

#

Description
Price

13031A

CRANKSHAFT-COMP

13031-1303

$1,242.02

13234

SHAFT-COMP,BALANCER

13234-1071

$713.47

13251

ROD-ASSY-CONNECTING,H

13251-1067-HH

Unavailable

13251A

ROD-ASSY-CONNECTING,I

13251-1067-II

Unavailable

13251B

ROD-ASSY-CONNECTING,J

13251-1067-JJ

Unavailable

92001

BOLT,CONNECTING ROD,8MM

92001-1887

$9.57

92015

NUT,FLANGED,8MM

92015-1311

$7.34

92028

BUSHING,CRANKSHAFT,BLUE

92028-1100

$16.90

92028A

BUSHING,CRANKSHAFT,BLACK

92028-1101

Unavailable

92028B

BUSHING,CRANKSHAFT,BROWN

92028-1102

Unavailable

92028C

BUSHING,CRANKSHAFT,BLUE

92028-1272

$26.54

92028D

BUSHING,CRANKSHAFT,BLACK

92028-1273

Unavailable

92028E

BUSHING,CRANKSHAFT,BROWN

92028-1274

Unavailable

92028F

BUSHING,CONNECTING ROD,BLUE

92028-1348

$21.55

92028G

BUSHING,CONNECTING ROD,BLACK

92028-1349

Unavailable

92028H

BUSHING,CONNECTING ROD,BROWN

92028-1350

Unavailable

92028I

BUSHING,BALANCER,LH,BLUE

92028-1495

$21.55

92028J

BUSHING,BALANCER,LH,BLACK

92028-1496

Unavailable

92028K

BUSHING,BALANCER,LH,BROWN

92028-1497

Unavailable

92028L

BUSHING,BALANCER,RH,BLUE

92028-1653

Unavailable

92028M

BUSHING,BALANCER,RH,BLACK

92028-1654

Unavailable

92028N

BUSHING,BALANCER,RH,BROWN

92028-1655

Unavailable

92038

KEY,WOODRUFF

92038-001

$4.96
