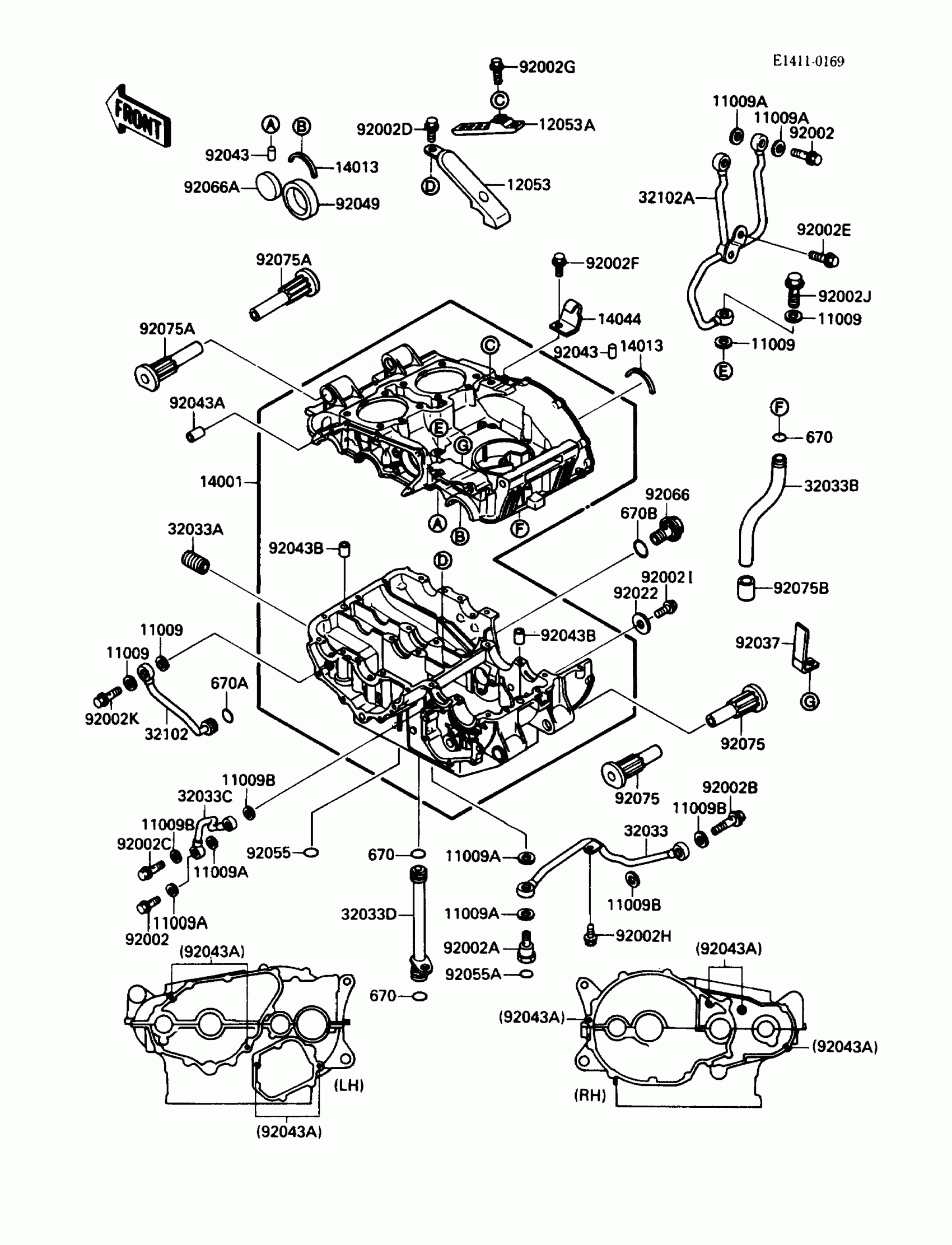

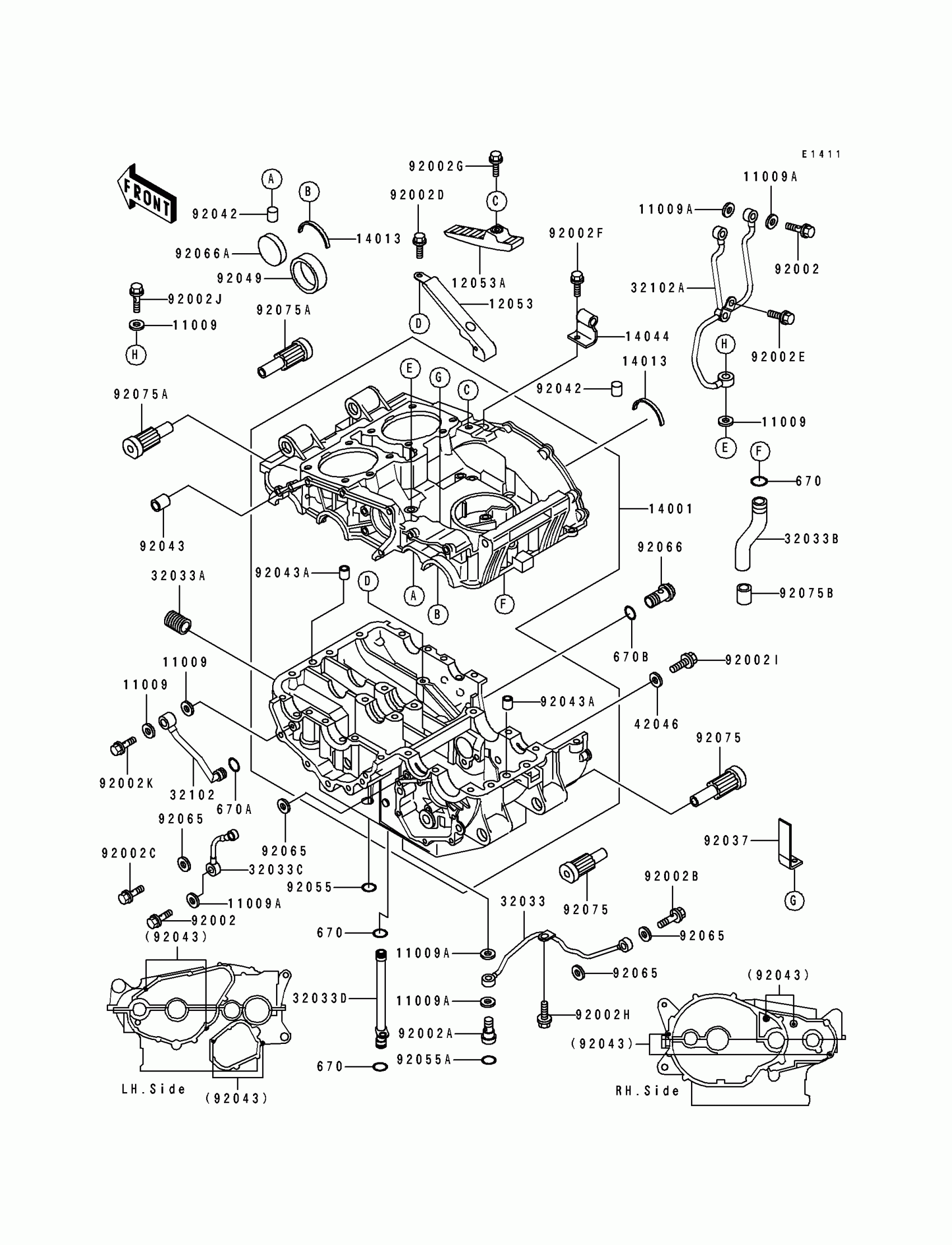

Kawasaki EX500 Crankcase Diagram
#
11009
GASKET,10X14.5X1.5
11009-1105
$6.51
11009A
GASKET,8.2X14X1.0
11009-1344
$3.17
12053
GUIDE-CHAIN,LWR
12053-1216
$49.54
12053A
GUIDE-CHAIN,UPP
12053-1217
$49.54
14001
SET-CRANKCASE
14001-5230
Unavailable
14013
RING-POSITION
14013-004
$10.19
14044
HOLDER-CABLE
14044-1059
$9.89
32033
PIPE
32033-1530
$59.33
32033A
PIPE,OIL FILTER
32033-1535
$12.96
32033B
PIPE
32033-1538
$38.87
32033C
PIPE
32033-1539
$46.13
32033D
PIPE
32033-1574
$61.04
32102
PIPE
32102-1541
$43.64
32102A
PIPE
32102-1710
$121.17
42046
WASHER
42046-008
$4.38
92002
BOLT,8X20
92002-1429
$11.07
92002A
BOLT
92002-1467
$30.84
92002B
BOLT,BANJO,6X28
92002-1471
$19.74
92002C
BOLT,BANJO,6X19
92002-1473
$13.07
92002D
BOLT,6X12
92002-1563
$3.32
92002E
BOLT,6X12
92002-1569
Unavailable
92002F
BOLT,6X16
92002-1570
Unavailable
92002G
BOLT,6X16
92002-1571
$4.69
92002H
BOLT,6X12
92002-1572
$3.65
92002I
BOLT,6X14
92002-1656
$4.69
92002J
BOLT,OIL,L=23
92002-1809
$15.03
92002K
BOLT,BANJO,10X30
92002-1941
$10.62
92037
CLAMP
92037-1679
$5.52
92042
PIN,DOWEL,6X16
92042-016
$5.00
92043
PIN,6.2X8X14
92043-1263
$0.43
92043A
PIN,8.2X10X14
92043-1264
$0.64
92049
SEAL-OIL,AE2343F0
92049-1070
$16.56
92055
RING-O,OD=18
92055-048
$4.80
92055A
RING-O,OD=13
92055-074
$8.58
92065
GASKET
92065-096
$4.65
92066
PLUG,MAIN GALLERY
92066-1205
$30.56
92066A
PLUG,RCA 345.5
92066-1208
$15.98
92075
DAMPER,L=79.5
92075-1678
$52.38
92075A
DAMPER,L=93
92075-1679
$52.38
92075B
DAMPER
92075-1742
$6.16
670
O RING,9.8X1.9
670B1510
$4.31
670A
O RING,10MM
670B2010
$1.50
670B
O RING,21MM
670B2021
$4.69
