Description

Price

11045

BRACKET,COWLING

11045-1816

Unavailable

14024

COVER,UPPER COWLING,LWR,WHITE

14024-1385-R1

Unavailable

14024A

COVER,INNER COWLING,RH

14024-1392

Unavailable

14025

COVER,TRIM END

14025-1756

$7.60

39154

WINDSHIELD

39154-1100

$340.25

53044

TRIM,WINDSHIELD

53044-1120

Unavailable

55028

COWLING,INNER,LH

55028-1145

Unavailable

55028A

COWLING,INNER,RH

55028-1146

$48.40

55049

COWLING.,UPP,BLUE/WHITE

55049-5082-S3

$1,313.25

55049A

COWLING.,UPP,RED/WHITE

55049-5083-GP

$1,154.20

56001

MIRROR-ASSY,LH

56001-1248

$91.79

56001A

MIRROR-ASSY,RH

56001-1249

$91.79

92009

SCREW,TAPPING,5X15

92009-1479

$4.38

92009A

SCREW,5X12

92009-1652

$3.96

92009B

SCREW,5X16,BLACK

92009-1654

$3.13

92015

NUT,CAP,8MM,BLACK

92015-1174

$5.00

92015A

NUT,5MM,COWLING

92015-1343

$4.39

92015B

NUT,5MM

92015-1638

Unavailable

92022

WASHER,NYLON,5.3X11.5X1.5

92022-1521

$3.92

92075

DAMPER,MIRROR

92075-1492

$8.12

92075A

DAMPER,MIRROR

92075-1745

$8.12

221

SCREW-CSK-CROSS

221C0630

$1.69

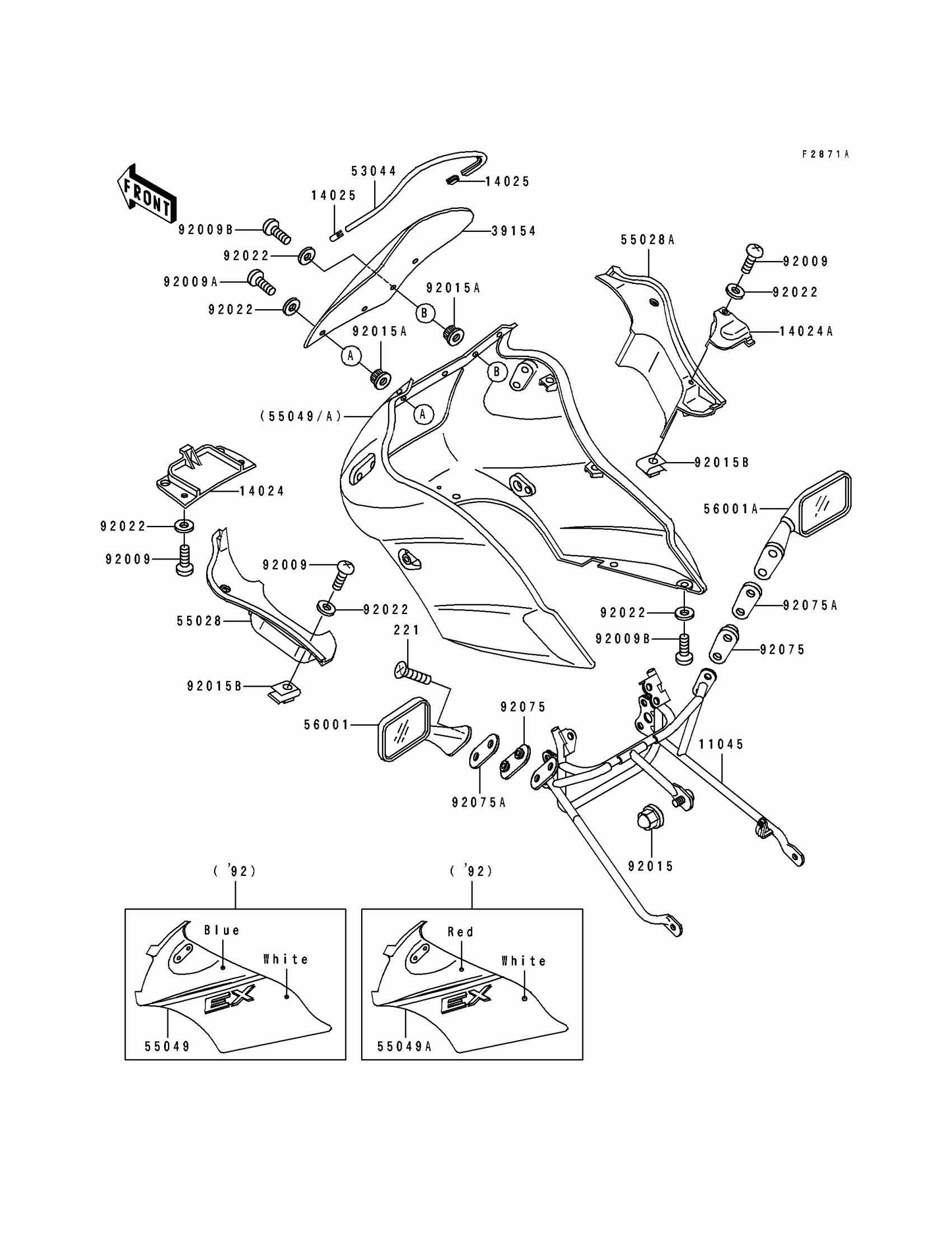

Kawasaki EX500 Cowling(EX500-A6) Diagram

BRACKET,COWLING

COVER,UPPER COWLING,LWR,WHITE

COVER,INNER COWLING,RH

COVER,TRIM END

WINDSHIELD

TRIM,WINDSHIELD

COWLING,INNER,LH

COWLING,INNER,RH

COWLING.,UPP,BLUE/WHITE

COWLING.,UPP,RED/WHITE

MIRROR-ASSY,LH

MIRROR-ASSY,RH

SCREW,TAPPING,5X15

SCREW,5X12

SCREW,5X16,BLACK

NUT,CAP,8MM,BLACK

NUT,5MM,COWLING

NUT,5MM

WASHER,NYLON,5.3X11.5X1.5

DAMPER,MIRROR

DAMPER,MIRROR

SCREW-CSK-CROSS
