Description

Price

13087

HUB-CLUTCH

13087-1052

Unavailable

13088

PLATE-FRICTION

13088-1013

$15.76

13089

PLATE-CLUTCH,T=2.0

13089-026

$12.80

13095

HOUSING-COMP-CLUTCH

13095-1158

$544.01

13102

RELEASE-COMP-CLUTCH

13102-1087

$64.54

13187

PLATE-CLUTCH OPERATING

13187-1012

Unavailable

13216

GEAR-COMP,40T

13216-1066

$83.86

46102

ROD,CLUTCH

46102-1134

$36.14

92001

BOLT,FLANGED,6X18

92001-1066

$6.22

92015

NUT,20MM

92015-1555

$13.08

92022

WASHER,20.3X36X2.3

92022-1116

$8.58

92026

SPACER,25.5X47X2.5

92026-022

$9.91

92026A

SPACER,25X47X4

92026-1242

$29.41

92026B

SPACER,25X30X23.5

92026-1243

$33.68

92045

BEARING-BALL,6001C3ML01

92045-1235

$16.25

92057

CHAIN,PRIMARY

92057-1229

$260.86

92081

SPRING,CLUTCH

92081-1864

$9.49

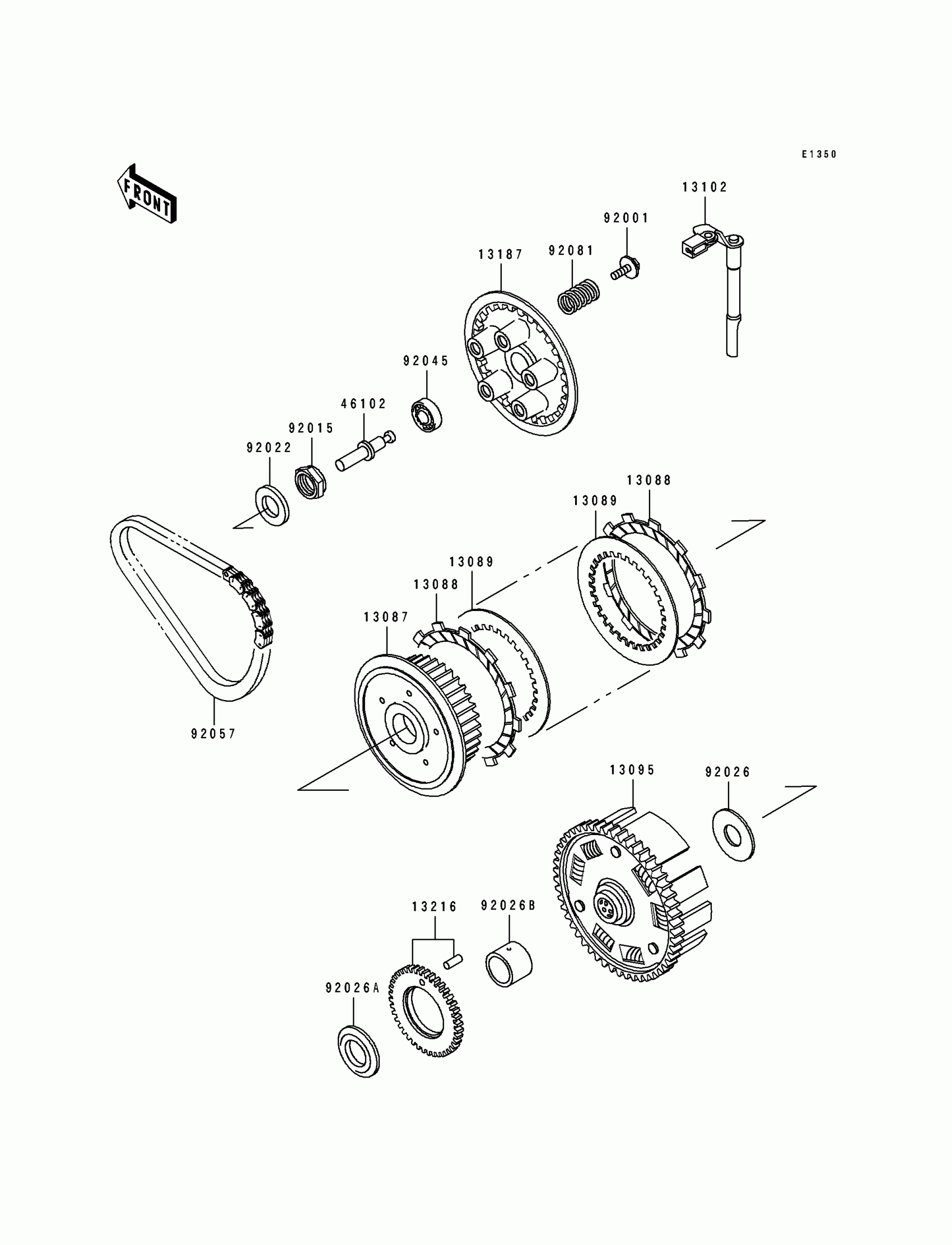

Kawasaki EX500 Clutch Diagram
