TRACK SUSPENSION 1

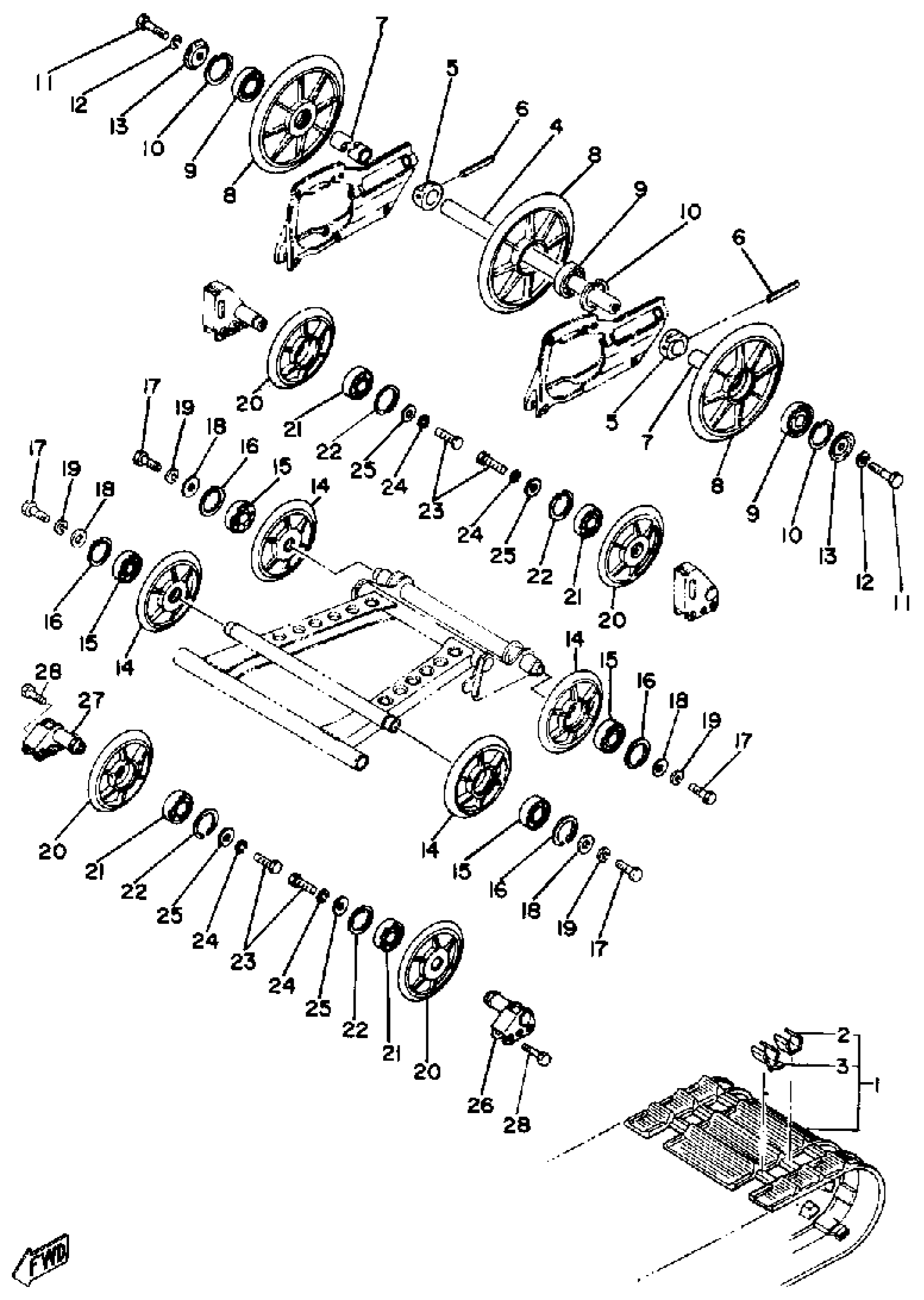

Yamaha EX440E 1981 TRACK SUSPENSION 1 Diagram
#
Description
Price
1
TRACK ASY
8V0-47110-00-00
Unavailable
2
PLATE, REINFORCEMENT
89A-47113-00-00
$5.49
3
METAL, SLIDE
8A5-47115-00-00
Unavailable
4
AXLE, REAR
8A5-47521-00-00
Unavailable
5
COLLAR 3
885-47479-00-00
Unavailable
6
PIN, SPRING (663)
91690-40040-00
Unavailable
7
COLLAR
90387-20510-00
Unavailable
8
WHEEL GUIDE COMP.
8L4-47530-00-00
$171.99
9
BRG,R-B 62042RS 47MM 110G KY
93306-20417-00
$40.99
10
CIRCLIP(48Y)
99009-47500-00
$9.49
11
BOLT, HEXAGON
97013-08020-00
$1.16
12
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
13
WASHER, SPEC''L SHAP
90209-08124-00
Unavailable
14
SUSPENSION WHEEL COMP
885-47320-01-00
$72.99
15
BEARING(8AB)
93306-00444-00
$41.99
16
CIRCLIP(5U8)
99009-42500-00
Unavailable
17
BOLT
90109-06464-00
Unavailable
18
WASHER, SPEC''L SHAP
90209-06137-00
Unavailable
19
WASHER, SPRING
92995-06100-00
Unavailable
20
SUSPENSION WHEEL COMP
885-47320-01-00
$72.99
21
BEARING(8AB)
93306-00444-00
$41.99
22
CIRCLIP(5U8)
99009-42500-00
Unavailable
23
BOLT
90109-06464-00
Unavailable
24
WASHER, SPRING
92995-06100-00
Unavailable
25
WASHER, SPEC''L SHAP
90209-06137-00
Unavailable
26
BRACKET 4 SET
99999-02047-00
Unavailable
27
BRACKET 7 SET
99999-02048-00
Unavailable
28
BOLT(21W)
97017-06035-00
Unavailable
