1981 Yamaha EX440E Track Drive 1 Diagram

← All diagrams

Find the part on the Track Drive 1 diagram for your 1981 Yamaha EX440E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

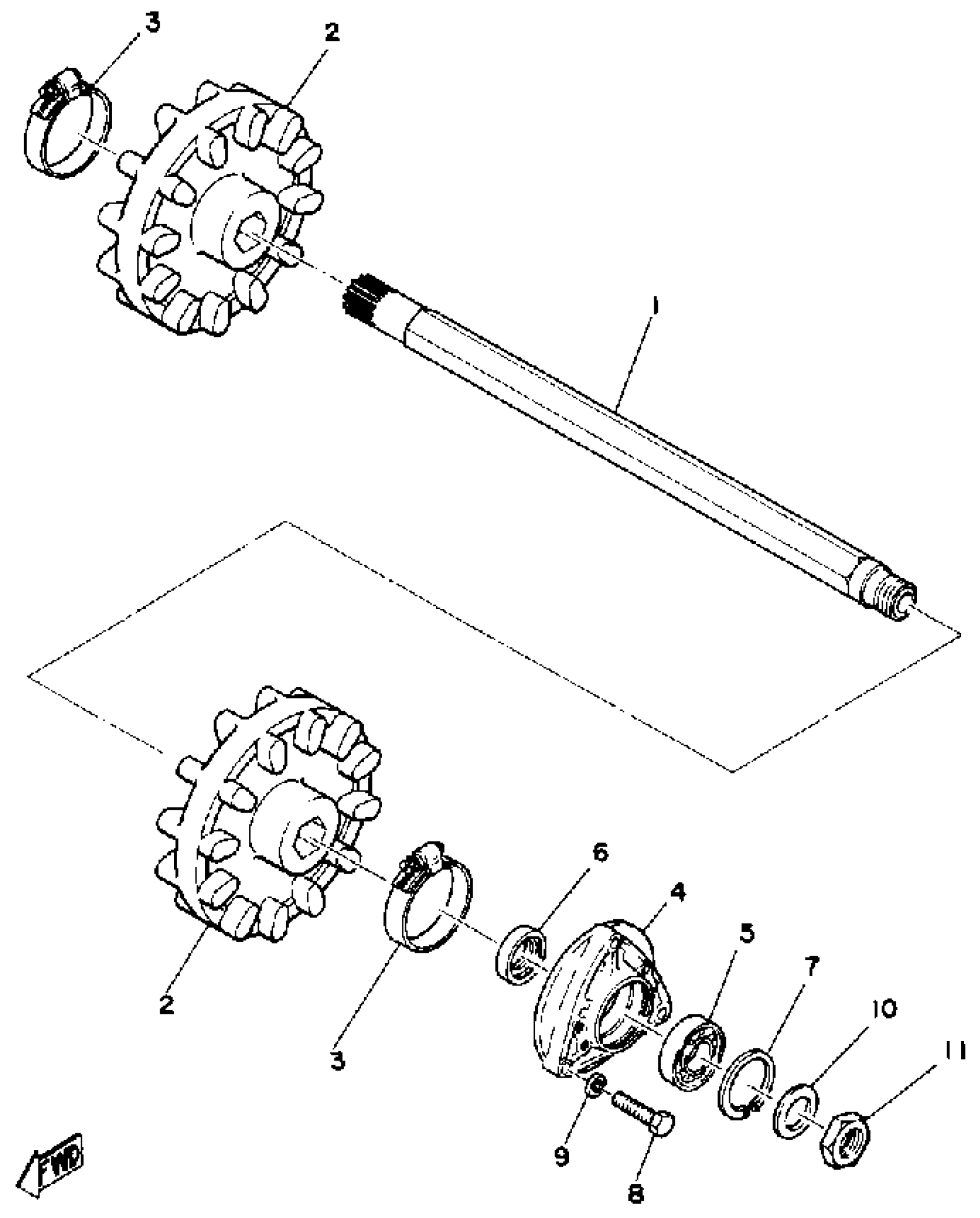

1981 Yamaha EX440E Track Drive 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, FRONT

8A5-W4751-00-00

1
Out of stock

2

WHEEL,SPROCKET 1

88T-W4753-01-00

1
Out of stock

3

BAND (MADE IN CANADA)

90460-50079-00

—
Out of stock

4

HOUSING, FRONT AXLE

841-47551-00-00

1
Out of stock

5

BEARING

93306-00412-00

1
Out of stock

6

OIL SEAL,SD-TYPE

93102-25332-00

1
Out of stock

7

CIRCLIP, R-TYPE

93420-44029-00

1
Out of stock

8

BOLT (682)

97013-08025-00

1

$6.80

In stock

9

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

10

WASHER 810475810000

90208-22001-00

1

$7.35

In stock

11

NUT (821-47579-00)

90170-22094-00

1

$5.34

In stock
