INTAKE

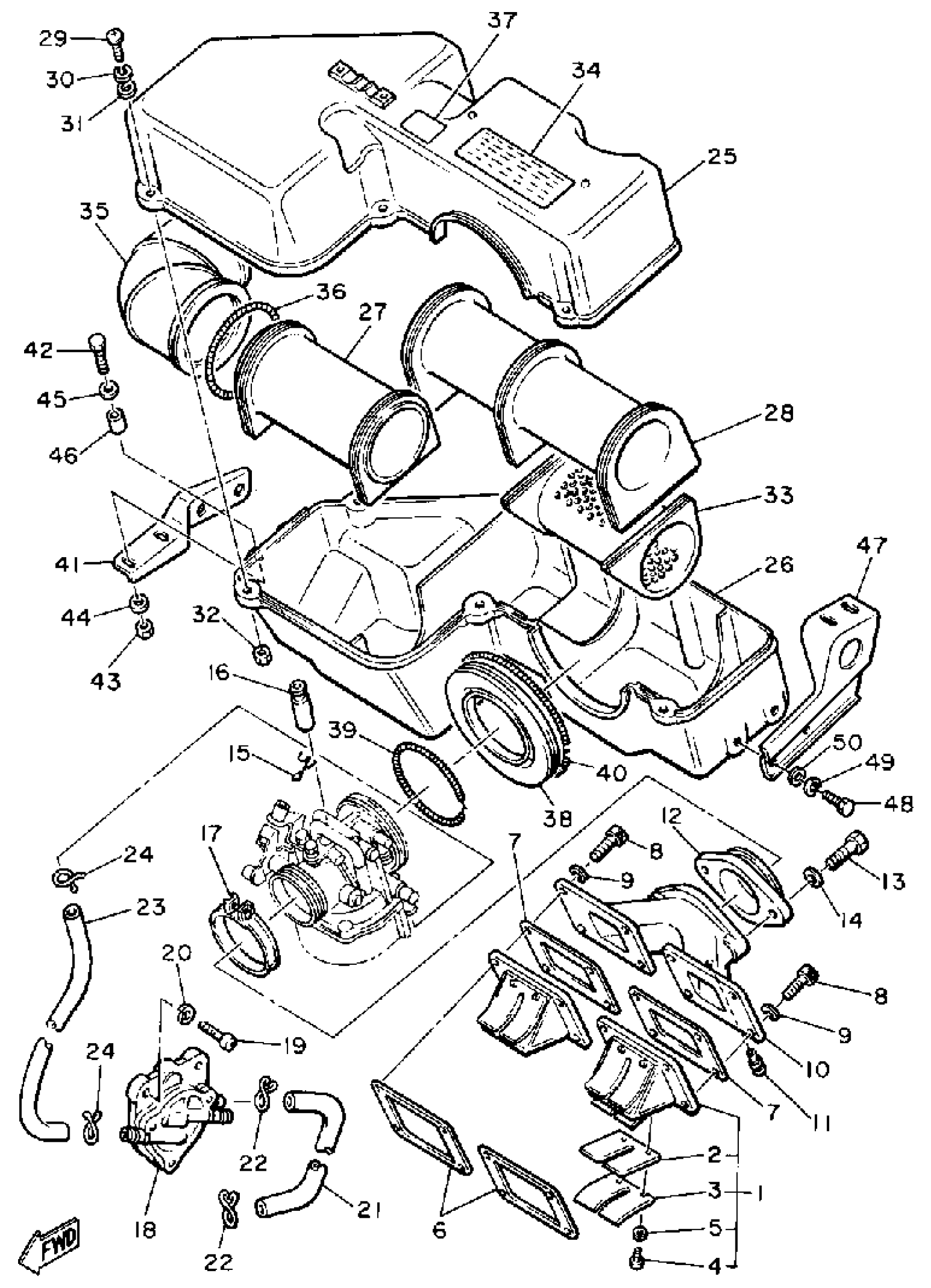

Yamaha EX440E 1981 INTAKE Diagram
#
1
REED VALVE ASSY
10V-13610-01-00
$163.99
2
REED VALVE 1
10V-13613-01-00
$29.99
3
. STOPPER, REED VALVE (10V-12616-01-00)
1UA-13616-00-00
Unavailable
4
SCREW, PAN HEAD (J10)
98580-03008-00
$3.55
5
WASHER, SPRING
92990-03100-00
$8.49
6
GASKET, VALVE SEAT
3TT-13621-00-00
$19.49
7
GASKET
866-13563-09-00
Unavailable
8
BOLT,SOCKET HEAD
91314-06025-00
$8.49
9
WASHER, PLATE (4H7)
90201-061A5-00
$7.49
10
JOINT, CARBURETOR
(885-13565-00-00)
Unavailable
11
NOZZLE
824-13552-00-00
Unavailable
12
MANIFOLD, INTAKE
8H8-13555-01-00
Unavailable
13
BOLT, HEXAGON
97017-08025-00
$10.49
14
.. WASHER, PLATE
92990-08600-00
Unavailable
15
CLAMP, THROTTLE
830-41222-00-00
Unavailable
16
BOOT
8J5-26352-00-00
Unavailable
17
CLAMP, HOSE
90460-60084-00
Unavailable
18
FUEL PUMP ASSY
8A5-24410-02-00
Unavailable
19
SCREW, PAN HEAD(6E5)
97880-06018-00
Unavailable
20
WASHER, SPRING
92995-06100-00
Unavailable
21
HOSE (L400)
90445-116K9-00
Unavailable
22
CLIP
90467-090A2-00
Unavailable
23
HOSE
90446-11326-00
Unavailable
24
CLIP (8J7)
90467-11009-00
Unavailable
25
SILENCER, INTAKE 1
8A5-14431-00-00
Unavailable
26
SILENCER, INTAKE 2
8A5-14441-00-00
Unavailable
27
PIPE
8A5-14419-00-00
Unavailable
28
PIPE
(8A5-14465-00-00)
Unavailable
29
SCREW, PAN HEAD(4MY)
98507-05018-00
Unavailable
30
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
31
WASHER, PLAIN (646)
92990-05600-00
Unavailable
32
NUT, HEXAGON (663)
95380-05600-00
Unavailable
33
PIPE
(8A5-14466-01-00)
Unavailable
34
LABEL, CAUTION
8A5-14488-00-00
Unavailable
35
PIPE, SUCTION
8A5-14423-00-00
Unavailable
36
SPRING TENSION 808144550000
90506-06083-00
Unavailable
37
LABEL, CAUTION
(8J7-14488-00-00)
Unavailable
38
JOINT, AIR CLNR 1
8G6-14453-00-00
Unavailable
39
SPRING TENSION 808144550000
90506-06083-00
Unavailable
40
SPRING, TENSION
90506-06131-00
Unavailable
41
STAY 1
(8A5-14493-00-00)
Unavailable
42
BOLT(3DM)
97024-06020-00
Unavailable
43
NUT, SELF-LOCKING
95617-06100-00
Unavailable
44
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
45
UNAVAILABLE IN PRICE BOOK (90201-06750)
90201-00580-00
Unavailable
46
COLLAR (90387-066J9)
90387-064W1-00
Unavailable
47
STAY 2
(8G6-14494-00-00)
Unavailable
48
BOLT (661)
97013-06012-00
Unavailable
49
WASHER, SPRING
92995-06100-00
Unavailable
50
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
