1981 Yamaha EX440E Guard-Luggage BOX Diagram

← All diagrams

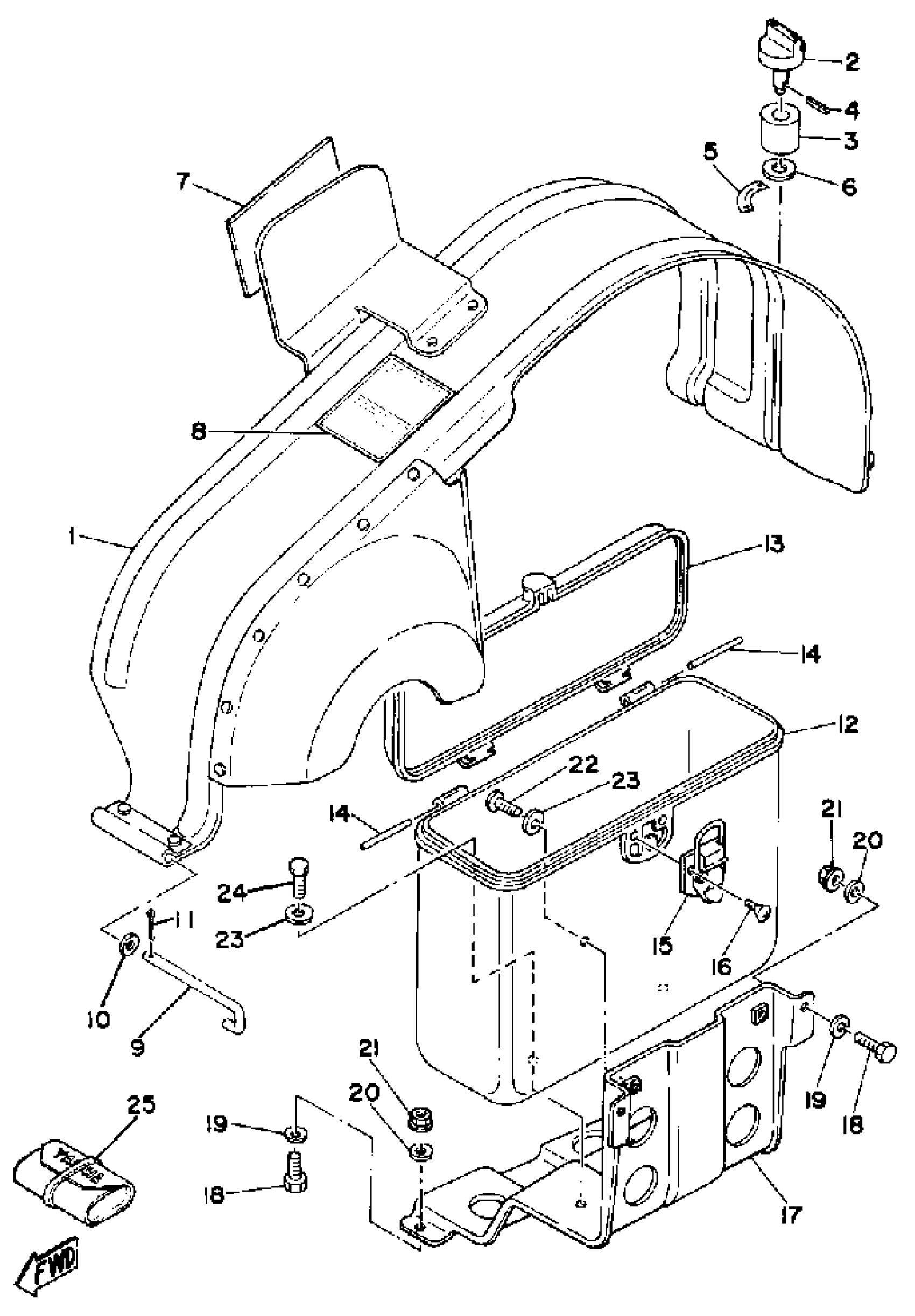

Find the part on the Guard-Luggage BOX diagram for your 1981 Yamaha EX440E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha EX440E Guard-Luggage BOX Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GUARD, DRIVE

8E7-77311-00-00

1
Out of stock

2

KNOB

8A5-77324-00-00

1
Out of stock

3

BUSH, SPEC''L RUBBER

90385-08009-00

1
Out of stock

4

PIN, SPRING (91609-40025-00)

91609-40024-00

1
Out of stock

5

EMBLEM 11

(829-77366-00-00)

1
Out of stock

6

WASHER, PLATE

90201-08104-00

1
Out of stock

7

DAMPER 1

(8G6-77319-00-00)

1
Out of stock

8

INDICATOR 3

(8L5-77743-00-00)

1
Out of stock

9

PIN(8E7)

91701-06082-00

1

$4.60

In stock

10

WASHER, PLATE (4H7)

90201-061A5-00

1

$5.86

In stock

11

PIN, COTTER

91490-20025-00

1

$1.31

In stock

12

LUGGAGE BOX

(8E7-77391-00-00)

1
Out of stock

13

COVER, LUGGAGE BOX

8E7-77392-00-00

1
Out of stock

14

PIN, SPEC''L SHAPE

90249-03021-00

1
Out of stock

15

LUGGE BOX LTCH ASSEMBLY

8E7-77340-00-00

1
Out of stock

16

SCREW, OVAL HEAD

(98602-03008-00)

1
Out of stock

17

STAY 1

(8E7-77397-00-00)

1
Out of stock

18

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

19

WASHER, PLATE (4H7)

90201-061A5-00

1

$5.86

In stock

20

WASHER, PLATE (4H7)

90201-061A5-00

1

$5.86

In stock

21

NUT, NYLON

95707-06300-00

—

$3.20

In stock

22

SCREW, BIND(J45)

98980-06012-00

—

$4.70

In stock

23

WASHER, PLATE

90201-06747-00

—

$6.17

In stock

24

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

25

TOOL KIT (8G6-28100-10)

8G6-28100-00-00

1
Out of stock
