1981 Yamaha EX440E Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1981 Yamaha EX440E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

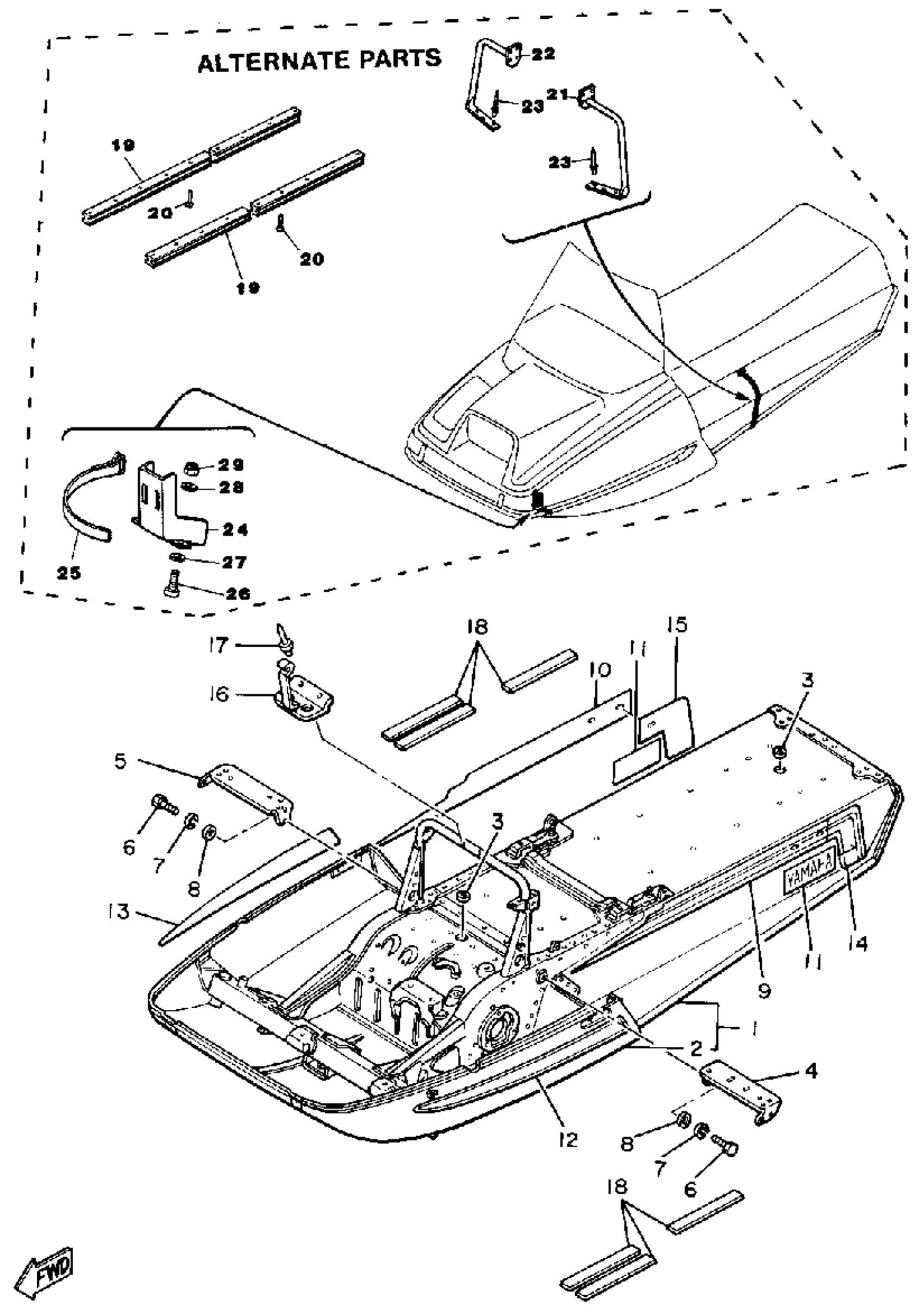

1981 Yamaha EX440E Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(8G6-21910-00-33)

1
Out of stock

2

PANEL, SUB FRAME 1 (8E7-21912-00)

878-21912-00-00

1
Out of stock

3

ORNAMENT, INSTRUMENT PANEL 2

810-77716-00-00

1
Out of stock

4

BRACKET 3

(878-23883-00-00)

1
Out of stock

5

BRACKET 4

8A5-23884-00-00

1
Out of stock

6

BOLT(JA9)

90101-08691-00

1

$4.65

In stock

7

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

8

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

9

EMBLEM 1

(8L5-77351-00-00)

1
Out of stock

10

EMBLEM 2

(8L5-77352-00-00)

1
Out of stock

11

EMBLEM 3

(8L5-77353-00-00)

1
Out of stock

12

EMBLEM 4

8H6-77354-00-00

1
Out of stock

13

EMBLEM 5

8H6-77355-00-00

1
Out of stock

14

EMBLEM 6

(8L5-77356-00-00)

1
Out of stock

15

EMBLEM 7

(8L5-77357-00-00)

1
Out of stock

16

BRACKET 5

8G9-23885-00-00

1
Out of stock

17

RIVET (856)

90267-48014-00

—
Out of stock

18

COVER, FOOTRESTOPTIONAL PARTS

8G6-27413-00-00

1
Out of stock

19

PROTECTOR, FRAME

888-21978-00-00

1
Out of stock

20

RIVET, FLAT HEAD

99100-40114-00

1
Out of stock

21

RNFCMNT, FTRST 1FOOTREST 1

888-21926-00-00

1
Out of stock

22

RNFCMNT, FTRST 2FOOTREST 2

888-21936-00-00

1
Out of stock

23

RIVET, BLIND (8H4)

90267-48053-00

—

$2.31

In stock

24

STAY, BELT

(8G9-77338-00-00)

1
Out of stock

25

BAND, SERVICE BAG

(8G9-77332-00-00)

1
Out of stock

26

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

27

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

28

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

29

NUT, NYLON

95707-05300-00

—

$2.74

In stock
