Description

Price

1

CDI MAGNETO ASSEMBLY

(8J7-85500-10-00)

Unavailable

2

. COIL, LIGHTING 1

8E7-85513-10-00

Unavailable

3

. COIL SOURCE 2

8E7-85512-10-00

Unavailable

4

COIL, CHARGE

8E7-85541-10-00

Unavailable

5

COIL PULSER

(888-85543-10-00)

Unavailable

6

LEAD WIRE ASSEMBLY

(8J7-85515-10-00)

Unavailable

7

. CLAMP

109-81328-11-00

Unavailable

8

CLAMP, LEAD

(363-85528-10-00)

Unavailable

9

. SPACER

647-81318-10-00

Unavailable

10

SCREW, PAN HEAD (E56)

98580-04010-00

$8.49

11

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

12

SCREW, PAN HEAD

110-81346-21-00

$5.49

13

SCREW, PAN

98507-05035-00

$8.49

14

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

15

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

16

. ROTOR ASSEMBLY

8J7-85550-10-00

Unavailable

17

SCREW, PAN

98507-06014-00

Unavailable

18

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

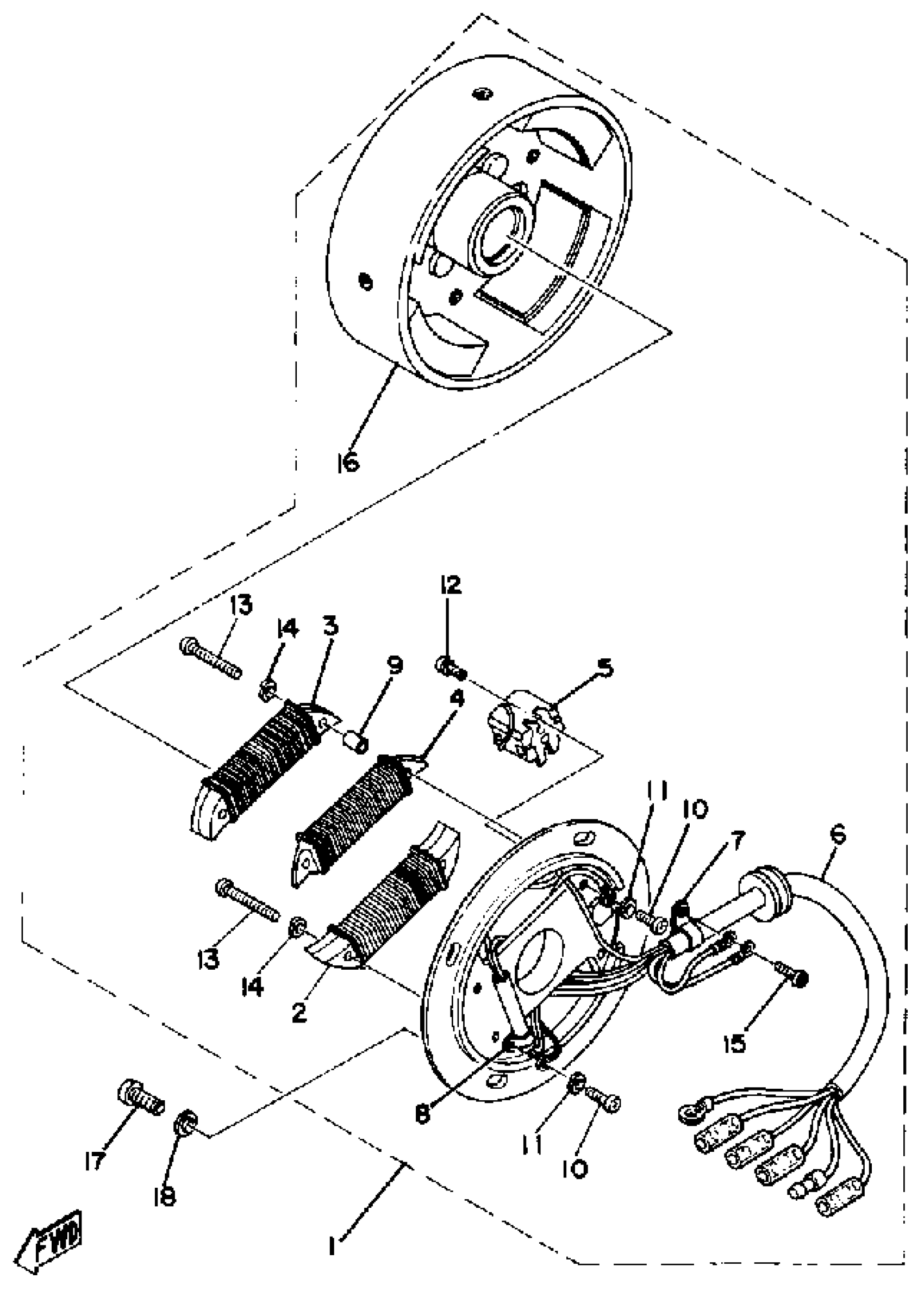

Yamaha EX440E 1981 C - D - I - MAGNETO Diagram

CDI MAGNETO ASSEMBLY

. COIL, LIGHTING 1

. COIL SOURCE 2

COIL, CHARGE

COIL PULSER

LEAD WIRE ASSEMBLY

. CLAMP

CLAMP, LEAD

. SPACER

SCREW, PAN HEAD (E56)

YBS67-4 WASHER, SPRING

SCREW, PAN HEAD

SCREW, PAN

YBS67-5 WASHER, SPRING

SCREW, PAN HEAD (713)

. ROTOR ASSEMBLY

SCREW, PAN

WASHER, PLATE (4H7)
