Description

Price

1

FRONT BUMPER

878-77510-00-00

Unavailable

2

NUT(6L2)

95333-08600-00

$2.49

3

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

4

.. WASHER, PLATE

92990-08600-00

Unavailable

5

BOLT, HEXAGON

97017-08025-00

$10.49

6

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

7

.. WASHER, PLATE

92990-08600-00

Unavailable

8

END, BUMPER

878-77523-01-00

Unavailable

9

BOLT HEXAGON

97001-05018-00

Unavailable

10

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

11

WASHER, PLAIN (646)

92990-05600-00

$0.80

12

BUMPER, REAR 1

8E7-77541-00-00

Unavailable

13

BOLT, HEXAGON

97013-08020-00

$1.16

14

.. WASHER, PLATE

92990-08600-00

Unavailable

15

NUT, NYLON

95717-08300-00

$2.70

16

FLAP

8V8-77595-00-00

Unavailable

17

RIVET, BLIND (8R6)

90267-48086-00

Unavailable

18

GRIP, ASSIST

FJ0-63771-30-00

Unavailable

19

BRKT, ASSIST GRIP

898-77576-00-00

Unavailable

20

WASHER, PLATE (4W3)

90201-086A3-00

Unavailable

21

NUT, CROWN

95303-08800-00

Unavailable

22

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

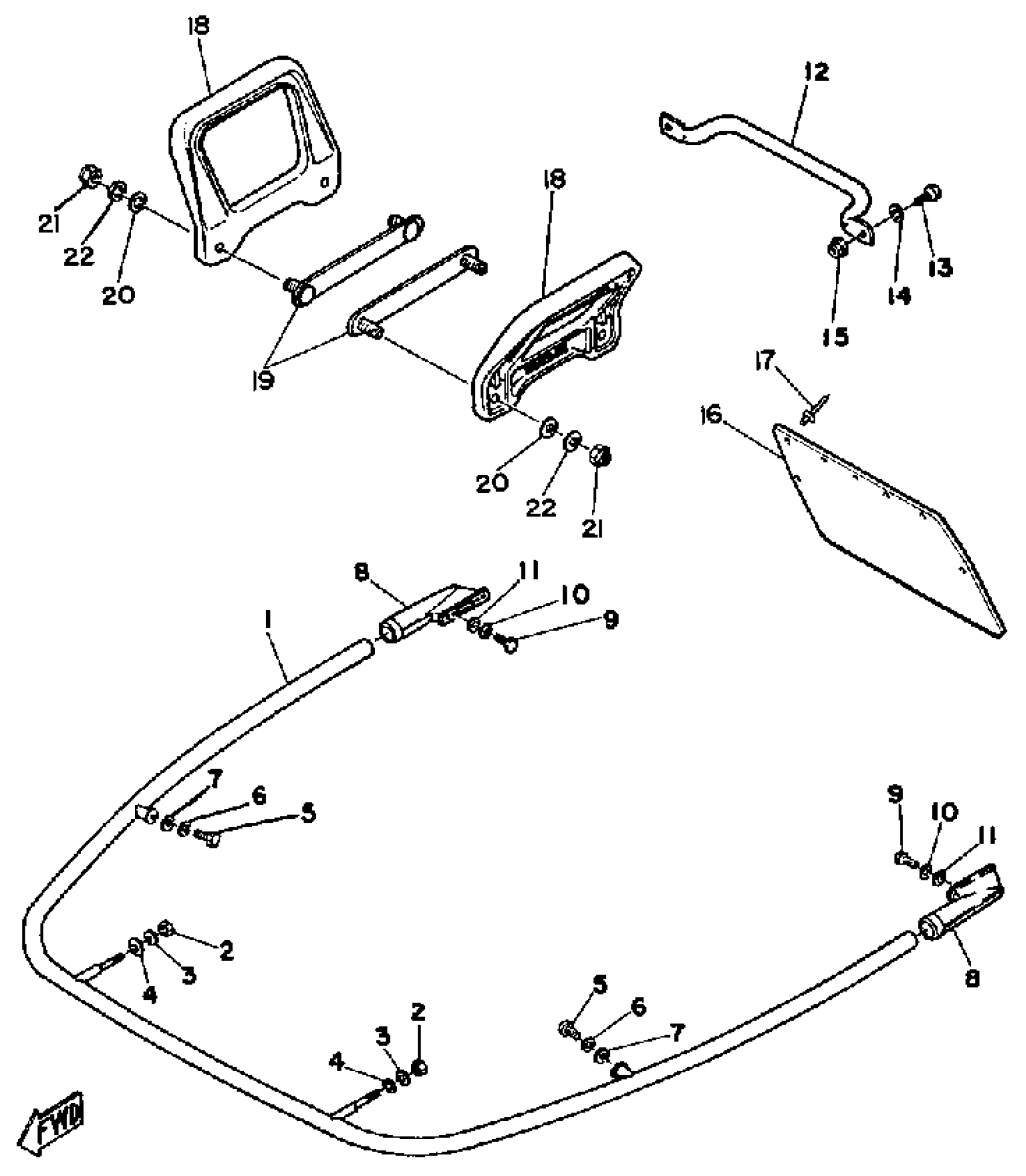

Yamaha EX440E 1981 BUMPER Diagram

FRONT BUMPER

NUT(6L2)

YBS67-8 WASHER, SPRING

.. WASHER, PLATE

BOLT, HEXAGON

YBS67-8 WASHER, SPRING

.. WASHER, PLATE

END, BUMPER

BOLT HEXAGON

YBS67-5 WASHER, SPRING

WASHER, PLAIN (646)

BUMPER, REAR 1

BOLT, HEXAGON

.. WASHER, PLATE

NUT, NYLON

FLAP

RIVET, BLIND (8R6)

GRIP, ASSIST

BRKT, ASSIST GRIP

WASHER, PLATE (4W3)

NUT, CROWN

YBS67-8 WASHER, SPRING
