1980 Yamaha EX440D Track Supension 1 Diagram

← All diagrams

Find the part on the Track Supension 1 diagram for your 1980 Yamaha EX440D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

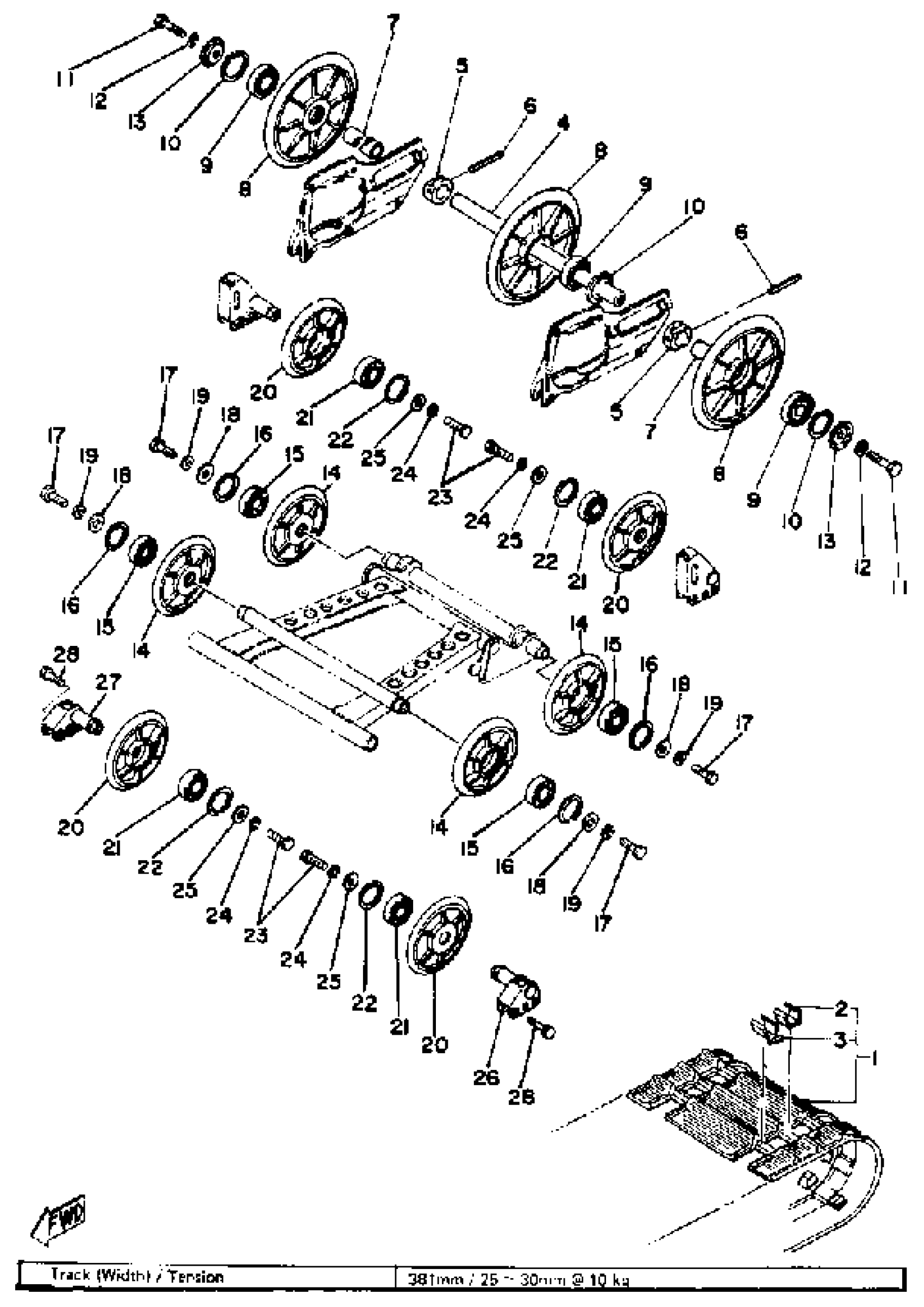

1980 Yamaha EX440D Track Supension 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TRACK ASY

8V0-47110-00-00

1
Out of stock

2

PLATE, REINFORCEMENT

89A-47113-00-00

1

$4.17

In stock

3

METAL, SLIDE

8A5-47115-00-00

1
Out of stock

4

AXLE, REAR

8A5-47521-00-00

1
Out of stock

5

COLLAR 3

885-47479-00-00

1
Out of stock

6

PIN, SPRING (663)

91690-40040-00

1

$3.92

In stock

7

COLLAR

90387-20510-00

1
Out of stock

8

WHEEL GUIDE COMP.

8L4-47530-00-00

1
Out of stock

9

1

$33.86

In stock

10

CIRCLIP(48Y)

99009-47500-00

1

$7.66

In stock

11

BOLT, HEXAGON

97013-08020-00

1

$1.54

In stock

12

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

13

WASHER, SPEC''L SHAP

90209-08124-00

1
Out of stock

14

SUSPENSION WHEEL COMP

885-47320-01-00

1

$67.65

In stock

15

BEARING(8AB)

93306-00444-00

1

$35.70

In stock

16

CIRCLIP(5U8)

99009-42500-00

—

$6.77

In stock

17

BOLT

90109-06464-00

1
Out of stock

18

WASHER, SPEC''L SHAP

90209-06137-00

1
Out of stock

19

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

20

SUSPENSION WHEEL COMP

885-47320-01-00

1

$67.65

In stock

21

BEARING(8AB)

93306-00444-00

1

$35.70

In stock

22

CIRCLIP(5U8)

99009-42500-00

—

$6.77

In stock

23

BOLT

90109-06464-00

1
Out of stock

24

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

25

WASHER, SPEC''L SHAP

90209-06137-00

1
Out of stock

26

BRACKET 4 SET

99999-02047-00

1
Out of stock

27

BRACKET 7 SET

99999-02048-00

1
Out of stock

28

BOLT(21W)

97017-06035-00

—

$2.91

In stock
