TRACK DRIVE 2

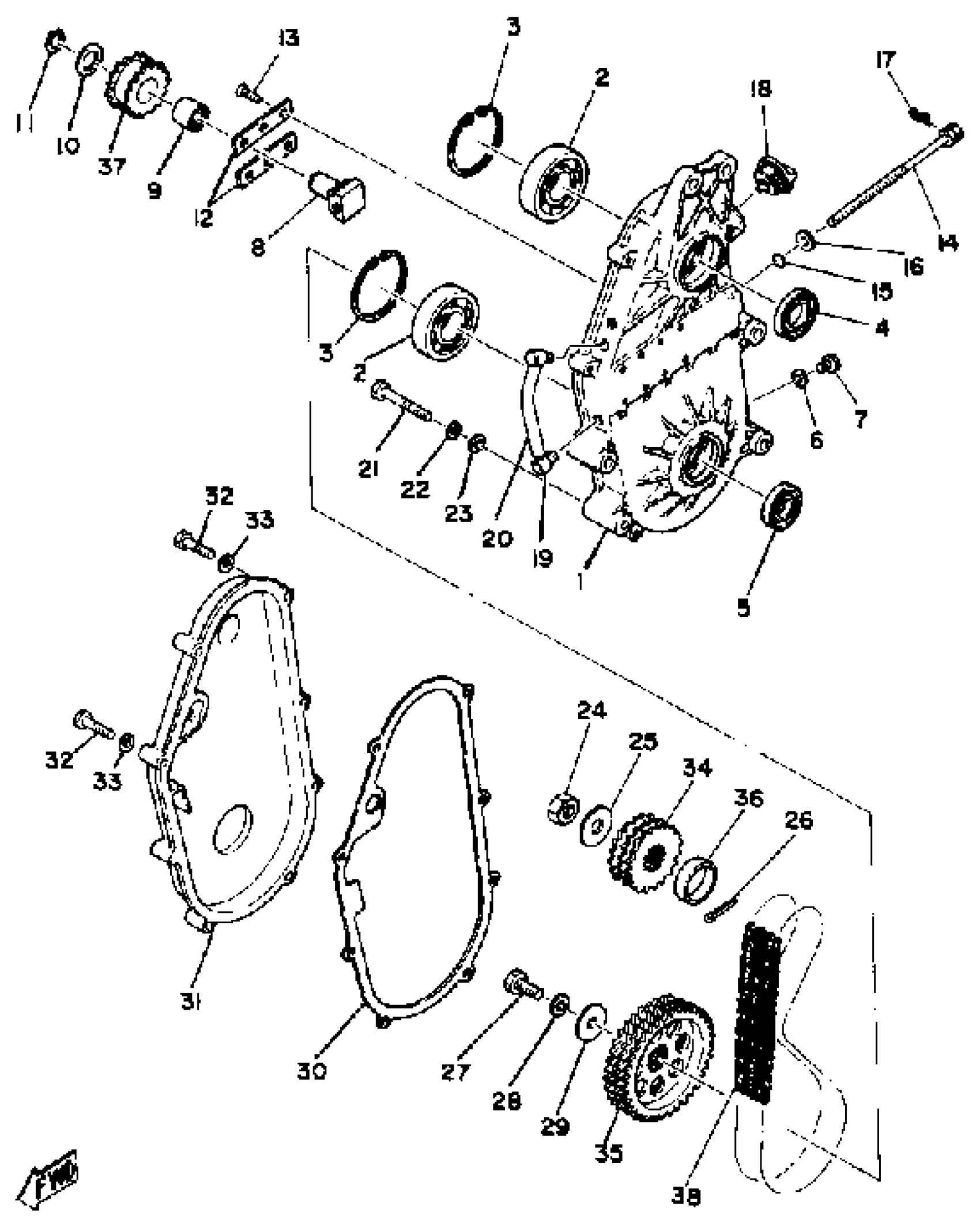

Yamaha EX440D 1980 TRACK DRIVE 2 Diagram
#
1
HOUSING, CHAIN
(888-47541-00-00)
Unavailable
2
BEARING (8R9)
93306-30536-00
Unavailable
3
CIRCLIP(MF1)
99009-62500-00
$8.49
4
OIL SEAL, SD-TYPE
93102-33140-00
Unavailable
5
OIL SEAL (25X44X6-810)
93102-25081-00
$5.60
6
GASKET 838153840000
90430-06016-00
$8.49
7
SCREW PAN HEAD
98580-06010-00
$8.49
8
TENSIONER
878-47611-00-00
Unavailable
9
BRG,CYL-CAL ROLLER 20G NT
93317-31701-00
Unavailable
10
WASHER
90201-17256-00
Unavailable
11
CIRCLIP(1EY)
99009-17400-00
$4.73
12
HOLDER
8A7-47613-00-00
Unavailable
13
SCREW, FLAT
98707-06014-00
$8.49
14
BOLT
90109-08357-00
Unavailable
15
O-RING
93210-08003-00
$9.49
16
.. WASHER, PLATE
92990-08600-00
Unavailable
17
CLIP
90468-16065-00
Unavailable
18
CAP 2
857-47559-00-00
Unavailable
19
BREATHER
583-15371-00-00
Unavailable
20
HOSE (L420)
90445-092K1-00
Unavailable
21
BOLT, HEXAGON
97013-08055-00
Unavailable
22
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
23
.. WASHER, PLATE
92990-08600-00
Unavailable
24
NUT(6TC)
95337-14600-00
Unavailable
25
WASHER, PLATE
90201-14319-00
Unavailable
26
PIN, COTTER
91490-30030-00
Unavailable
27
BOLT(6TD)
97017-10025-00
Unavailable
28
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
29
WASHER, PLATE(8BV)
90201-100S7-00
Unavailable
30
GASKET
878-47544-08-00
Unavailable
31
CAP, HOUSING
888-47543-00-00
Unavailable
32
BOLT(3RV)
97014-06035-00
Unavailable
33
WASHER, PLAIN (646)
92990-06600-00
Unavailable
34
SPRKT, CHAIN DR 20T (20T)
829-17682-00-00
Unavailable
34
SPRKT, CHAIN DR 15T (878-17682-50) (15T)
829-17682-50-00
Unavailable
34
SPRKT, CHAIN DR 16T (16T)
829-17682-60-00
Unavailable
34
SPRKT, CHAIN DR 17T (17T)
829-17682-70-00
Unavailable
34
SPRKT, CHAIN DR 18T (18T)
829-17682-80-00
Unavailable
34
SPRKT, CHAIN DR 19T (878-17682-90) (19T)
829-17682-90-00
Unavailable
34
SPROCKET, CHAIN DR (878-17693-10) (21T)
8U9-17693-10-00
Unavailable
34
SPROCKET, CHAIN DR (878-17693-20) (22T)
8U9-17693-20-00
Unavailable
35
SPROCKET,CHN DRVN
8U9-47548-90-00
Unavailable
35
SPROCKET, CHN DRVN (31T)
8U9-47587-00-00
Unavailable
35
SPROCKET, CHN DRVN (888-47587-00) (33T)
8U9-47587-10-00
Unavailable
35
SPROCKET, CHN DRVN (878-47587-20) (35T)
8U9-47587-30-00
Unavailable
36
COLLAR
90387-25259-00
Unavailable
37
WHEEL
878-47612-00-00
Unavailable
38
CHAIN 68 (RS35V-368L)
94850-35068-00
Unavailable
38
CHAIN 70 (RS35V-3 70L)
94850-35070-00
Unavailable
38
CHAIN 72 (RS35V-3 72L)
94850-35072-00
Unavailable
38
CHAIN 74
94850-35074-00
Unavailable
