Description

Price

1

OIL PUMP ASSEMBLY

8G6-13101-00-00

Unavailable

2

SHIM,PLUNGER

137-13137-00-03

$5.49

2

SHIM,PLUNGER

137-13137-00-05

$6.99

2

SHIM,PLUNGER

137-13137-00-10

$7.99

3

PLATE, ADJUSTING

137-13138-01-00

Unavailable

4

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

5

NUT, HEXAGON (663)

95380-05600-00

$8.49

6

. PLUG

90338-21100-00

Unavailable

7

. SCREW, PAN HEAD

90157-04009-00

Unavailable

8

WASHER, PLAIN (646)

92990-04600-00

$5.99

9

GASKET 137131870000

90430-04004-00

$9.49

10

BALL

93505-32002-00

$2.92

11

SPRING (278-13169-00)

90501-02018-00

$9.49

12

NOZZLE

353-13552-01-00

$9.99

13

HOSE (L200)

90445-05N13-00

$8.49

14

HOSE (L200)

90445-05N13-00

$8.49

15

CLIP (214-13164-00)

90468-02033-00

Unavailable

16

COVER, ADJUST PULLEY

8A5-13146-01-00

Unavailable

17

SCREW, PAN HEAD

98507-04018-00

Unavailable

18

GASKET, PUMP CASE

126-13116-01-00

Unavailable

19

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

20

CLIP (214-13164-00)

90468-02033-00

Unavailable

21

PUMP CABLE ASSEMBLY

8G6-26320-01-00

Unavailable

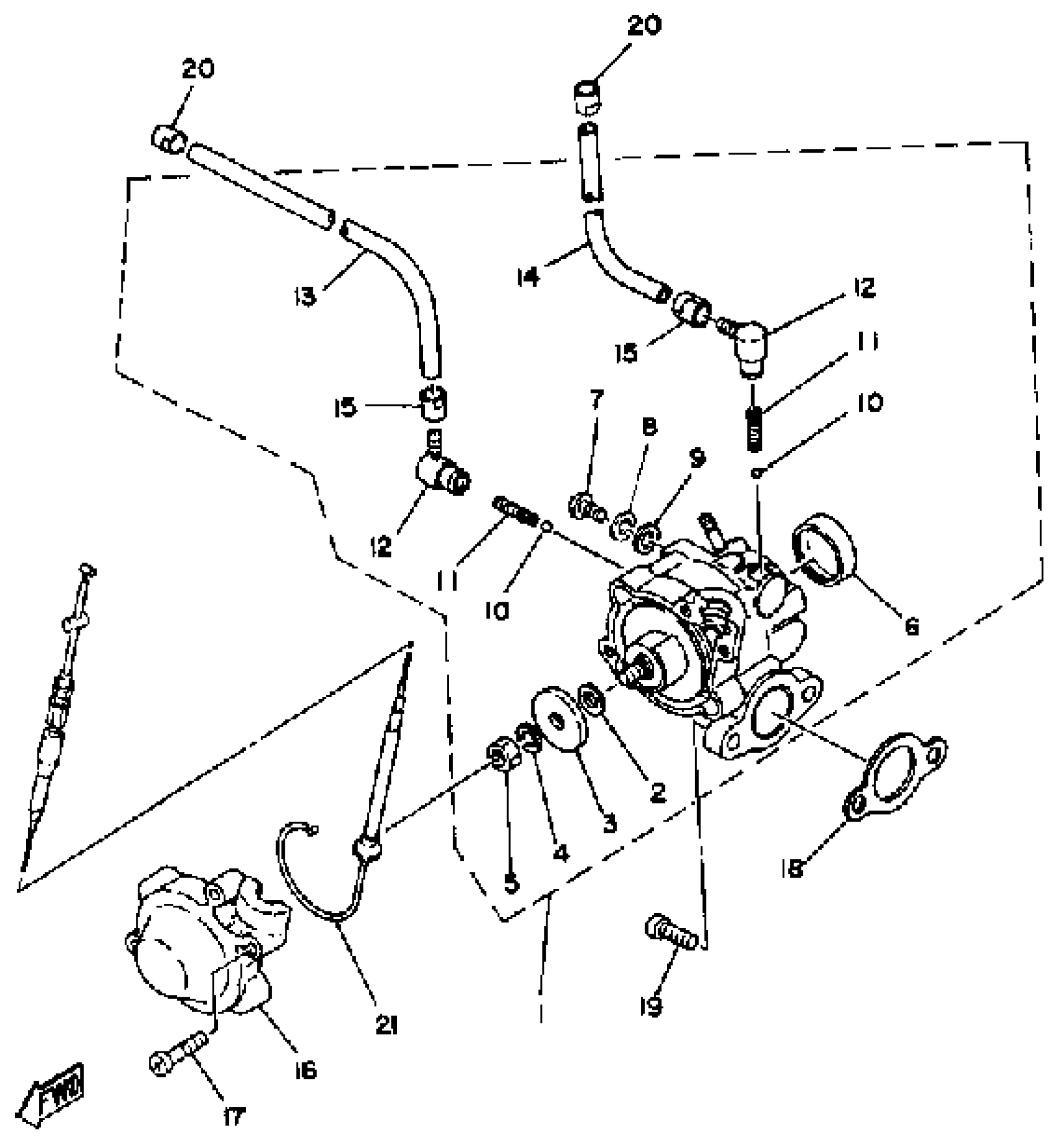

Yamaha EX440D 1980 OIL PUMP Diagram

OIL PUMP ASSEMBLY

SHIM,PLUNGER

SHIM,PLUNGER

SHIM,PLUNGER

PLATE, ADJUSTING

YBS67-5 WASHER, SPRING

NUT, HEXAGON (663)

. PLUG

. SCREW, PAN HEAD

WASHER, PLAIN (646)

GASKET 137131870000

BALL

SPRING (278-13169-00)

NOZZLE

HOSE (L200)

HOSE (L200)

CLIP (214-13164-00)

COVER, ADJUST PULLEY

SCREW, PAN HEAD

GASKET, PUMP CASE

SCREW, PAN HEAD(6B0)

CLIP (214-13164-00)

PUMP CABLE ASSEMBLY
