Description

Price

1

GUARD, DRIVE

8E7-77311-00-00

Unavailable

2

KNOB

8A5-77324-00-00

Unavailable

3

BUSH, SPEC''L RUBBER

90385-08009-00

Unavailable

4

PIN, SPRING (91609-40025-00)

91609-40024-00

Unavailable

5

EMBLEM 11

(829-77366-00-00)

Unavailable

6

WASHER, PLATE

90201-08104-00

Unavailable

7

DAMPER 1

(8G6-77319-00-00)

Unavailable

8

INDICATOR 3

(8J7-77743-00-00)

Unavailable

9

PIN(8E7)

91701-06082-00

$5.60

10

WASHER, PLAIN (646)

92990-06600-00

$2.80

11

PIN, COTTER

91490-20025-00

$1.99

12

LUGGAGE BOX

(8E7-77391-00-00)

Unavailable

13

COVER, LUGGAGE BOX

8E7-77392-00-00

Unavailable

14

PIN, SPEC''L SHAPE

90249-03021-00

Unavailable

15

LUGGE BOX LTCH ASSEMBLY

8E7-77340-00-00

Unavailable

16

SCREW, FLAT

98707-03008-00

Unavailable

17

STAY 1

(8E7-77397-00-00)

Unavailable

18

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

19

WASHER, PLAIN (646)

92990-06600-00

$2.80

20

WASHER, PLAIN (646)

92990-06600-00

$2.80

21

NUT, NYLON

95707-06300-00

Unavailable

22

SCREW, BIND(J45)

98980-06012-00

Unavailable

23

WASHER, PLATE

90201-06747-00

Unavailable

24

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

25

TOOL KIT (8G6-28100-10)

8G6-28100-00-00

Unavailable

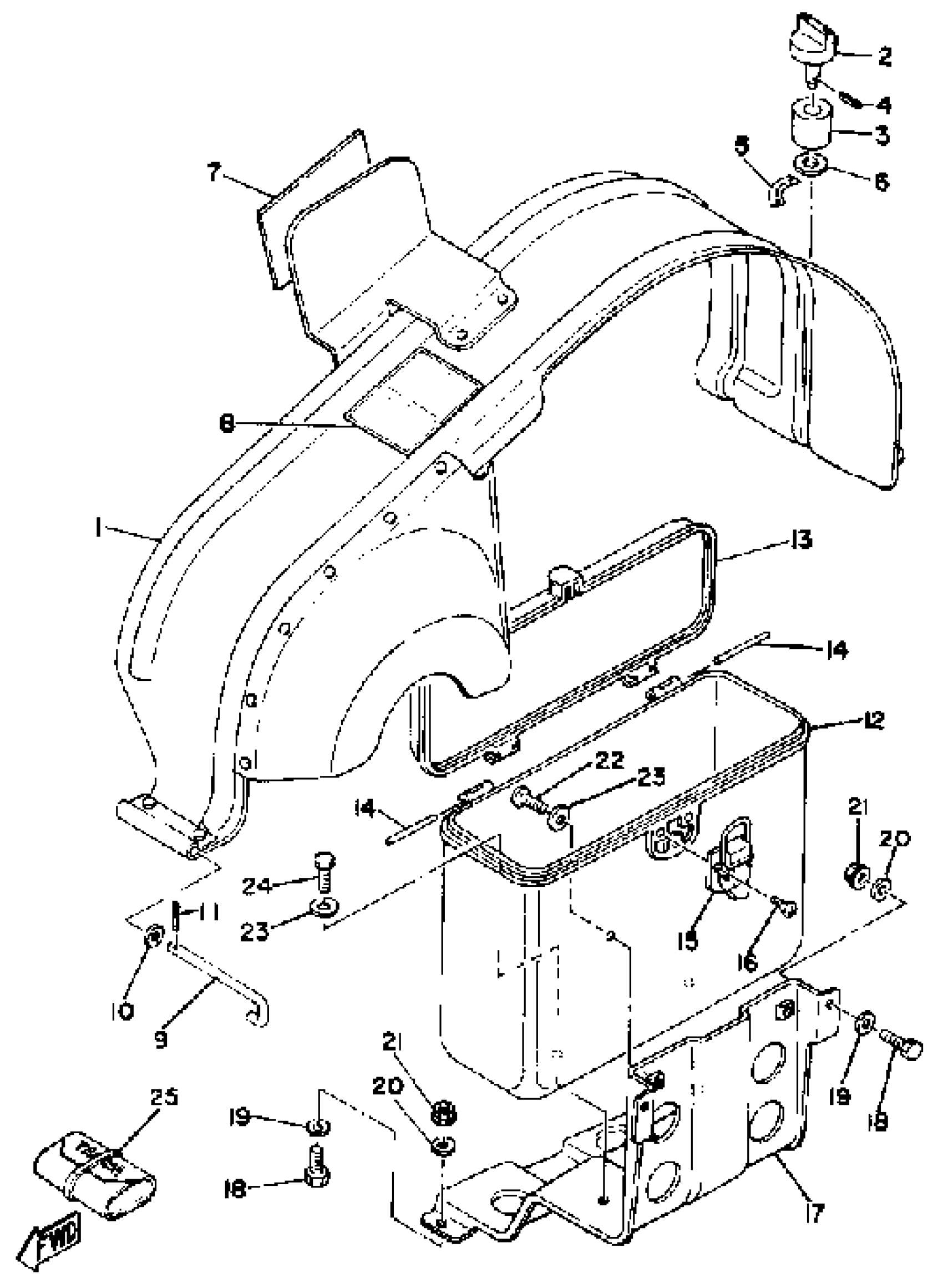

Yamaha EX440D 1980 GUARD - LUGGAGE BOX Diagram

GUARD, DRIVE

KNOB

BUSH, SPEC''L RUBBER

PIN, SPRING (91609-40025-00)

EMBLEM 11

WASHER, PLATE

DAMPER 1

INDICATOR 3

PIN(8E7)

WASHER, PLAIN (646)

PIN, COTTER

LUGGAGE BOX

COVER, LUGGAGE BOX

PIN, SPEC''L SHAPE

LUGGE BOX LTCH ASSEMBLY

SCREW, FLAT

STAY 1

BOLT, HEXAGON DEEP RECESS

WASHER, PLAIN (646)

WASHER, PLAIN (646)

NUT, NYLON

SCREW, BIND(J45)

WASHER, PLATE

BOLT, HEXAGON DEEP RECESS

TOOL KIT (8G6-28100-10)
