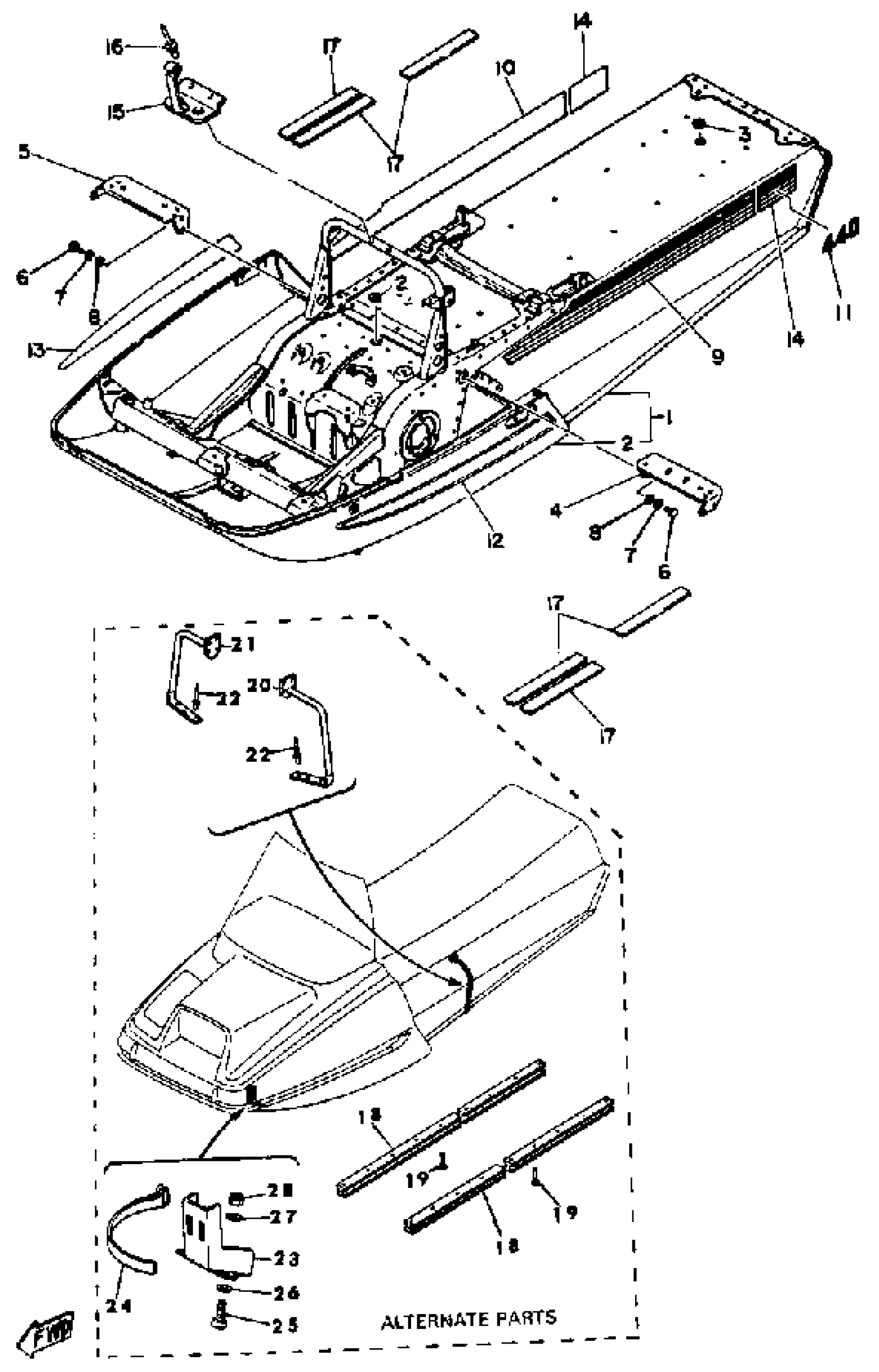

Yamaha EX440D 1980 FRAME Diagram
#
1
UNAVAILABLE IN PRICE BOOK (8G6-21910-00)
8G6-21910-33-00
Unavailable
2
PANEL, SUB FRAME 1 (8E7-21912-00)
878-21912-00-00
Unavailable
3
ORNAMENT, INSTRUMENT PANEL 2
810-77716-00-00
Unavailable
4
BRACKET 3
(878-23883-00-00)
Unavailable
5
BRACKET 4
8A5-23884-00-00
Unavailable
6
BOLT(JA9)
90101-08691-00
$4.29
7
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
8
.. WASHER, PLATE
92990-08600-00
Unavailable
9
EMBLEM 1
8J7-77351-00-00
Unavailable
10
EMBLEM 2
8J7-77352-00-00
Unavailable
11
EMBLEM 3
8J7-77353-00-00
Unavailable
12
EMBLEM 4
8H6-77354-00-00
Unavailable
13
EMBLEM 5
8H6-77355-00-00
Unavailable
14
EMBLEM 11
8J7-77366-00-00
Unavailable
15
BRACKET 5
8G9-23885-00-00
Unavailable
16
RIVET (856)
90267-48014-00
Unavailable
17
COVER, FOOTRESTOPTIONAL PARTS
8G6-27413-00-00
Unavailable
18
PROTECTOR, FRAME
888-21978-00-00
Unavailable
19
RIVET, FLAT HEAD
99100-40114-00
Unavailable
20
RNFCMNT, FTRST 1FOOTREST 1
888-21926-00-00
Unavailable
21
RNFCMNT, FTRST 2FOOTREST 2
888-21936-00-00
Unavailable
22
RIVET, BLIND (8H4)
90267-48053-00
Unavailable
23
STAY, BELT
(8G9-77338-00-00)
Unavailable
24
BAND, SERVICE BAG
(8G9-77332-00-00)
Unavailable
25
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
26
WASHER, PLAIN (646)
92990-05600-00
Unavailable
27
WASHER, PLAIN (646)
92990-05600-00
Unavailable
28
NUT, NYLON
95707-05300-00
Unavailable
