Description

Price

1

EXHAUST PIPE ASSEMBLY L

(8H6-14610-00-00)

Unavailable

2

GASKET, EXHAUST PIPE

89A-14613-00-00

$16.49

3

BOLT,SOCKET

91314-08025-00

$8.49

4

WASHER(JN5)

92907-08100-00

$8.49

4

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

5

SPRING, MUFFLER

821-14773-00-00

$18.49

6

MUFFLER ASSEMBLY L

(8H6-14710-00-00)

Unavailable

7

STAY, MUFFLER 1

8A5-14771-00-00

Unavailable

8

BOLT(JA9)

90101-08691-00

$4.29

9

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

10

.. WASHER, PLATE

92990-08600-00

Unavailable

11

STAY, MUFFLER 2

(8A5-14772-01-00)

Unavailable

12

SPRING, TENSION

90506-16130-00

Unavailable

14

PROTECTOR, MUFFLER 2

8A5-14728-02-00

Unavailable

14

SPRING, TENSION

90506-14207-00

Unavailable

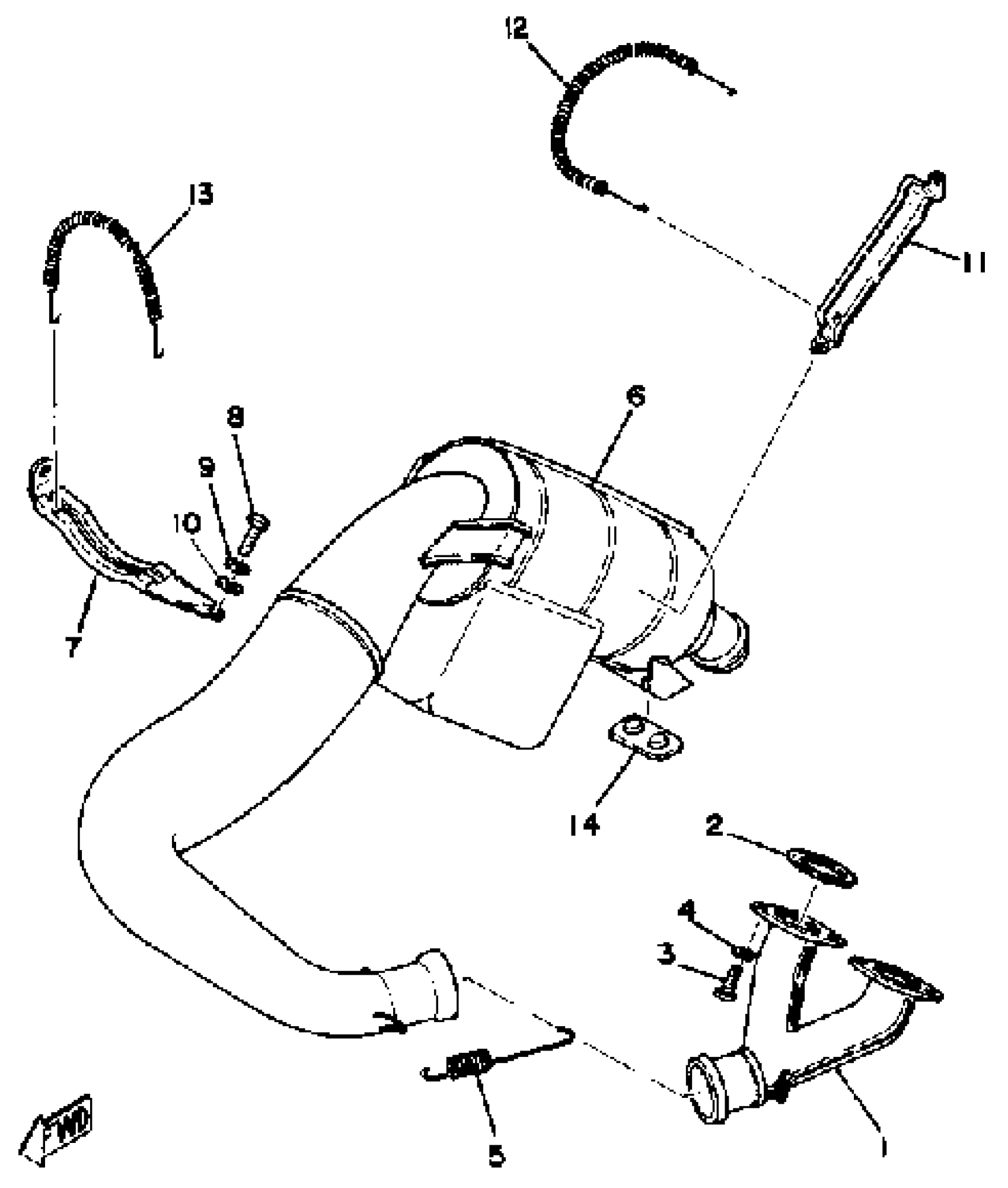

Yamaha EX440D 1980 EXHAUST Diagram

EXHAUST PIPE ASSEMBLY L

GASKET, EXHAUST PIPE

BOLT,SOCKET

WASHER(JN5)

YBS67-8 WASHER, SPRING

SPRING, MUFFLER

MUFFLER ASSEMBLY L

STAY, MUFFLER 1

BOLT(JA9)

YBS67-8 WASHER, SPRING

.. WASHER, PLATE

STAY, MUFFLER 2

SPRING, TENSION

PROTECTOR, MUFFLER 2

SPRING, TENSION
