Description

Price

1

CRANKCASE ASSEMBLY

(8A5-15100-00-00)

Unavailable

2

PIN, DOWEL

99530-12016-00

$4.89

3

BOLT, HEXAGON

97013-08050-00

Unavailable

4

.. WASHER, PLATE

92990-08600-00

Unavailable

5

BOLT, HEXAGON

97013-08055-00

$2.55

6

.. WASHER, PLATE

92990-08600-00

Unavailable

7

BOLT(6TC)

97027-08070-00

Unavailable

8

.. WASHER, PLATE

92990-08600-00

Unavailable

9

PIN,DOWEL (168)

93604-12037-00

$8.49

10

PIPE, JOINT

8E4-24461-00-00

Unavailable

11

BOLT, DOME HEAD

90106-10034-00

Unavailable

12

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

13

WASHER, PLATE(8BV)

90201-100S7-00

$11.49

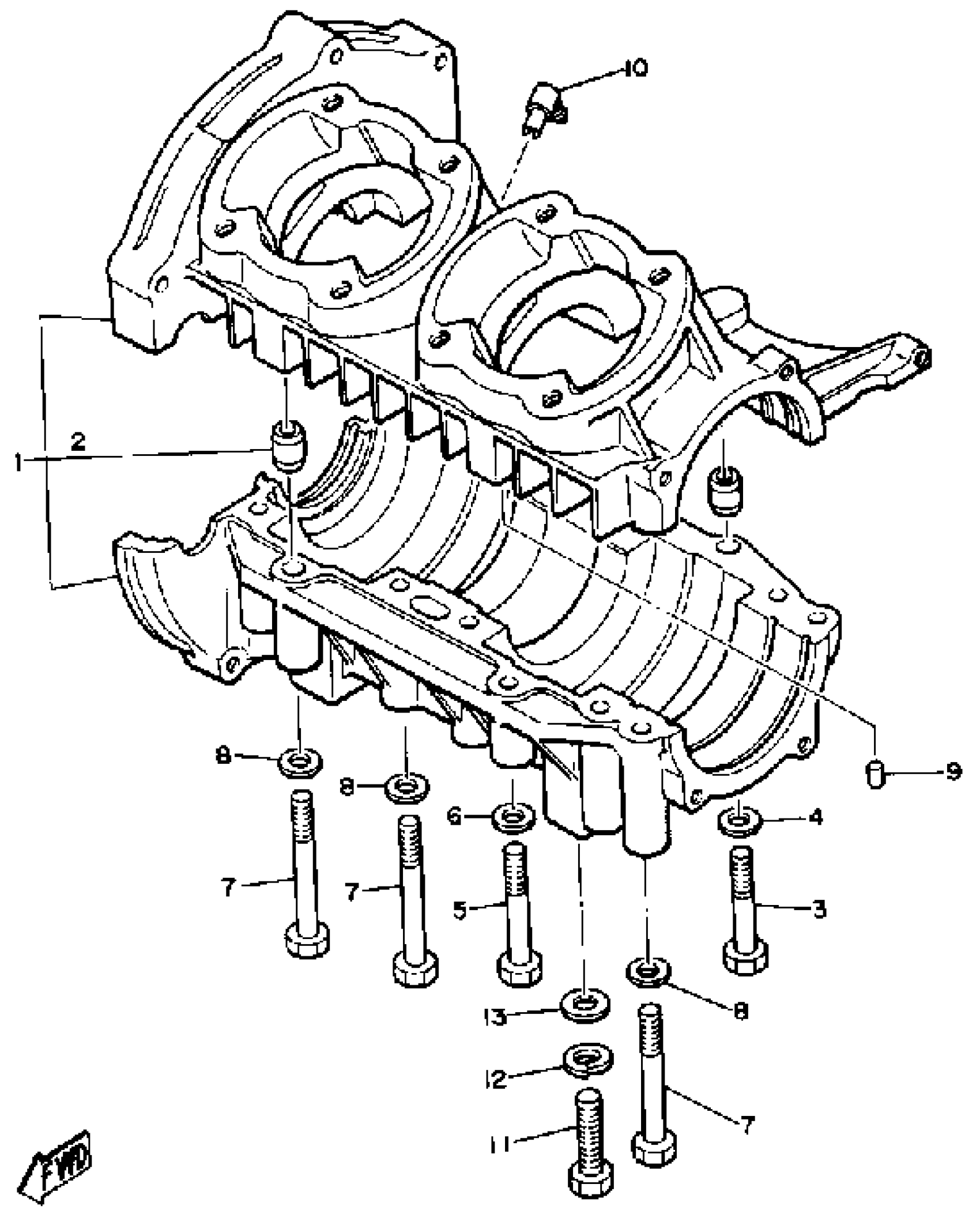

Yamaha EX440D 1980 CRANKCASE Diagram

CRANKCASE ASSEMBLY

PIN, DOWEL

BOLT, HEXAGON

.. WASHER, PLATE

BOLT, HEXAGON

.. WASHER, PLATE

BOLT(6TC)

.. WASHER, PLATE

PIN,DOWEL (168)

PIPE, JOINT

BOLT, DOME HEAD

YBS67-10 WASHER, SPRING

WASHER, PLATE(8BV)
