AIR SHROUD - FAN

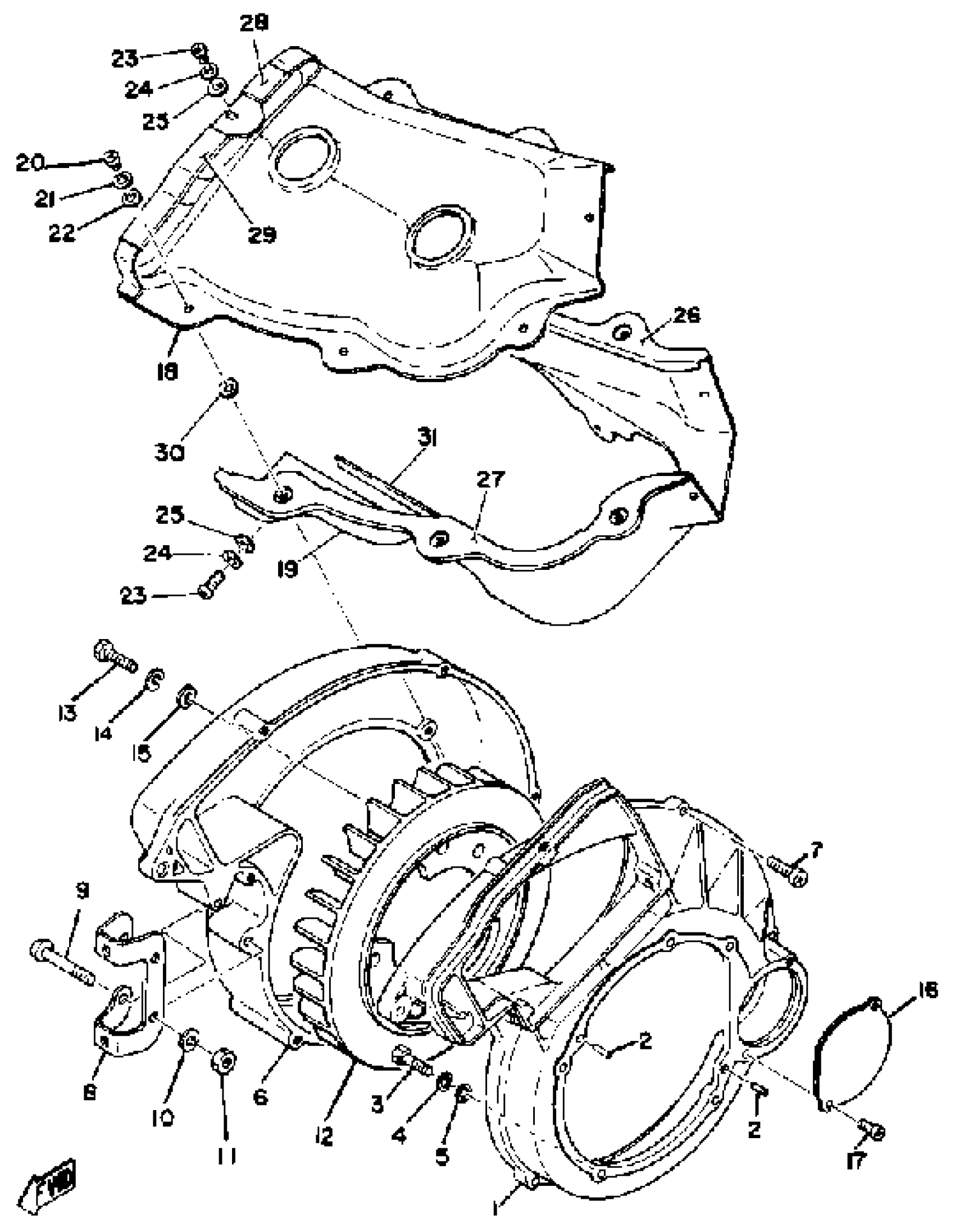

Yamaha EX440D 1980 AIR SHROUD - FAN Diagram
#
1
CASE, FAN
(838-12621-00-00)
Unavailable
2
PIN,DOWEL (168)
93604-12037-00
$8.49
3
BOLT, HEXAGON
97017-06025-00
$4.24
4
WASHER, SPRING
92995-06100-00
Unavailable
5
WASHER, PLAIN (646)
92990-06600-00
$2.80
6
CASE, FAN 2
838-12622-00-00
Unavailable
7
SCREW, PAN HEAD (76T)
98517-06025-00
$3.77
8
UNAVAILABLE IN PRICE BOOK
8E7-12410-00-0
Unavailable
9
SCREW PAN HEAD
98580-06545-00
$5.60
10
WASHER, SPRING
92995-06100-00
Unavailable
11
NUT, HEXAGON
95380-06600-00
Unavailable
12
FAN
838-12611-00-00
Unavailable
13
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
$2.76
14
WASHER, SPRING
92995-06100-00
Unavailable
15
WASHER, PLAIN (646)
92990-06600-00
$2.80
16
PLATE
(893-12633-00-00)
Unavailable
17
SCREW, PAN HEAD(62X)
97885-05010-00
Unavailable
18
AIR SHROUD, CYLINDER 1
8A1-12651-00-00
Unavailable
19
AIR SHROUD, CYLINDER 2
(866-12652-01-00)
Unavailable
20
SCREW, PAN
98517-06012-00
Unavailable
21
WASHER, SPRING
92907-06100-00
Unavailable
22
WASHER(6TA)
92907-06600-00
Unavailable
23
SCREW, PAN HEAD(3TJ)
98507-06016-00
Unavailable
24
WASHER, SPRING
92907-06100-00
Unavailable
25
WASHER(6TA)
92907-06600-00
Unavailable
26
DAMPER, AIR SHRD 1
(8A1-12658-00-00)
Unavailable
27
DAMPER, AIR SHRD 2
(8A1-12659-00-00)
Unavailable
28
DAMPER, AIR SHRD 3
(8A1-12668-00-00)
Unavailable
29
DAMPER, AIR SHRD 4
(8A1-12669-00-00)
Unavailable
30
NO LONGER AVAILABLE
90201-08568-00
Unavailable
31
DAMPER, SHROUD 5
(8A1-12678-00-00)
Unavailable
