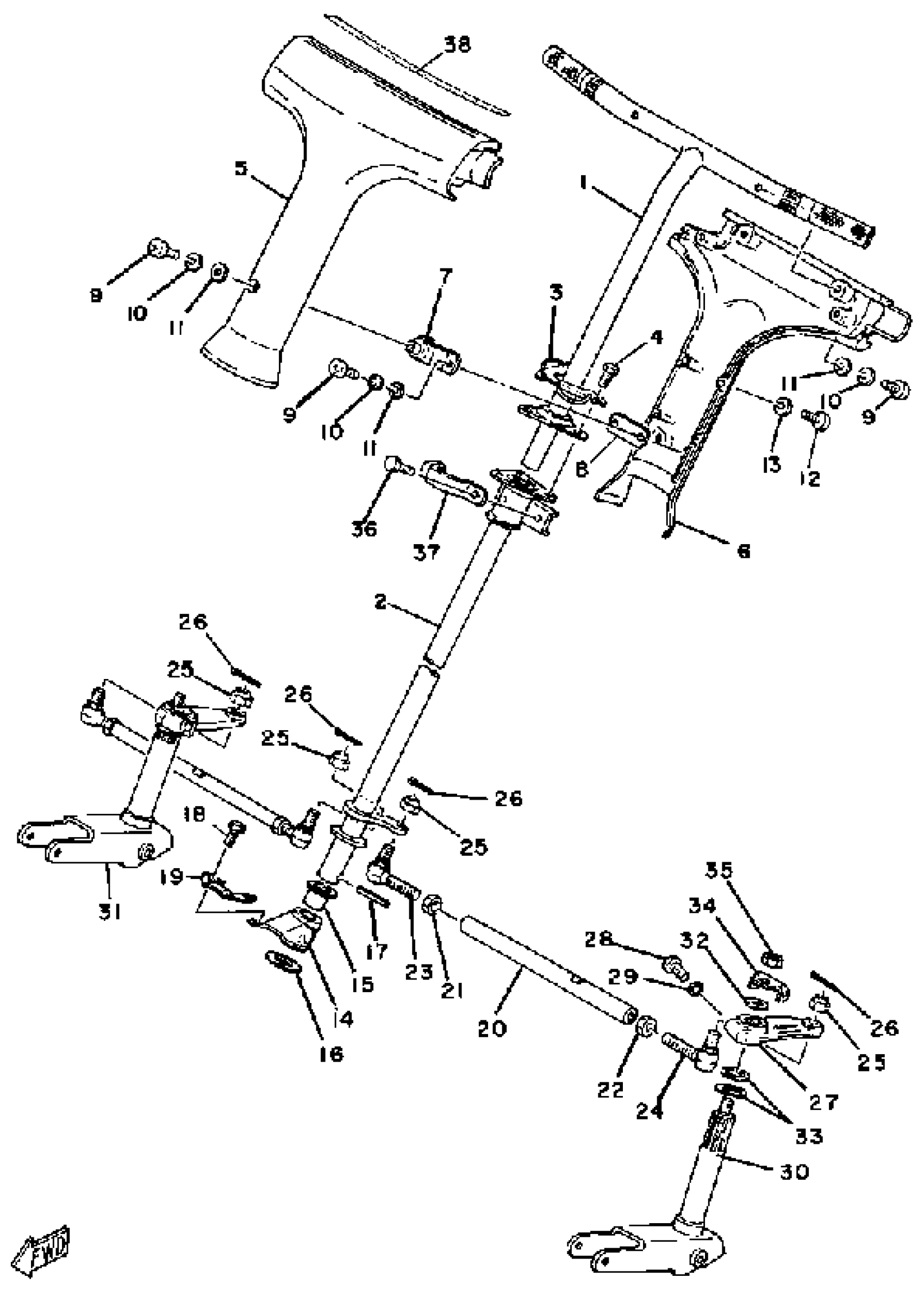

Yamaha EX440C 1979 STEERING Diagram

#

Description
Price

1

COLUMN, STEERING

8G9-23811-00-00

Unavailable

2

COLUMN, STEERING 2

8E7-23813-00-00

Unavailable

3

WASHER, LOCK 1

8A5-23894-00-00

Unavailable

4

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

5

PAD, STEERING

(8G9-23815-00-00)

Unavailable

6

PAD, STEERING

8G9-23817-00-00

Unavailable

7

BRACKET 1

8G9-23881-00-00

Unavailable

8

BRACKET 2

(8G9-23882-01-00)

Unavailable

9

SCREW, PAN

98517-05012-00

$4.73

10

WASHER(3SX)

92907-05100-00

$8.49

11

WASHER(1RW)

92907-05600-00

$3.78

12

SCREW, PAN HEAD

98517-04012-00

$3.88

13

WASHER(6TA)

92907-04100-00

$8.49

14

BRACKET, STRG LOWERLOWER

8E7-23868-00-00

Unavailable

15

BEARING, STRG LOWERLOWER

8E7-23875-00-00

Unavailable

16

BEARING, STEERING

(856-23812-00-00)

Unavailable

17

PIN, SPRING

91609-60040-00

Unavailable

18

BOLT(JA9)

90101-08691-00

Unavailable

19

WASHER, LOCK 2

(8E7-23895-00-00)

Unavailable

20

ROD, STEERING RELAY

(8H6-23821-00-00)

Unavailable

21

NUT (682)

95380-10700-00

Unavailable

22

NUT, HEXAGON (8A5)

90170-10186-00

Unavailable

23

JOINT, UNIVERSAL 1

86X-23841-00-00

Unavailable

24

JOINT, UNIVERSAL 2

86X-23845-00-00

Unavailable

25

NUT, SELF-LOCKING

90185-10017-00

Unavailable

26

PIN, COTTER

91490-20025-00

Unavailable

27

ARM, OUTSIDE 1

8G6-23851-00-00

Unavailable

28

BOLT, HEXAGON

97013-08030-00

Unavailable

29

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

30

COLUMN, SKI 1

8G6-23853-00-00

Unavailable

31

COLUMN, SKI 2

8G6-23854-00-00

Unavailable

32

WASHER, PLATE (3J6)

90201-100A1-00

Unavailable

33

WASHER, WAVE (878)

90206-20037-00

Unavailable

34

WASHER, LOCK

90215-10096-00

Unavailable

35

NUT(3BM)

95314-10600-00

Unavailable

36

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

37

WASHER, LOCK

90215-06054-00

Unavailable

38

EMBLEM

8G9-23819-00-00

Unavailable
