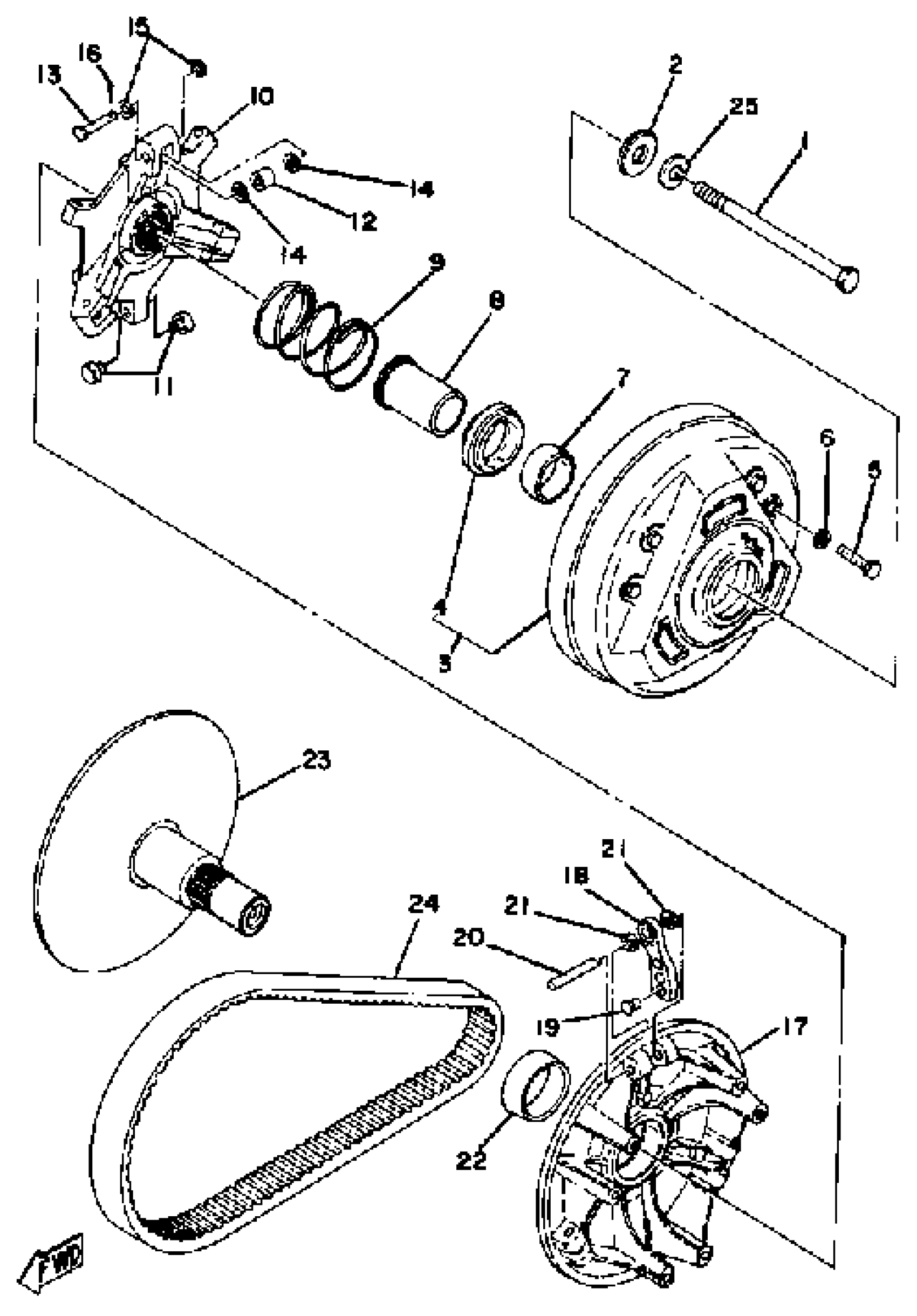

Yamaha EX440C 1979 PRIMARY SHEAVE Diagram

#

Description
Price

1

BOLT

90101-13406-00

Unavailable

2

SPACER 1

8J0-17654-00-00

Unavailable

3

PRI. SHEAVE CAP

8E7-W1762-00-00

Unavailable

4

SEAT, SPRING

8E7-17644-02-00

Unavailable

5

BOLT(JF7)

97080-06030-00

$5.49

6

WASHER, SPRING

92995-06100-00

Unavailable

7

. BUSH, SPEC''L SHAPE

90389-34019-00

Unavailable

8

COLLAR

90387-28721-00

Unavailable

9

SPRING, COMPRESSION

90501-45534-00

Unavailable

10

SPIDER

8A7-17627-00-00

Unavailable

11

SLIDER

8F2-17653-00-00

$13.49

12

COLLAR (8A7)

90387-06560-00

$7.49

13

PIN, W/HOLE (8G6)

90240-06062-00

$10.49

14

WASHER (8J0)

90202-06113-00

$4.72

15

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

16

PIN, COTTER

91490-25020-00

Unavailable

17

SHEAVE, PRI SLIDING

8E7-17621-01-00

Unavailable

18

WEIGHT 1

8G8-17632-00-00

Unavailable

19

RIVET, COUNTER SUNK (8G8)

90261-06017-00

Unavailable

20

PIN, DOWEL (8V8)

93607-44190-00

Unavailable

21

WASHER, PLATE(8E7)

90201-07641-00

Unavailable

22

BUSH, SPEC''L SHAPE

90389-41018-00

Unavailable

23

PRI. FIXED SHEAVE

8H8-W1761-00-00

Unavailable

24

V-BELT

89X-17641-01-00

Unavailable

25

CLUTCH TUNE UP KIT

(8G5-00000-50-00)

Unavailable

25

PRIMARY SHEAVE ASSEMBLY

8G6-17601-09-00

Unavailable

25

CLUTCH WEIGHT KIT

(8G8-17000-10-00)

Unavailable

25

WASHER, SPRING

90204-13010-00

Unavailable

25

TOOL

UNA-VAILA-BL-EI

Unavailable
