CRANK-PISTON

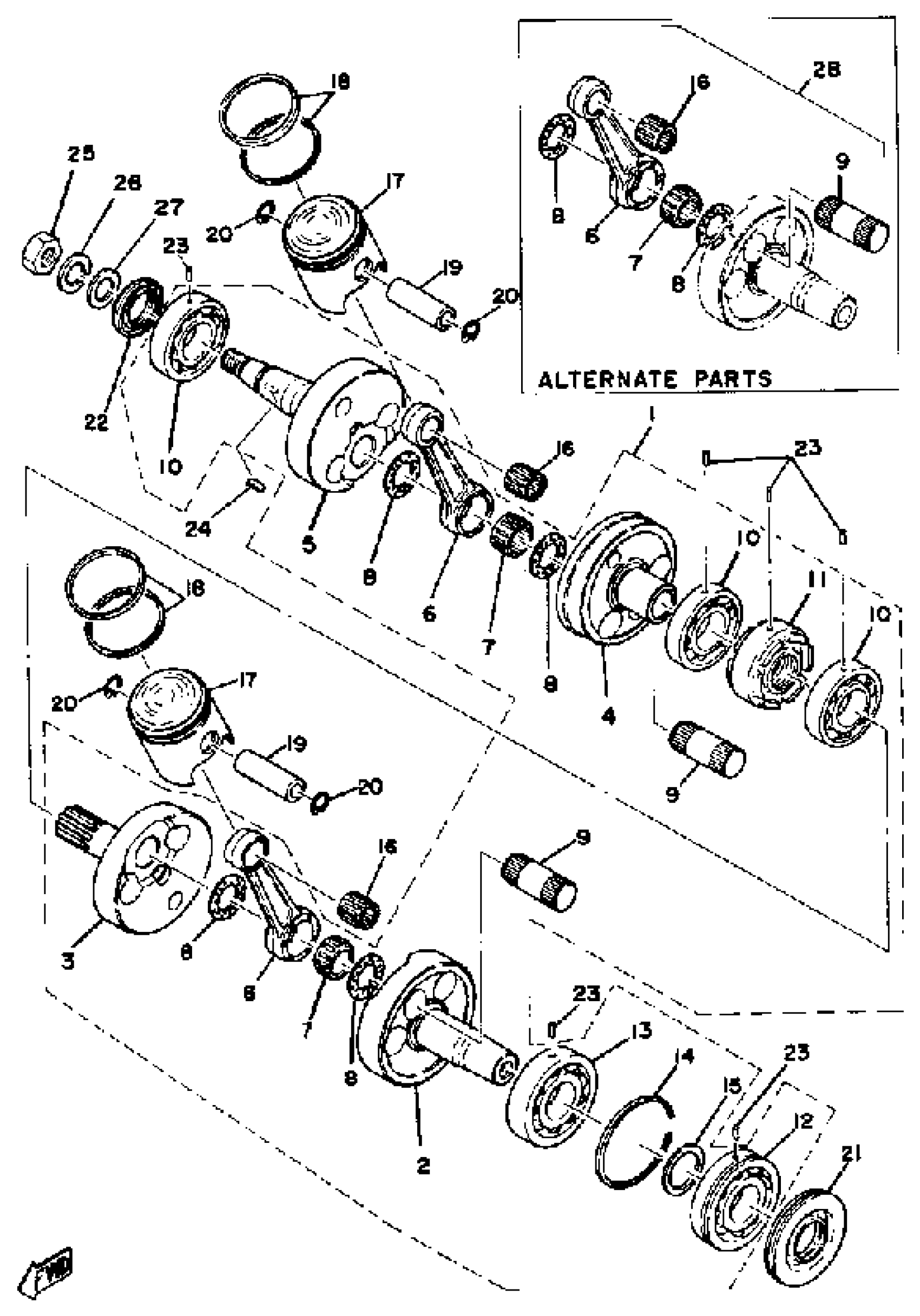

Yamaha EX440C 1979 CRANK-PISTON Diagram
#
1
CRANKSHAFT ASSEMBLY
8A5-11400-00-00
Unavailable
2
. CRANK 1
8A5-11412-00-00
Unavailable
3
CRANK 2
(821-11422-01-00)
Unavailable
4
CRANK 3
(821-11432-01-00)
Unavailable
5
CRANK 2
(821-11422-01-00)
Unavailable
6
. ROD, CONNECTING (838-11651-00)
8A7-11651-00-00
Unavailable
7
BEARING
93310-424E8-00
Unavailable
9
. PIN, CRANK 1
857-11681-00-00
Unavailable
11
. SEAL, LABYRINTH 1
8A5-11515-00-00
Unavailable
14
CIRCLIP, OUTER
93440-78011-00
Unavailable
16
BRG,CYL-CAL ROLLER 15.6G KY
93310-218A6-00
Unavailable
17
PISTON STD
8G6-11631-00-96
Unavailable
17
PISTON 1 O/S 0.25 (1ST O/S 0.25MM)
8G6-11635-00-00
Unavailable
17
PISTON 2 O/S 0.50 (2ND O/S 0.50MM)
8G6-11636-00-00
Unavailable
17
PISTON 3 O/S 0.75 (3RD O/S 0.75MM)
8G6-11637-00-00
Unavailable
17
PISTON 4 O/S 1.00 (4TH O/S 1.00MM)
8G6-11638-00-00
Unavailable
18
PISTON RINGSET STD (STD)
8G6-11601-00-00
Unavailable
18
PISTON RINGSET 1ST (1ST O/S)
8G6-11601-10-00
Unavailable
18
PISTON RINGSET 2ND (2ND O/S)
8G6-11601-20-00
Unavailable
18
PISTON RINGSET 3RD (3RD O/S)
8G6-11601-30-00
Unavailable
18
PISTON RINGSET 2ND (4TH O/S)
8G6-11601-40-00
Unavailable
19
PIN, PISTON
818-11633-00-00
Unavailable
20
CLIP 6041163400
93450-20026-00
Unavailable
21
OIL SEAL (878).
93103-32095-00
Unavailable
22
OIL SEAL(83R)
93103-32156-00
Unavailable
23
PIN,DOWEL (168)
93604-12037-00
Unavailable
24
KEY, WOOD RUFF (324)
90280-05014-00
Unavailable
25
NUT
90170-16425-00
Unavailable
26
WASHER(JN5)
92907-16100-00
Unavailable
27
WASHER, PLATE (32N)
90201-163G6-00
Unavailable
